Mitutoyo Digital ABS AOS Caliper – Series 500 – 0-100mm, Rod, w/o Data Output
"Email us for pricing at sales@inosaki.com!"
Description: Mitutoyo Digital ABS AOS Caliper, Manufacturer Part Number 500-180-30
These Digimatic calipers allow you to take reliable measurements and offer you the following benefits:
- Now equipped with the same AOS (Advanced Onsite Sensor) induction type encoder used in top-of-the-line ABS coolant-proof calipers.
- Thanks to the adoption of the electromagnetic induction type ABS encoder, this caliper can be used without concern for contamination on the scale face during measurement. Detection signal is not affected by dirt (water, oil, etc.) on surface of a scale (except 300mm type).
- The slider provides smooth, stable and comfortable operation.
- Character height: 9mm (alleviation of fatigue with the high-contrast LCD)
- The ABS (ABSOLUTE) scale requires no origin setting after power-on and also has no limit to response speed.
- Extraordinary battery life
Mitutoyo Digital ABS AOS Caliper Feature:
[fusion_table fusion_table_type=”1″ fusion_table_rows=”” fusion_table_columns=”” margin_top=”1 ps” margin_right=”1 ps” margin_bottom=”1 ps” margin_left=”1 ps” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” class=”” id=”” animation_type=”” animation_direction=”left” animation_color=”” hue=”” saturation=”” lightness=”” alpha=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]
| Range: |
0 – 100 mm
|
| Depth bar: |
Ø 1.9 mm
|
| Data output: |
No
|
| Max. Permissible Error E MPE: |
±0,02 mm
|
| Max. Permissible Error S MPE: |
±0,04 mm
|
| Digital step: |
0,01 mm
|
| Max. response speed: |
Unlimited
|
| Display: |
LCD, character height 9 mm (150, 200 mm) 11 mm (300 mm)
|
| Delivered: |
In a case, including 1 SR-44 battery
|
| ORIGIN (ABS-Zero): |
Yes
|
| ON/OFF: |
Yes
|
| ABS / INC (INC ZERO): |
Yes
|
| Low voltage alarm: |
Yes
|
| Battery life: |
Approx. 5 years under normal use
|
| Mass: |
143 g
|
[/fusion_table]

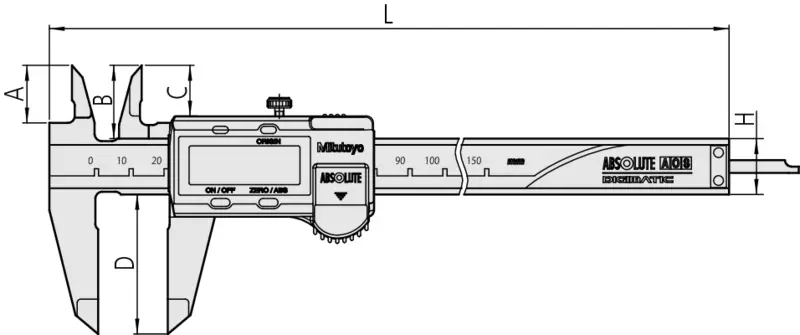

Mitutoyo Digital ABS AOS Caliper Dimensions
| A: |
16.5 mm
|
| B: |
21 mm
|
| C: |
14.5 mm
|
| D: |
40 mm
|
| H: |
16 mm
|
Variants
All products of product family Series 500:
 |
Digital ABS AOS Caliper |
| 0-100mm, Rod, w/o Data Output | |
| Mitutoyo Digital ABS AOS Caliper Part Number: 500-180-30 | |
| More Info | |
 |
Digital ABS AOS Caliper |
| Inch/Metric, 0-6″, Blade, Data Output | |
| Mitutoyo Digital ABS AOS Caliper Part Number: 500-202-30 | |
| For more : sales@inosaki.my |
Accessories
Optional accessories:
 |
Digimatic Cable, Straight, Data Button, |
| 1m | |
| 959149 | |
| More Info | |
|
Digimatic Cable, Straight, Data Button, |
| 2m | |
| 959150 | |
| More Info | |
 |
USB Input Tool Direct (Digimatic USB) |
| Digi/Digi2, Straight, with Data Button | |
| 06AFM380C | |
| More Info | |
 |
U-WAVE fit, IP67 Type |
| Wireless Transmitter for Caliper | |
| 264-620 | |
| For more : sales@inosaki.my | |
 |
U-WAVE fit, Buzzer Type (not IP rated) |
| Wireless Transmitter for Caliper | |
| 264-621 | |
| For more : sales@inosaki.my | |
 |
U-WAVE fit Bluetooth, IP67 Type |
| Wireless Transmitter for Caliper | |
| 264-624 | |
| For more : sales@inosaki.my | |
|
U-WAVE fit Bluetooth, Buzzer Type (not IP rated) |
| Wireless Transmitter for Caliper | |
| 264-625 | |
| For more : sales@inosaki.my | |
 |
Connection Unit, U-WAVE fit |
| Standard Type | |
| 02AZF300 | |
| For more : sales@inosaki.my | |
 |
Data Hold Unit |
| 959143 | |
| For more : sales@inosaki.my | |
 |
Depth Base Attachment for Caliper, 75mm width |
| 75mm width for 100, 150, 200mm Range | |
| 050083-10 | |
| For more : sales@inosaki.my | |
 |
Depth Base Attachment for Caliper |
| 100mm width for 100, 150, 200mm Range | |
| 050084-10 | |
| For more : sales@inosaki.my |
Spare parts
Consumable spares:
 |
Battery SR44 1.5V |
| 938882 | |
| For more : sales@inosaki.my |
| Weight | 0.143 kg |
|---|
