Description: Mitutoyo Dial Height Gauge, Manufacturer Part Number 192-130

A Mitutoyo dial/mechanical-digit-counter height gauge, twin column design. Two separate counters provide independently settable up/down measurement capability, with the dial gauge indicating the last decimal fractions.

Mitutoyo Dial Height Gauge Features:

[fusion_table fusion_table_type=”1″ fusion_table_rows=”” fusion_table_columns=”” margin_top=”1 ps” margin_right=”1 ps” margin_bottom=”1 ps” margin_left=”1 ps” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” class=”” id=”” animation_type=”” animation_direction=”left” animation_color=”” hue=”” saturation=”” lightness=”” alpha=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]

Digital/Analog:	Analog
Range:	0 – 300 mm
Digital step:	0,01 mm
Graduation:	0,01 mm
Max. Permissible Error E MPE:	±0,03 mm
Maximum Permissible Error J MPE:	±0,03 mm
Inch-Metric:	Metric
Delivered:	Including scriber, scriber clamp and cover
Mass:	4.2 kg

[/fusion_table]

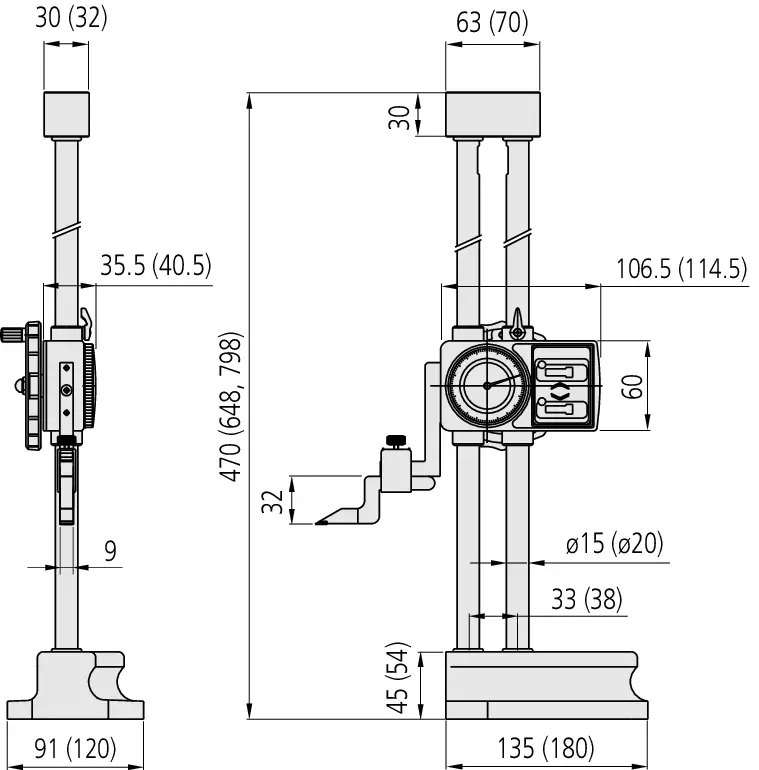

Mitutoyo Dial Height Gauge Dimensions

Variants

All products of product family Series 192:

	Dial Height Gauge, Digital Counter
	0-450mm
	Mitutoyo Dial Height Gauge Part Number: 192-131
	For more : sales@inosaki.my
	Dial Height Gauge, Digital Counter
	0-600mm
	Mitutoyo Dial Height Gauge Part Number: 192-132
	For more : sales@inosaki.my
	Dial Height Gauge, Digital Counter
	0-1000mm
	Mitutoyo Dial Height Gauge Part Number: 192-133
	For more : sales@inosaki.my
	Dial Height Gauge, Digital Counter
	0-12″
	Mitutoyo Dial Height Gauge Part Number: 192-150
	For more : sales@inosaki.my
	Dial Height Gauge, Digital Counter
	0-18″
	Mitutoyo Dial Height Gauge Part Number: 192-151
	For more : sales@inosaki.my
	Dial Height Gauge, Digital Counter
	0-24″
	Mitutoyo Dial Height Gauge Part Number: 192-152
	For more : sales@inosaki.my
	Dial Height Gauge, Digital Counter
	0-40″
	Mitutoyo Dial Height Gauge Part Number: 192-153
	For more : sales@inosaki.my

Accessories

Optional accessories:

	Center Master
	for 9x9mm
	951144
	For more : sales@inosaki.my
	Depth Gauge Attachment
	for 9×9 mm
	900764
	For more : sales@inosaki.my
	Contact Sensor
	for Height Gauges
	900872
	For more : sales@inosaki.my
	Holding Bar for Swivel Clamp
	9x9mm, 50mm Length
	953638
	For more : sales@inosaki.my
	Holding Bar for Swivel Clamp
	9x9mm, 100mm Length
	900209
	For more : sales@inosaki.my
	Swivel Clamp
	for Ø6/8mm, Dovetail
	902053
	For more : sales@inosaki.my
