Features
- 6th/7th Gen Intel® platform (formerly Skylake/Kaby Lake), Core™ U series
processor - Intelligent eKit with AI function to monitor system health via DDM
- Special Power Design:
Wide voltage 9~36V DC input
RVP/OVP/UVP/OCP support
Surge protection: 80V/1ms
Power ignition control - Easy Expansion & Installation:
Remote on/off power switch with LED
Easily replaceable RTC battery holder
2x SIM push-push slots

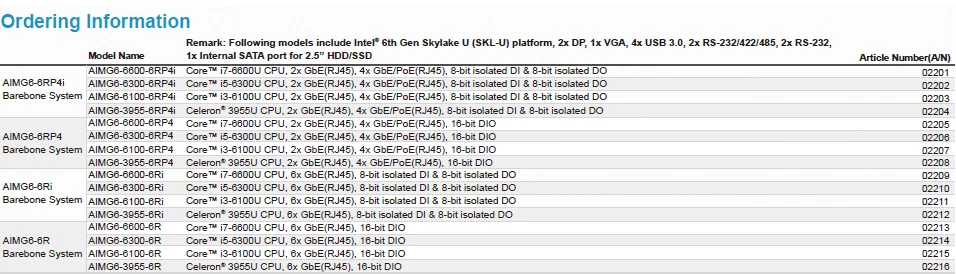

Specifications
| System | |
| 6th Gen Intel® Core™ (formerly Skylake U-Series) |
Core™ i7-6600U (2/4 Cores, 2.6 GB/3.4 GHz, 4M Cache, 15W TDP) |
| Core™ i5-6300U (2/4 Cores, 2.4 GHz/3.0 GHz, 3M Cache, 15W TDP) | |
| Core™ i3-6100U (2/4 Cores, 2.3 GHz, 3M Cache, 15W TDP) | |
| Celeron® 3955U (2/2 Cores, 2.0 GHz, 2M Cache, 15W TDP) | |
| 7th Gen Intel® Core™ (formerly Kaby Lake U-Series) | Core™ i7-7600U (2/4 Cores, 2.8 GB/3.9 GHz, 4M Cache, 15W TDP) |
| Core™ i5-7300U (2/4 Cores, 2.6 GHz/3.5 GHz, 3M Cache, 15W TDP) | |
| Core™ i3-7100U (2/4 Cores, 2.4 GHz, 3M Cache, 15W TDP) | |
| Celeron® 3965U (2/2 Cores, 2.2 GHz, 2M Cache, 15W TDP) | |
| Memory | 1x SO-DIMM DDR4 2133 (32GB Max.) |
| Graphic | Intel® HD Graphics 510 (3955U) |
| Intel® HD Graphics 520 (Skylake) | |
| Intel® HD Graphics 610 (3965U) | |
| Intel® HD Graphics 620 (Kaby Lake) | |
| BIOS | AMI 128Mbit SPI BIOS |
| AI Controller (AIC) | AI for system monitoring and predictive analysis |
| Watchdog Timer | Runtime: 10 – 65535 seconds |
| Powerup: 120 – 65535 seconds | |
| TPM (optional) | SLB9665 (TPM 2.0) / SLB9635 (TPM 1.2) |
| Power | |
| DC Input | 9~36VDC |
| Surge Protection | 80V/1ms |
| Power in Protection | Reverse-Voltage, Over-Voltage, Under-Voltage, Over-Current |
| Remote/Ignition | 1x ATX power on/off switch, 5-pin terminal block including 3-pin remote control and 2-pin ignition signals (pitch 3.81 mm) |
| Power Mode | AT/ATX (BIOS setting) |
| Mechanical | |
| Dimensions (W x D x H) | 161(W) x 130(D) x 68.1(H) mm (6.34″ x 5.12″ x 2.68″) |
| Weight (net/gross) | 1.7kg |
| Mounting | Wall mount bracket, foot stand |
| Construction | Aluminum and metal chassis with fanless design |
| Battery | Easily replaceable RTC battery holder |
| Dynamic Display Module (DDM) |
0.96 inch LCM work with AIC to display system status |

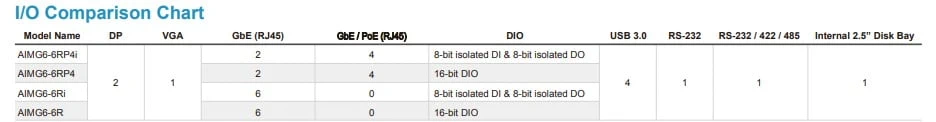

| External IO | |
| Display Ports / Resolution |
2x DP 4096×2304@60Hz |
| 1x VGA/1920×1200@60Hz | |
| Triple Display Ports | 2x DP + 1x VGA |
| Ethernet | 2x RJ45 GbE (1x Intel®i219 + 1x Intel®i210) / Wake-on-LAN and PXE / i219 supports iAMT 11.0 (AIMG-6RP4i, AIMG-6RP4) |
| 6x RJ45 GbE (1x Intel®i219 + 5x Intel®i210) / Wake-on-LAN and PXE / i219 supports iAMT 11.0 (AIMG-6Ri, AIMG-6R) |
|
| PoE (optional) | 4x RJ45 GbE (Intel®i210) PoE+ 802.3at support up to 30W (AIMG-6RP4i, AIMG-6RP4) |
| USB 3.0/2.0 | 4x USB 3.0 ports via native XHCI controller (0.9A each port) |
| COM | 1x RS-232/422/485 (auto flow control), 1x RS-232 port |
| Digital I/O | 16-bit programmable DIO (AIMG-6RP4, AIMG-6R) 8-bit isolated DI & 8-bit isolated DO, Sink/Source Mode, 5~48V, 100mA |
| (AIMG-6RP4i, AIMG-6Ri) | |
| Audio | ALC892 HD Audio Codec, Mic in, Line out |
| SIM | 2x SIM push-push slots |
| Storage | |
| Internal Drive Bay | 1x Internal SATA port for 2.5” HDD/SSD |
| mSATA | 1x mSATA (muxed with Mini-PCIe) |
| M.2 | 1x M.2 M Key 2242 |
| Expansion slot | |
| Mini-PCIe | 1x full length Mini-PCIe (PCIe/mSATA + USB + USIM) |
| 1x full length Mini-PCIe (PCIe + USB + USIM) | |
| Other | |
| USB 2.0 Dongle | Internal 1x USB 2.0 for dongle security key |
| Antenna | 4x antenna openings |
| LED | Power status, HDD status, IO status |
| Environment | |
| Operating Temperature | Standard: -20°C to 50°C (-4°F~122°F), supports 15W TDP CPU |
| Extended temperature: -25°C to 70°C (-13°F~158°F) (For more information, please contact your representative) |
|
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 95% @ 40°C (104°F), non-condensing |
| Vibration During Operation (IEC60068-2-64: Random 5~500Hz) |
5Grms with SSD |
| Shock During Operation (IEC60068-2-27: Half Sine, 11ms Duration) |
50Grms with SSD |
| Certification | |
| EMC | CE/FCC Class A |
| Safety Certifications | CB |
| OS Support | |
| Optional OS Installation | Windows 7 32-bit/64-bit (Skylake only) |
| Windows 8.1 32-bit/64-bit (Skylake only) | |
| Windows Embedded Standard 7(Skylake only) | |
| Windows Embedded 8 Standard (Skylake only) | |
| Windows 10 64-bit | |
| Windows 10 IoT | |
| Linux |
