| Unit type |
Product name |
Specifications | No. of words allo- cated |
Current consump- tion (A) |
Model | Stand- ards |
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Output type |
I/O points |
Maximum switching capacity |
Commons | External con- nection |
5 V | 24 V | |||||
| CJ1 Basic I/O Units |
Relay Contact Output Units |
— | 8 outputs |
250 VAC/ 24 VDC, 2 A |
Inde- pendent contacts |
Removable terminal block |
1 words |
0.09 | 0.048 max. |
CJ1W-OC201 | UC1, N, L, CE |
| — | 16 outputs |
250 VAC/ 24 VDC, 2 A |
16 points, 1 common |
Removable terminal block |
1 words |
0.11 | 0.096 max. |
CJ1W-OC211 | |||
| Triac Output Unit |
— | 8 outputs |
250 VAC, 0.6 A |
8 points, 1 common |
Removable terminal block |
1 words |
0.22 | — | CJ1W-OA201 | ||
| Tran- sistor Output Units |
Sinking | 8 outputs |
12 to 24 VDC, 2 A |
4 points, 1 common |
Removable terminal block |
1 words |
0.09 | — | CJ1W-OD201 | ||
| Sinking | 8 outputs |
12 to 24 VDC, 0.5 A |
8 points, 1 common |
Removable terminal block |
1 words |
0.10 | — | CJ1W-OD203 | |||
| Sinking | 16 outputs |
12 to 24 VDC, 0.5 A |
16 points, 1 common |
Removable terminal block |
1 words |
0.10 | — | CJ1W-OD211 | |||
| Sinking | 16 outputs (High speed) |
24 VDC, 0.5 A |
16 points, 1 common |
Removable terminal block |
1 words |
0.15 | — | CJ1W-OD213 | N, L, CE |
||
| Sinking | 32 outputs |
12 to 24 VDC, 0.5 A |
16 points, 1 common |
Fujitsu/ OTAX connector |
2 words |
0.14 | — | CJ1W-OD231 | UC1, N, L, CE |
||
| Sinking | 32 outputs |
12 to 24 VDC, 0.5 A |
16 points, 1 common |
MIL connector |
2 words |
0.14 | — | CJ1W-OD233 | |||
| Sinking | 32 outputs (High speed) |
24 VDC, 0.5 A |
16 points, 1 common |
MIL connector |
2 words |
0.22 | — | CJ1W-OD234 | N, L, CE |
||
| Sinking | 64 outputs |
12 to 24 VDC, 0.3 A |
16 points, 1 common |
Fujitsu/ OTAX connector |
4 words |
0.17 | — | CJ1W-OD261 | UC1, N, L, CE |
||
| Sinking | 64 outputs |
12 to 24 VDC, 0.3 A |
16 points, 1 common |
MIL connector |
4 words |
0.17 | — | CJ1W-OD263 | |||
| Sourcing | 8 outputs |
24 VDC, 2 A Short- circuit protection |
4 points, 1 common |
Removable terminal block |
1 words |
0.11 | — | CJ1W-OD202 | |||
| Sourcing | 8 outputs |
24 VDC, 0.5 A Short- circuit protection |
8 points, 1 common |
Removable terminal block |
1 words |
0.10 | — | CJ1W-OD204 | |||

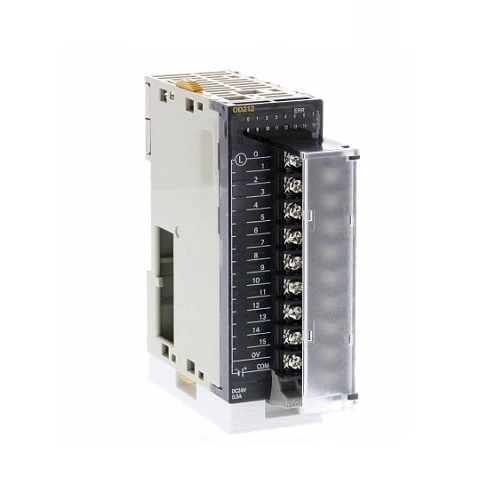

| Sourcing | 16 outputs |
24 VDC, 0.5 A Short- circuit protection |
16 points, 1 common |
Removable terminal block |
1 words |
0.10 | — | CJ1W-OD212 | |||

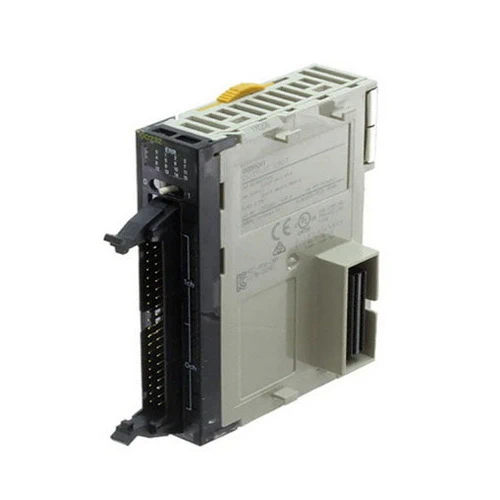

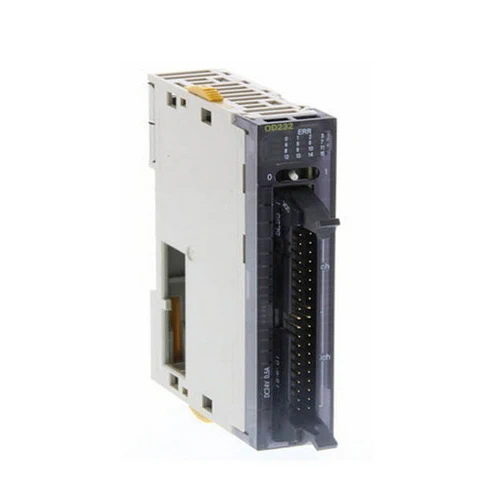

| Sourcing | 32 outputs |
24 VDC, 0.5 A Short- circuit protection |
16 points, 1 common |
MIL connector |
2 words |
0.15 | — | CJ1W-OD232 | |||
| Sourcing | 64 outputs |
12 to 24 VDC, 0.3 A |
16 points, 1 common |
MIL connector |
4 words |
0.17 | — | CJ1W-OD262 | |||
