| Main | ||

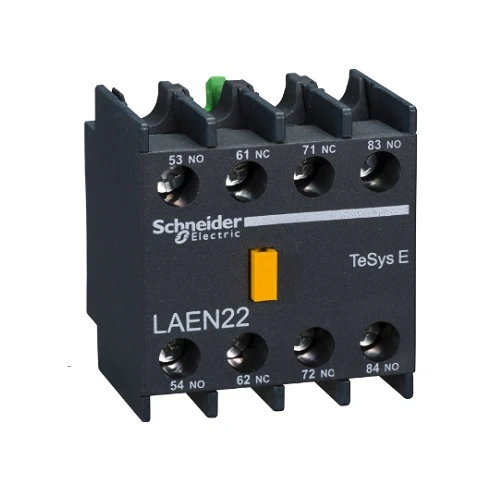

| Part Number | LAEN11 | LAEN22 |
| Range | EasyPact | EasyPact |
| device short name | LAEN | LAEN |
| Product or component type | Auxiliary contact block | Auxiliary contact block |
| Device application | Signalling | Signalling |
| Colour | Grey (RAL 7011) | Grey (RAL 7011) |
| Complementary | ||
| Range compatibility | EasyPact (EasyPact TVS) LC1E | EasyPact (EasyPact TVS) LC1E |
| Mounting location | Front | Front |
| Auxiliary contacts operation | Instantaneous | Instantaneous |
| Pole contact composition | 1 NO + 1 NC | 2 NO + 2 NC |
| [Ui] rated insulation voltage | 690 V – for control circuit conforming to IEC 60947-5-1 | 690 V – for control circuit conforming to IEC 60947-5-1 |
| [Ue] rated operational voltage | <= 690 V | <= 690 V |
| [Ith] conventional free air thermal current | 8 A (at 60 °C) | 8 A (at 60 °C) |
| Irms rated making capacity | 140 A AC conforming to IEC 60947-5-1 | 140 A AC conforming to IEC 60947-5-1 |
| [Icw] rated short-time withstand current | 100 A – 1 s | 100 A – 1 s |
| 120 A – 500 ms | 120 A – 500 ms | |
| 140 A – 100 ms | 140 A – 100 ms | |
| Protection type | GG fuse 10 A | GG fuse 10 A |
| Mechanical durability | 10 Mcycles | 10 Mcycles |
| Minimum switching current | 5 mA | 5 mA |
| minimum switching voltage | 17 V | 17 V |
| Non-overlap time | 1.5 ms on energisation no overlap between NC and NO contact | 1.5 ms on energisation no overlap between NC and NO contact |
| 1.5 ms on de-energisation no overlap between NC and NO contact | 1.5 ms on de-energisation no overlap between NC and NO contact | |
| Insulation resistance | > 10 MOhm | > 10 MOhm |
| Connections – terminals | Control circuit: screw clamp terminals 1 1 mm² – external diameter: 6 mm – cable stiffness: solid or flexible with cable end | Control circuit: screw clamp terminals 1 1 mm² – external diameter: 6 mm – cable stiffness: solid or flexible with cable end |
| Control circuit: screw clamp terminals 1 1 mm² – external diameter: 6 mm – cable stiffness: solid or flexible without cable end | Control circuit: screw clamp terminals 1 1 mm² – external diameter: 6 mm – cable stiffness: solid or flexible without cable end | |
| Control circuit: screw clamp terminals 2 2.5 mm² – external diameter: 6 mm – cable stiffness: solid or flexible with cable end | Control circuit: screw clamp terminals 2 2.5 mm² – external diameter: 6 mm – cable stiffness: solid or flexible with cable end | |
| Control circuit: screw clamp terminals 2 2.5 mm² – external diameter: 6 mm – cable stiffness: solid or flexible without cable end | Control circuit: screw clamp terminals 2 2.5 mm² – external diameter: 6 mm – cable stiffness: solid or flexible without cable end | |
| Product weight | 0.035 kg | 0.06 kg |
| Environment | ||
| Environmental characteristic | Standard environment | Standard environment |
| Standards | IEC 60947-5-1 | IEC 60947-5-1 |
| Product certifications | GOST | GOST |
| IP degree of protection | IP20 conforming to IEC 60529 | IP20 conforming to IEC 60529 |
| Protective treatment | TH conforming to IEC 60068 | TH conforming to IEC 60068 |
| Ambient air temperature for operation | -5…55 °C | -5…55 °C |
| Ambient air temperature for storage | -60…80 °C | -60…80 °C |
| Operating altitude | 3000 m without derating | 3000 m without derating |
| Packing Units | ||
| Unit Type of Package 1 | PCE | PCE |
| Number of Units in Package 1 | 1 | 1 |
| Package 1 Height | 3.1 cm | 4.3 cm |
| Package 1 Width | 4.8 cm | 6.9 cm |
| Package 1 Length | 7.1 cm | 7.2 cm |
| Package 1 Weight | 34.0 g | 61.0 g |
| Unit Type of Package 2 | S02 | S02 |
| Number of Units in Package 2 | 100 | 72 |
| Package 2 Height | 15.0 cm | 15.0 cm |
| Package 2 Width | 30.0 cm | 30.0 cm |
| Package 2 Length | 40.0 cm | 40.0 cm |
| Package 2 Weight | 3.751 kg | 4.71 kg |
| Contractual warranty | ||
| Warranty | 18 months | 18 months |
