Specification

[fusion_table fusion_table_type=”1″ fusion_table_rows=”” fusion_table_columns=”” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” class=”” id=”” animation_type=”” animation_direction=”left” animation_color=”” hue=”” saturation=”” lightness=”” alpha=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]

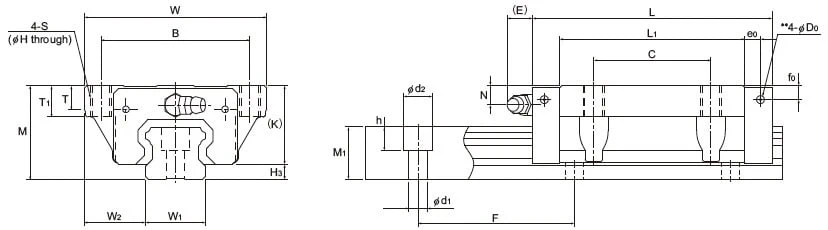

Model No. Dimensions Basic load rating
Overall Block Rail Radial
Height Width Length B C S H Pitch d1xd2xh Dynamic Static
M W L F C (kN) C0 (kN)
SHS15C 24 47 64.4 38 30 M5 4.4 60 4.5×7.5×5.3 14.2 24.2
SHS20C 30 63 79 53 40 M6 5.4 60 6×9.5×8.5 22.3 38.4
SHS25C 36 70 92 57 45 M8 6.8 60 7x11x9 31.7 52.4
SHS30C 42 90 106 72 52 M10 8.5 80 9x14x12 44.8 66.6
SHS35C 48 100 122 82 62 M10 8.5 80 9x14x12 62.3 96.6
SHS45C 60 120 140 100 80 M12 10.5 105 14x20x17 82.8 126
SHS55C 70 140 171 116 95 M14 12.5 120 16x23x20 128 197
SHS65C 90 170 221 142 110 M16 14.5 150 18x26x22 205 320

[/fusion_table]



Model Number Coding

[fusion_table fusion_table_type=”1″ fusion_table_rows=”” fusion_table_columns=”” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” class=”” id=”” animation_type=”” animation_direction=”left” animation_color=”” hue=”” saturation=”” lightness=”” alpha=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]

Model Size Block Type Block Code*1 Seal Type*2 Radial Clearance*3
SHS 20 C 1 SS C1 BLOCK
SHS 15 C 1 SS No Symbol: Normal
20 V C1: Light Preload
25 R
30 LC
35 LV
45 LR
55
65



Note 1: This number is always 1 for interchangeable blocks

Note 2: Contamination protection seal SS is standard for Model SHS SS = end seals + side seals + inner seals

Note 3: Radial Clearance

units: µm
Size Normal Light Preload
15 -5 to 0 -12 to -5
20 -6 to 0 -12 to -6
25 -8 to 0 -14 to -8
30 -9 to 0 -17 to -9
35 -11 to 0 -19 to -11
45 -12 to 0 -22 to -12
55 -15 to 0 -28 to -16
65 -18 to 0 -34 to -22

[/fusion_table]

Dimensions N/A
Model

SHS 15C, SHS 20C, SHS 25C, SHS 30C, SHS 35C, SHS 45C
