| Main information |
| Part Number |
HMIGXU3500 |

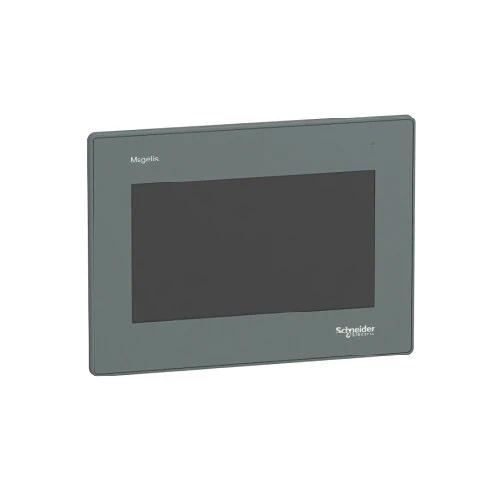

HMIGXU3512 |

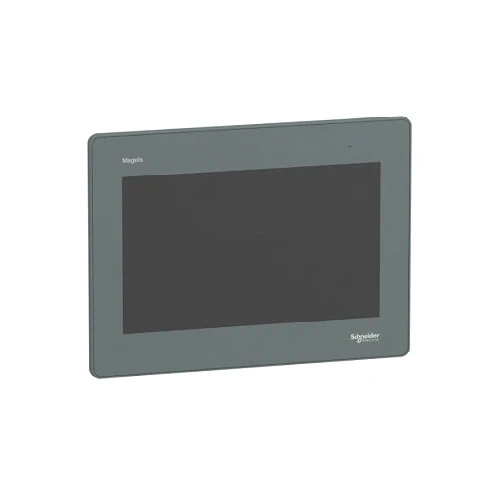

HMIGXU5500 |

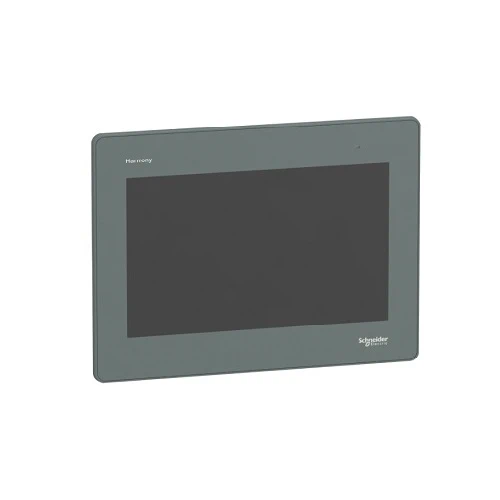

HMIGXU5512 |
| Product Series |
Harmony Easy GXU |
Harmony Easy GXU |
Harmony Easy GXU |
Harmony Easy GXU |
| product type |
Advanced Touch Screen Panel |
Advanced Touch Screen Panel |
Advanced Touch Screen Panel |
Advanced Touch Screen Panel |
| display type |
LCD touch screen |
LCD touch screen |
LCD touch screen |
LCD touch screen |
| display color |
65536 colors |
65536 colors |
65536 colors |
65536 colors |
| monitor resolution |
WVGA800 x 480 pixels |
WVGA800 x 480 pixels |
WVGA800 x 480 pixels |
WVGA800 x 480 pixels |
| monitor size |
7 inches |
7 inches |
10.1 inches |
10.1 inches |
| Additional information |
| Backlight life |
20000 hours |
20000 hours |
20000 hours |
20000 hours |
| Rated supply voltage [Us] |
24 V DC |
24 V DC |
24 V DC |
24 V DC |
| software license |
Vijeo Designer Basic configuration software |
Vijeo Designer Basic configuration software |
Vijeo Designer Basic configuration software |
Vijeo Designer Basic configuration software |
| memory description |
Internal, 32 MB for application |
Internal, 48 MB for application |
Internal, 32 MB for application |
Internal, 48 MB for application |
| Internal DDR, 128 MB |
Internal DDR, 128 MB |
Internal DDR, 128 MB |
Internal DDR, 128 MB |
| Internal, 128 kB for backup |
Internal, 128 kB for backup |
Internal, 128 kB for backup |
Internal, 128 kB for backup |
| Integrated connection type |
COM1 serial link: SUB-D 9-way referendum connector, RS422/RS485 protocol |
Mini-B type USB |
COM1 serial link: SUB-D 9-way referendum connector, RS422/RS485 protocol |
Mini-B type USB |
| Mini-B type USB |
COM1 serial link: SUB-D 9-way referendum connector, RS232C protocol |
Mini-B type USB |
COM1 serial link: SUB-D 9-way referendum connector, RS232C protocol |
|
|
COM2 serial link: SUB-D 9-way referendum connector, RS422/RS485 protocol |
|
COM2 serial link: SUB-D 9-way referendum connector, RS422/RS485 protocol |
|
|
USB (Type-A) |
|
USB (Type-A) |
|
|
Ethernet10/100MB self-adaptive |
|
Ethernet10/100MB self-adaptive |
| Cutout Size |
190x135mm |
190x135mm |
255x185mm |
255x185mm |
| Environment |
| quality mark |
CE declaration |
CE declaration |
CE declaration |
CE declaration |
| operating temperature |
0…50°C |
0…50°C |
0…50°C |
0…50°C |
| storage ambient temperature |
-20…60°C |
-20…60°C |
-20…60°C |
-20…60°C |
| IP protection class |
“IP65” (front panel) |
“IP65” (front panel) |
“IP65” (front panel) |
“IP65” (front panel) |
| Packaging unit |
| Unit Type of Package 1 |
PCE |
PCE |
PCE |
PCE |
| Number of Units in Package 1 |
1 |
1 |
1 |
1 |
| Package 1 Height |
9.166 cm |
9.163 cm |
9.2 cm |
9.4 cm |
| Package 1 Width |
18.001 cm |
18.024 cm |
23.7cm |
23.9 cm |
| Package 1 Length |
25.741 cm |
25.544 cm |
32.6 cm |
32.4 cm |
| Package 1 Weight |
881g |
910g |
1.48kg |
1.5 kg |
| Unit Type of Package 2 |
S04 |
S04 |
S04 |
S04 |
| Number of Units in Package 2 |
12 |
12 |
7 |
7 |
| Package 2 Height |
30cm |
30cm |
30cm |
30cm |
| Package 2 Width |
40cm |
40cm |
40cm |
40cm |
| Package 2 Length |
60cm |
60cm |
60cm |
60cm |
| Package 2 Weight |
11585.5g |
11747g |
11256.5g |
11398g |
| Unit Type of Package 3 |
P12 |
P12 |
P12 |
P12 |
| Number of Units in Package 3 |
144 |
144 |
84 |
84 |
| Package 3 Height |
95cm |
95cm |
95cm |
95cm |
| Package 3 Width |
80cm |
80cm |
80cm |
80cm |
| Package 3 Length |
120cm |
120cm |
120cm |
120cm |
| Package 3 Weight |
148026g |
149964g |
144078g |
145776g |
| Contract warranty |
| Warranty |
18 months |
18 months |
18 months |
18 months |
