| Main |
| Part Number |
HMISCU6A5 |
HMISCU6B5 |
HMISCU8B5 |

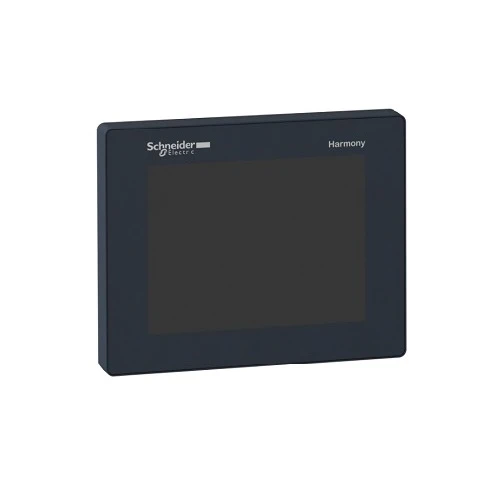

HMISCU8A5 |
| Range of product |
Harmony SCU |
Harmony SCU |
Harmony SCU |
Harmony SCU |
| Product or component type |
Small touch HMI controller |
Small touch HMI controller |
Small touch HMI controller |
Small touch HMI controller |
| Display size |
3.5 inch |
5.7 inch |
3.5 inch |
5.7 inch |
| display type |
With backlit LED colour TFT LCD |
With backlit LED colour TFT LCD |
With backlit LED colour TFT LCD |
With backlit LED colour TFT LCD |
| Touch panel |
Analogue |
Analogue |
Analogue |
Analogue |
| Device presentation |
Complete product |
Complete product |
Complete product |
Complete product |
| Complementary |
| Display resolution |
320 x 240 pixels QVGA |
320 x 240 pixels QVGA |
320 x 240 pixels QVGA |
320 x 240 pixels QVGA |
| backlight lifespan |
50000 hours with 65000 colours |
50000 hours with 65000 colours |
50000 hours with 65000 colours |
50000 hours with 65000 colours |
| Brightness |
16 levels via touch panel |
16 levels via touch panel |
16 levels via touch panel |
16 levels via touch panel |
| view angle horiz x vert |
60° left |
60° left |
60° left |
60° left |
| 60° right |
60° right |
60° right |
60° right |
| 40° top |
40° top |
40° top |
40° top |
| 60° bottom |
60° bottom |
60° bottom |
60° bottom |
| Character font |
Chinese (simplified Chinese) |
Chinese (simplified Chinese) |
Japanese (ANK, Kanji) |
Taiwanese (traditional Chinese) |
| ASCII |
Japanese (ANK, Kanji) |
ASCII |
ASCII |
| Taiwanese (traditional Chinese) |
ASCII |
Taiwanese (traditional Chinese) |
Korean |
| Korean |
Korean |
Korean |
Japanese (ANK, Kanji) |
| Japanese (ANK, Kanji) |
Taiwanese (traditional Chinese) |
Chinese (simplified Chinese) |
Chinese (simplified Chinese) |
| Supply |
External source |
External source |
External source |
External source |
| [Us] rated supply voltage |
24 V (20.4…28.8 V)DC |
24 V (20.4…28.8 V)DC |
24 V (20.4…28.8 V)DC |
24 V (20.4…28.8 V)DC |
| Immunity to microbreaks |
10 ms |
10 ms |
10 ms |
10 ms |
| Inrush current |
30 A |
30 A |
30 A |
30 A |
| Power consumption in W |
15 W |
24 W |
15 W |
24 W |
| Local signalling |
No indicator |
No indicator |
No indicator |
No indicator |
| Number of pages |
Limited by internal memory capacity |
Limited by internal memory capacity |
Limited by internal memory capacity |
Limited by internal memory capacity |
| Software designation |
SoMachine |
SoMachine |
SoMachine |
SoMachine |
| Operating system |
Harmony |
Harmony |
Harmony |
Harmony |
| Processor name |
CPU RISC |
CPU RISC |
CPU RISC |
CPU RISC |
| Processor frequency |
333 MHz |
333 MHz |
333 MHz |
333 MHz |
| memory description |
Flash NAND, 128 MB |
Flash NAND, 128 MB |
Flash NAND, 128 MB |
Flash NAND, 128 MB |
| Internal data storage FRAM, 128 kB |
Internal data storage FRAM, 128 kB |
Internal data storage FRAM, 128 kB |
Internal data storage FRAM, 128 kB |
| Application run DRAM, 128 MB |
Application run DRAM, 128 MB |
Application run DRAM, 128 MB |
Application run DRAM, 128 MB |
| integrated connection type |
1 serial link – RJ45 – RS232/RS485 (rate: <= 115.2 kbits/s) |
1 serial link – RJ45 – RS232/RS485 (rate: <= 115.2 kbits/s) |
1 serial link – RJ45 – RS232/RS485 (rate: <= 115.2 kbits/s) |
1 serial link – RJ45 – RS232/RS485 (rate: <= 115.2 kbits/s) |
| 1 Ethernet TCP/IP – RJ45 |
1 Ethernet TCP/IP – RJ45 |
1 Ethernet TCP/IP – RJ45 |
1 Ethernet TCP/IP – RJ45 |
| 1 USB 2.0 type mini B |
1 USB 2.0 type mini B |
1 USB 2.0 type mini B |
1 USB 2.0 type mini B |
| 1 USB 2.0 type A |
1 USB 2.0 type A |
1 USB 2.0 type A |
1 USB 2.0 type A |
| CANopen master bus – SUB-D 9 |
CANopen master bus – SUB-D 9 |
CANopen master bus – SUB-D 9 |
CANopen master bus – SUB-D 9 |
| Realtime clock |
Built-in |
Built-in |
Built-in |
Built-in |
| Downloadable protocols |
Modbus TCP/IP |
Modbus |
CANopen |
Modbus TCP/IP |
| CANopen |
Modbus TCP/IP |
Modbus TCP/IP |
CANopen |
| Modbus |
CANopen |
Modbus |
Modbus |
| fixing mode |
By 1 nut – diameter: Ø 22 mm, mounting on: 1…6 mm thick panel |
By 1 nut – diameter: Ø 22 mm, mounting on: 1…6 mm thick panel |
By 1 nut – diameter: Ø 22 mm, mounting on: 1…6 mm thick panel |
By 1 nut – diameter: Ø 22 mm, mounting on: 1…6 mm thick panel |
| Enclosure material |
PC/PBT |
PC/PBT and PAA |
PC/PBT |
PC/PBT and PAA |
| shock resistance |
147 m/s² for 11 ms (on DIN rail) conforming to IEC 60068-2-27 |
147 m/s² for 11 ms (on DIN rail) conforming to IEC 60068-2-27 |
147 m/s² for 11 ms (on DIN rail) conforming to IEC 60068-2-27 |
147 m/s² for 11 ms (on DIN rail) conforming to IEC 60068-2-27 |
| 294 m/s² for 6 ms (on panel mounting) conforming to IEC 60068-2-27 |
294 m/s² for 6 ms (on panel mounting) conforming to IEC 60068-2-27 |
294 m/s² for 6 ms (on panel mounting) conforming to IEC 60068-2-27 |
294 m/s² for 6 ms (on panel mounting) conforming to IEC 60068-2-27 |
| vibration resistance |
+/- 3.5 mm (f = 5…9 Hz) conforming to IEC 60068-2-6 |
+/- 3.5 mm (f = 5…9 Hz) conforming to IEC 60068-2-6 |
+/- 3.5 mm (f = 5…9 Hz) conforming to IEC 60068-2-6 |
+/- 3.5 mm (f = 5…9 Hz) conforming to IEC 60068-2-6 |
| 1 gn (f = 9…150 Hz) conforming to IEC 60068-2-6 |
1 gn (f = 9…150 Hz) conforming to IEC 60068-2-6 |
1 gn (f = 9…150 Hz) conforming to IEC 60068-2-6 |
1 gn (f = 9…150 Hz) conforming to IEC 60068-2-6 |
| electromagnetic compatibility |
Electrostatic discharge immunity test – test level: 8 kV (air discharge) conforming to IEC 61000-4-2 |
Electrostatic discharge immunity test – test level: 8 kV (air discharge) conforming to IEC 61000-4-2 |
Electrostatic discharge immunity test – test level: 8 kV (air discharge) conforming to IEC 61000-4-2 |
Electrostatic discharge immunity test – test level: 8 kV (air discharge) conforming to IEC 61000-4-2 |
| Electrostatic discharge immunity test – test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 |
Electrostatic discharge immunity test – test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 |
Electrostatic discharge immunity test – test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 |
Electrostatic discharge immunity test – test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 |
| Susceptibility to electromagnetic fields – test level: 10 V/m (80 MHz…3 GHz) conforming to IEC 61000-4-3 |
Susceptibility to electromagnetic fields – test level: 10 V/m (80 MHz…3 GHz) conforming to IEC 61000-4-3 |
Susceptibility to electromagnetic fields – test level: 10 V/m (80 MHz…3 GHz) conforming to IEC 61000-4-3 |
Susceptibility to electromagnetic fields – test level: 10 V/m (80 MHz…3 GHz) conforming to IEC 61000-4-3 |
| Electrical fast transient/burst immunity test – test level: 2 kV (power lines) conforming to IEC 61000-4-4 |
Electrical fast transient/burst immunity test – test level: 2 kV (power lines) conforming to IEC 61000-4-4 |
Electrical fast transient/burst immunity test – test level: 2 kV (power lines) conforming to IEC 61000-4-4 |
Electrical fast transient/burst immunity test – test level: 2 kV (power lines) conforming to IEC 61000-4-4 |
| Electrical fast transient/burst immunity test – test level: 1 kV (between analogue I/O and operating voltage) conforming to IEC 61000-4-4 |
Electrical fast transient/burst immunity test – test level: 1 kV (between analogue I/O and operating voltage) conforming to IEC 61000-4-4 |
Electrical fast transient/burst immunity test – test level: 1 kV (between analogue I/O and operating voltage) conforming to IEC 61000-4-4 |
Electrical fast transient/burst immunity test – test level: 1 kV (between analogue I/O and operating voltage) conforming to IEC 61000-4-4 |
| Electrical fast transient/burst immunity test – test level: 2 kV (relay wires) conforming to IEC 61000-4-4 |
Electrical fast transient/burst immunity test – test level: 2 kV (relay wires) conforming to IEC 61000-4-4 |
Electrical fast transient/burst immunity test – test level: 2 kV (relay wires) conforming to IEC 61000-4-4 |
Electrical fast transient/burst immunity test – test level: 2 kV (relay wires) conforming to IEC 61000-4-4 |
| Electrical fast transient/burst immunity test – test level: 1 kV (Ethernet line) conforming to IEC 61000-4-4 |
Electrical fast transient/burst immunity test – test level: 1 kV (Ethernet line) conforming to IEC 61000-4-4 |
Electrical fast transient/burst immunity test – test level: 1 kV (Ethernet line) conforming to IEC 61000-4-4 |
Electrical fast transient/burst immunity test – test level: 1 kV (Ethernet line) conforming to IEC 61000-4-4 |
| Electrical fast transient/burst immunity test – test level: 1 kV (COM line) conforming to IEC 61000-4-4 |
Electrical fast transient/burst immunity test – test level: 1 kV (COM line) conforming to IEC 61000-4-4 |
Electrical fast transient/burst immunity test – test level: 1 kV (COM line) conforming to IEC 61000-4-4 |
Electrical fast transient/burst immunity test – test level: 1 kV (COM line) conforming to IEC 61000-4-4 |
| Electrical fast transient/burst immunity test – test level: 1 kV (CAN line) conforming to IEC 61000-4-4 |
Electrical fast transient/burst immunity test – test level: 1 kV (CAN line) conforming to IEC 61000-4-4 |
Electrical fast transient/burst immunity test – test level: 1 kV (CAN line) conforming to IEC 61000-4-4 |
Electrical fast transient/burst immunity test – test level: 1 kV (CAN line) conforming to IEC 61000-4-4 |
| Surge immunity test – test level: 2 kV (power supply (common mode)) conforming to IEC 61000-4-5 |
Surge immunity test – test level: 2 kV (power supply (common mode)) conforming to IEC 61000-4-5 |
Surge immunity test – test level: 2 kV (power supply (common mode)) conforming to IEC 61000-4-5 |
Surge immunity test – test level: 2 kV (power supply (common mode)) conforming to IEC 61000-4-5 |
| Surge immunity test – test level: 1 kV (power supply (differential mode)) conforming to IEC 61000-4-5 |
Surge immunity test – test level: 1 kV (power supply (differential mode)) conforming to IEC 61000-4-5 |
Surge immunity test – test level: 1 kV (power supply (differential mode)) conforming to IEC 61000-4-5 |
Surge immunity test – test level: 1 kV (power supply (differential mode)) conforming to IEC 61000-4-5 |
| Surge immunity test – test level: 1 kV common mode (digital I/O) conforming to IEC 61000-4-5 |
Surge immunity test – test level: 1 kV common mode (digital I/O) conforming to IEC 61000-4-5 |
Surge immunity test – test level: 1 kV common mode (digital I/O) conforming to IEC 61000-4-5 |
Surge immunity test – test level: 1 kV common mode (digital I/O) conforming to IEC 61000-4-5 |
| Surge immunity test – test level: 0.5 kV differential mode (digital I/O) conforming to IEC 61000-4-5 |
Surge immunity test – test level: 0.5 kV differential mode (digital I/O) conforming to IEC 61000-4-5 |
Surge immunity test – test level: 0.5 kV differential mode (digital I/O) conforming to IEC 61000-4-5 |
Surge immunity test – test level: 0.5 kV differential mode (digital I/O) conforming to IEC 61000-4-5 |
| Conducted RF disturbances – test level: 10 V (0.15…80 MHz) conforming to IEC 61000-4-6 |
Conducted RF disturbances – test level: 10 V (0.15…80 MHz) conforming to IEC 61000-4-6 |
Conducted RF disturbances – test level: 10 V (0.15…80 MHz) conforming to IEC 61000-4-6 |
Conducted RF disturbances – test level: 10 V (0.15…80 MHz) conforming to IEC 61000-4-6 |
| Conducted emission – test level: 150 kHz…30 MHz conforming to EN 55011 |
Conducted emission – test level: 150 kHz…30 MHz conforming to EN 55011 |
Conducted emission – test level: 150 kHz…30 MHz conforming to EN 55011 |
Conducted emission – test level: 150 kHz…30 MHz conforming to EN 55011 |
| Radiated emission – test level: 30 MHz…1 GHz conforming to EN 55011 |
Radiated emission – test level: 30 MHz…1 GHz conforming to EN 55011 |
Radiated emission – test level: 30 MHz…1 GHz conforming to EN 55011 |
Radiated emission – test level: 30 MHz…1 GHz conforming to EN 55011 |
| discrete input number |
2 for fast input (normal mode) conforming to IEC 61131-2 Type 1 |
2 for fast input (normal mode) conforming to IEC 61131-2 Type 1 |
2 for fast input (normal mode) conforming to IEC 61131-2 Type 1 |
2 for fast input (normal mode) conforming to IEC 61131-2 Type 1 |
| 6 for digital input conforming to IEC 61131-2 Type 1 |
6 for digital input conforming to IEC 61131-2 Type 1 |
14 for digital input conforming to IEC 61131-2 Type 1 |
14 for digital input conforming to IEC 61131-2 Type 1 |
| discrete input voltage |
24 V DC, discrete input logic: sink or source (positive/negative) |
24 V DC, discrete input logic: sink or source (positive/negative) |
24 V DC, discrete input logic: sink or source (positive/negative) |
24 V DC, discrete input logic: sink or source (positive/negative) |
| number of common point |
1 for fast input (HSC mode) |
1 for fast input (HSC mode) |
1 for fast input (HSC mode) |
1 for fast input (HSC mode) |
| 1 for digital input |
1 for digital input |
2 for digital input |
2 for digital input |
| discrete input current |
7.83 mA for fast input |
7.83 mA for fast input |
7.83 mA for fast input |
7.83 mA for fast input |
| 5 mA for digital |
5 mA for digital |
5 mA for digital |
5 mA for digital |
| Input impedance |
2.81 kOhm |
4.7 kOhm |
2.81 kOhm |
2.81 kOhm |
| 4.7 kOhm |
2.81 kOhm |
4.7 kOhm |
4.7 kOhm |
| sensor power supply |
15…28.8 V DC >= 15 V, current (state 1): >= 5 mA <= 5 V, current (state 0): <= 1.5 mA |
15…28.8 V DC >= 15 V, current (state 1): >= 5 mA <= 5 V, current (state 0): <= 1.5 mA |
15…28.8 V DC >= 15 V, current (state 1): >= 5 mA <= 5 V, current (state 0): <= 1.5 mA |
15…28.8 V DC >= 15 V, current (state 1): >= 5 mA <= 5 V, current (state 0): <= 1.5 mA |
| 15…28.8 V DC >= 15 V, current (state 1): >= 2.5 mA <= 5 V, current (state 0): <= 1 mA |
15…28.8 V DC >= 15 V, current (state 1): >= 2.5 mA <= 5 V, current (state 0): <= 1 mA |
15…28.8 V DC >= 15 V, current (state 1): >= 2.5 mA <= 5 V, current (state 0): <= 1 mA |
15…28.8 V DC >= 15 V, current (state 1): >= 2.5 mA <= 5 V, current (state 0): <= 1 mA |
| configurable filtering time |
0 ms no filter (none) |
0 ms no filter (none) |
0 ms no filter (none) |
0 ms no filter (none) |
| 0.004…0.04 ms bounce filter (latch/event and cumulative filter by step Nx0.5ms (64>=N>=2)) |
0.004…0.04 ms bounce filter (latch/event and cumulative filter by step Nx0.5ms (64>=N>=2)) |
0.004…0.04 ms bounce filter (latch/event and cumulative filter by step Nx0.5ms (64>=N>=2)) |
0.004…0.04 ms bounce filter (latch/event and cumulative filter by step Nx0.5ms (64>=N>=2)) |
| 3…12 ms integrator (none/run/stop) |
3…12 ms integrator (none/run/stop) |
3…12 ms integrator (none/run/stop) |
3…12 ms integrator (none/run/stop) |
| maximum input frequency |
100 kHz for fast input (encoder mode) – control type A/B |
100 kHz for fast input (encoder mode) – control type A/B |
100 kHz for fast input (encoder mode) – control type A/B |
100 kHz for fast input (encoder mode) – control type A/B |
| 100 kHz for fast input – control type single phase |
100 kHz for fast input – control type single phase |
100 kHz for fast input – control type single phase |
100 kHz for fast input – control type single phase |
| 100 kHz for fast input – control type pulse/direction |
100 kHz for fast input – control type pulse/direction |
100 kHz for fast input – control type pulse/direction |
100 kHz for fast input – control type pulse/direction |
| maximum cable distance between devices |
Shielded cable: <10 m for fast input |
Shielded cable: <10 m for fast input |
Shielded cable: <10 m for fast input |
Shielded cable: <10 m for fast input |
| Shielded cable: <100 m for digital input |
Shielded cable: <100 m for digital input |
Shielded cable: <100 m for digital input |
Shielded cable: <100 m for digital input |
| Unshielded cable: <50 m for digital input |
Unshielded cable: <50 m for digital input |
Unshielded cable: <50 m for digital input |
Unshielded cable: <50 m for digital input |
| Connection pitch |
3.5 mm |
3.5 mm |
3.5 mm |
3.5 mm |
| overvoltage protection |
With overvoltage protection |
With overvoltage protection |
With overvoltage protection |
With overvoltage protection |
| isolation between channels and internal logic |
500 V DC |
500 V DC |
500 V DC |
500 V DC |
| Isolation between channels |
None |
None |
None |
None |
| discrete output number |
2 fast output (normal mode), output logic: source |
2 fast output (normal mode), output logic: source |
2 fast output (normal mode), output logic: source |
2 fast output (normal mode), output logic: source |
| 6 digital output, output logic: source |
6 digital output, output logic: source |
8 digital output, output logic: source |
8 digital output, output logic: source |
| discrete output voltage |
24 V DC (voltage limit: 19.2…28.8 V) with transistor discrete output(s) |
24 V DC (voltage limit: 19.2…28.8 V) with transistor discrete output(s) |
24 V DC (voltage limit: 19.2…28.8 V) with transistor discrete output(s) |
24 V DC (voltage limit: 19.2…28.8 V) with transistor discrete output(s) |
| 24 V DC (voltage limit: 5…30 V) with relay discrete output(s) |
24 V DC (voltage limit: 5…30 V) with relay discrete output(s) |
24 V DC (voltage limit: 5…30 V) with relay discrete output(s) |
24 V DC (voltage limit: 5…30 V) with relay discrete output(s) |
| 220 V AC (voltage limit: 100…250 V) with relay discrete output(s) |
220 V AC (voltage limit: 100…250 V) with relay discrete output(s) |
220 V AC (voltage limit: 100…250 V) with relay discrete output(s) |
220 V AC (voltage limit: 100…250 V) with relay discrete output(s) |
| input/output number |
2 for fast input, terminal(s): FI0…FI1 |
2 for fast input, terminal(s): FI0…FI1 |
2 for fast input, terminal(s): FI0…FI1 |
2 for fast input, terminal(s): FI0…FI1 |
| 2 for fast output, terminal(s): FQ0…FQ1 |
2 for fast output, terminal(s): FQ0…FQ1 |
14 for digital input, terminal(s): DI0…DI13 |
14 for digital input, terminal(s): DI0…DI13 |
| 6 for digital input, terminal(s): DI0…DI5 |
6 for digital input, terminal(s): DI0…DI5 |
2 for fast output, terminal(s): FQ0…FQ1 |
2 for fast output, terminal(s): FQ0…FQ1 |
| 6 for digital output, terminal(s): DQ0…DQ5 |
6 for digital output, terminal(s): DQ0…DQ5 |
8 for digital output, terminal(s): DQ0…DQ7 |
8 for digital output, terminal(s): DQ0…DQ7 |
| discrete output current |
2 A 4 A), response time 5 ms with opening contact for digital output |
2 A 4 A), response time 5 ms with opening contact for digital output |
2 A 4 A), response time 5 ms with opening contact for digital output |
2 A 4 A), response time 5 ms with opening contact for digital output |
| 2 A 4 A), response time 2 ms with closing contact for digital output |
2 A 4 A), response time 2 ms with closing contact for digital output |
2 A 4 A), response time 2 ms with closing contact for digital output |
2 A 4 A), response time 2 ms with closing contact for digital output |
| 300 mA, response time 2 ms for fast output (normal mode) |
300 mA, response time 2 ms for fast output (normal mode) |
300 mA, response time 2 ms for fast output (normal mode) |
300 mA, response time 2 ms for fast output (normal mode) |
| 50 mA, response time 2 ms for fast output (PWM or PTO mode) |
50 mA, response time 2 ms for fast output (PWM or PTO mode) |
50 mA, response time 2 ms for fast output (PWM or PTO mode) |
50 mA, response time 2 ms for fast output (PWM or PTO mode) |
| insulation resistance |
> 10 MOhm between the I/O and internal logic |
> 10 MOhm between the I/O and internal logic |
> 10 MOhm between the I/O and internal logic |
> 10 MOhm between the I/O and internal logic |
| > 10 MOhm between power supply and earth |
> 10 MOhm between power supply and earth |
> 10 MOhm between power supply and earth |
> 10 MOhm between power supply and earth |
| maximum output frequency |
100 kHz for fast output (PTO mode) |
100 kHz for fast output (PTO mode) |
100 kHz for fast output (PTO mode) |
100 kHz for fast output (PTO mode) |
| 1 kHz for fast output (PWM mode) |
1 kHz for fast output (PWM mode) |
1 kHz for fast output (PWM mode) |
1 kHz for fast output (PWM mode) |
| absolute accuracy error |
+/- 0.1 % of full scale cyclic ratio 1…99% for fast output (PWM or PTO mode) |
+/- 0.1 % of full scale cyclic ratio 1…99% for fast output (PWM or PTO mode) |
+/- 0.1 % of full scale cyclic ratio 1…99% for fast output (PWM or PTO mode) |
+/- 0.1 % of full scale cyclic ratio 1…99% for fast output (PWM or PTO mode) |
| 1 % of full scale cyclic ratio 1…99% for fast output (PWM or PTO mode) |
1 % of full scale cyclic ratio 1…99% for fast output (PWM or PTO mode) |
1 % of full scale cyclic ratio 1…99% for fast output (PWM or PTO mode) |
1 % of full scale cyclic ratio 1…99% for fast output (PWM or PTO mode) |
| +/- 5 % of full scale cyclic ratio 10…90% for fast output (PWM or PTO mode) |
+/- 5 % of full scale cyclic ratio 10…90% for fast output (PWM or PTO mode) |
+/- 5 % of full scale cyclic ratio 10…90% for fast output (PWM or PTO mode) |
+/- 5 % of full scale cyclic ratio 10…90% for fast output (PWM or PTO mode) |
| +/- 10 % of full scale cyclic ratio 20…80% for fast output (PWM or PTO mode) |
+/- 10 % of full scale cyclic ratio 20…80% for fast output (PWM or PTO mode) |
+/- 10 % of full scale cyclic ratio 20…80% for fast output (PWM or PTO mode) |
+/- 10 % of full scale cyclic ratio 20…80% for fast output (PWM or PTO mode) |
| +/- 15 % of full scale cyclic ratio 30…70% for fast output (PWM or PTO mode) |
+/- 15 % of full scale cyclic ratio 30…70% for fast output (PWM or PTO mode) |
+/- 15 % of full scale cyclic ratio 30…70% for fast output (PWM or PTO mode) |
+/- 15 % of full scale cyclic ratio 30…70% for fast output (PWM or PTO mode) |
| analogue input number |
2 for analog input |
2 for analog input |
|
|
| 2 for RTDs |
2 for RTDs |
|
|
| analogue input range |
0…20 mA/4…20 mA – resolution: 12 bits, input impedance: 250 Ohm (tolerance: +/- 1 %) |
0…20 mA/4…20 mA – resolution: 12 bits, input impedance: 250 Ohm (tolerance: +/- 1 %) |
|
|
| -10…+10 V or 0…10 V – resolution: 12 bits + sign, input impedance: >= 1 MOhm |
-10…+10 V or 0…10 V – resolution: 12 bits + sign, input impedance: >= 1 MOhm |
|
|
| analogue input type |
RTD at – 200…600 °C – resolution: 16 bits temperature probe: Pt 100/Pt 1000 |
RTD at – 200…600 °C – resolution: 16 bits temperature probe: Pt 100/Pt 1000 |
|
|
| RTD at – 50…200 °C – resolution: 16 bits temperature probe: Ni 100/Ni 1000 |
RTD at – 50…200 °C – resolution: 16 bits temperature probe: Ni 100/Ni 1000 |
|
|
| RTD at – 200…760 °C – resolution: 16 bits (thermocouple J) |
RTD at – 200…760 °C – resolution: 16 bits (thermocouple J) |
|
|
| RTD at – 240…1370 °C – resolution: 16 bits (thermocouple K) |
RTD at – 240…1370 °C – resolution: 16 bits (thermocouple K) |
|
|
| RTD at 0…1600 °C – resolution: 16 bits (thermocouple R) |
RTD at 0…1600 °C – resolution: 16 bits (thermocouple R) |
|
|
| RTD at 200…1800 °C – resolution: 16 bits (thermocouple B) |
RTD at 200…1800 °C – resolution: 16 bits (thermocouple B) |
|
|
| RTD at 0…1600 °C – resolution: 16 bits (thermocouple S) |
RTD at 0…1600 °C – resolution: 16 bits (thermocouple S) |
|
|
| RTD at – 200…400 °C – resolution: 16 bits (thermocouple T) |
RTD at – 200…400 °C – resolution: 16 bits (thermocouple T) |
|
|
| RTD at – 200…900 °C – resolution: 16 bits (thermocouple E) |
RTD at – 200…900 °C – resolution: 16 bits (thermocouple E) |
|
|
| RTD at – 200…1300 °C – resolution: 16 bits (thermocouple N) |
RTD at – 200…1300 °C – resolution: 16 bits (thermocouple N) |
|
|
| analogue output number |
2 resistive load for 12 bits + sign |
2 resistive load for 12 bits + sign |
|
|
| analogue output range |
0…20 mA/4…20 mA (> 300 Ohm) for open-circuit |
0…20 mA/4…20 mA (> 300 Ohm) for open-circuit |
|
|
| -10…10 V/0…10 V (> 2 kOhm) for short-circuit |
-10…10 V/0…10 V (> 2 kOhm) for short-circuit |
|
|
| Height |
74.95 mm |
129.4 mm |
74.95 mm |
129.4 mm |
| Width |
128 mm |
163 mm |
128 mm |
163 mm |
| Depth |
102 mm |
76.22 mm |
102 mm |
76.22 mm |
| Net weight |
0.551 kg |
0.803 kg |
0.512 kg |
0.764 kg |
| Environment |
|
|
|
|
| Standards |
CSA C22.2 No 213 Class I Division 2 |
FCC Class A |
IEC 61000-6-2 |
IEC 61000-6-2 |
| EN 61131-2 |
EN 61131-2 |
FCC Class A |
ANSI/ISA 12-12-01 |
| IEC 61000-6-2 |
UL 508 |
UL 508 |
CSA C22.2 No 213 Class I Division 2 |
| ANSI/ISA 12-12-01 |
IEC 61000-6-2 |
EN 61131-2 |
FCC Class A |
| UL 508 |
CSA C22.2 No 213 Class I Division 2 |
CSA C22.2 No 213 Class I Division 2 |
EN 61131-2 |
| FCC Class A |
ANSI/ISA 12-12-01 |
ANSI/ISA 12-12-01 |
UL 508 |
| Product certifications |
CULus CSA 22-2 No 142 |
CULus 508 |
CULus 508 |
CULus 508 |
| cUL 1604 Class 1 Division 2 |
cULus CSA 22-2 No 142 |
cUL 1604 Class 1 Division 2 |
KCC |
| C-Tick |
GOST |
KCC |
cULus CSA 22-2 No 142 |
| GOST |
cUL 1604 Class 1 Division 2 |
C-Tick |
GOST |
| KCC |
C-Tick |
cULus CSA 22-2 No 142 |
cUL 1604 Class 1 Division 2 |
| cULus 508 |
KCC |
GOST |
C-Tick |
|
|
|
|
UKCA |
|
|
|
|
UKEX |
| Marking |
CE |
CE |
CE |
CE |
| Ambient air temperature for operation |
0…50 °C |
0…50 °C |
0…50 °C |
0…50 °C |
| Ambient air temperature for storage |
-20…60 °C |
-20…60 °C |
-20…60 °C |
-20…60 °C |
| relative humidity |
5…85 % without condensation |
5…85 % without condensation |
5…85 % without condensation |
5…85 % without condensation |
| Operating altitude |
<= 2000 m |
<= 2000 m |
<= 2000 m |
<= 2000 m |
| Storage altitude |
0…10000 m |
0…10000 m |
0…10000 m |
0…10000 m |
| Maximum pressure |
800…1114 hPa |
800…1114 hPa |
800…1114 hPa |
800…1114 hPa |
| IP degree of protection |
IP20 (rear panel) conforming to IEC 60529 |
IP20 (rear panel) conforming to IEC 60529 |
IP20 (rear panel) conforming to IEC 60529 |
IP20 (rear panel) conforming to IEC 60529 |
|
IP65 (front panel) conforming to IEC 60529 |
IP65 (front panel) conforming to IEC 60529 |
IP65 (front panel) conforming to IEC 60529 |
IP65 (front panel) conforming to IEC 60529 |
| NEMA degree of protection |
NEMA 4X front panel |
NEMA 4X front panel |
NEMA 4X front panel |
NEMA 4X front panel |
| pollution degree |
2 conforming to IEC 60664 |
2 conforming to IEC 60664 |
2 conforming to IEC 60664 |
2 conforming to IEC 60664 |
| environmental characteristic |
Corrosive gas free |
Corrosive gas free |
Corrosive gas free |
Corrosive gas free |
| Packing Units |
| Unit Type of Package 1 |
PCE |
PCE |
PCE |
PCE |
| Number of Units in Package 1 |
1 |
1 |
1 |
1 |
| Package 1 Height |
18.4 cm |
18.8 cm |
18.4 cm |
11.000 cm |
| Package 1 Width |
10.8 cm |
11 cm |
10.8 cm |
19.000 cm |
| Package 1 Length |
26.7 cm |
20.7 cm |
26.7 cm |
26.700 cm |
| Package 1 Weight |
1.113 kg |
1.364 kg |
1083 g |
1.391 kg |
| Unit Type of Package 2 |
S03 |
S03 |
S03 |
S03 |
| Number of Units in Package 2 |
4 |
4 |
4 |
4 |
| Package 2 Height |
30 cm |
30 cm |
30 cm |
30.000 cm |
| Package 2 Width |
30 cm |
30 cm |
30 cm |
30.000 cm |
| Package 2 Length |
40 cm |
40 cm |
40 cm |
40.000 cm |
| Package 2 Weight |
|
|
|
6.044 kg |
| Unit Type of Package 3 |
|
|
|
P12 |
| Number of Units in Package 3 |
|
|
|
64 |
| Package 3 Height |
|
|
|
75.000 cm |
| Package 3 Width |
|
|
|
80.000 cm |
| Package 3 Length |
|
|
|
120.000 cm |
| Package 3 Weight |
|
|
|
109.040 kg |
