Specifications
[fusion_table fusion_table_type=”1″ fusion_table_rows=”” fusion_table_columns=”” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” class=”” id=”” animation_type=”” animation_direction=”left” animation_color=”” hue=”” saturation=”” lightness=”” alpha=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]
| Key information | ||||

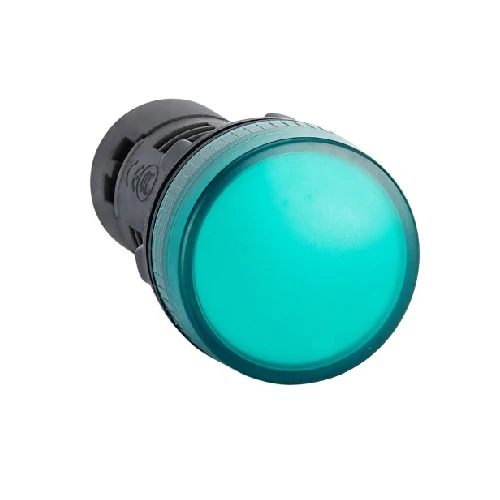

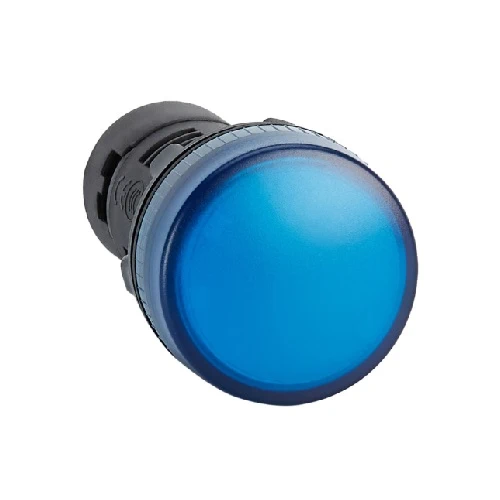

| Part Number | XB2BVM5LC | XB2BVB5LC | XB2BVB3LC | XB2BVB6LC |
| Product family | Harmony XB2 | Harmony XB2 | Harmony XB2 | Harmony XB2 |
| Product type | Light | Light | Light | Light |
| Short name of the product | XB2 | XB2 | XB2 | XB2 |
| Border material | Plastics | Plastics | Plastics | Plastics |
| Installation diameter | 22 mm | 22 mm | 22 mm | 22 mm |
| Quantity sold separately for each piece | 1 | 1 | 1 | 1 |
| Signal unit head shape | Rotundity | Rotundity | Rotundity | Rotundity |
| Manipulation head or lens color | Yellow | Yellow | Green | Blue |
| Light source | LED bulbs | LED bulbs | LED bulbs | LED bulbs |
| Rated supply voltage [US] | 24 V ac/dc 50/60 Hz | 24 V ac/dc 50/60 Hz | ||
| Introduction to the device | Products (non-components) | Products (non-components) | Products (non-components) | Products (non-components) |
| Supplemental Information | ||||
| Device installation | Fixing hole – diameter: 22 mm 22.3 +0.4/0 according to EN/IEC 60947-5-1 | Fixing hole – diameter: 22 mm 22.3 +0.4/0 according to EN/IEC 60947-5-1 | Fixing hole – diameter: 22 mm 22.3 +0.4/0 according to EN/IEC 60947-5-1 | Fixing hole – diameter: 22 mm 22.3 +0.4/0 according to EN/IEC 60947-5-1 |
| Mounting hole spacing | >= 30 x 40 mm (mounting panel) metal – thickness: 1… 6 mm | >= 30 x 40 mm (mounting panel) metal – thickness: 1… 6 mm | >= 30 x 40 mm (mounting panel) Plastic – thickness: 1… 6 mm | >= 30 x 40 mm (mounting panel) metal – thickness: 1… 6 mm |
| >= 30 x 40 mm (mounting panel) Plastic – thickness: 1… 6 mm | >= 30 x 40 mm (mounting panel) Plastic – thickness: 1… 6 mm | >= 30 x 40 mm (mounting panel) Plastic – thickness: 1… 6 mm | ||
| Fixed mode | Set nut Recommended torque: 2.2 N.m (+/- 0.2) | Set nut Recommended torque: 2.2 N.m (+/- 0.2) | Set nut Recommended torque: 2.2 N.m (+/- 0.2) | Set nut Recommended torque: 2.2 N.m (+/- 0.2) |
| logotype | CCC | CCC | CE | CCC |
| CE | CE | CE | ||
| Wiring capability | Bolt tightening, <= 1 x 2.5 mm² with and without cable ends, <= 2 x 1.5 mm² with and without cable ends | Bolt tightening, <= 1 x 2.5 mm² with and without cable ends, <= 2 x 1.5 mm² with and without cable ends | , >= 1 x 0.5 mm² | Bolt tightening, <= 1 x 2.5 mm² with and without cable ends, <= 2 x 1.5 mm² with and without cable ends |
| , >= 1 x 0.5 mm² | , >= 1 x 0.5 mm² | quick terminal block, connection type: 6.3 mm | , >= 1 x 0.5 mm² | |
| quick terminal block, connection type: 6.3 mm | quick terminal block, connection type: 6.3 mm | quick terminal block, connection type: 6.3 mm | ||
| Tightening torque | 0.8… 1.0 N.m complies with EN 60947-1 | 0.8… 1.0 N.m complies with EN 60947-1 | 0.8… 1.0 N.m complies with EN 60947-1 | 0.8… 1.0 N.m complies with EN 60947-1 |
| Screw head shape | Crossover compatible with Philips no 1 screwdriver crossover compatible with pozidriv No 1 screwdriver slot, compatible with flat ø 4 mm screwdriver slot, compatible with flat ø 5.5 mm screwdriver | Crossover compatible with Philips no 1 screwdriver crossover compatible with pozidriv No 1 screwdriver slot, compatible with flat ø 4 mm screwdriver slot, compatible with flat ø 5.5 mm screwdriver | Crossover compatible with Philips no 1 screwdriver crossover compatible with pozidriv No 1 screwdriver slot, compatible with flat ø 4 mm screwdriver slot, compatible with flat ø 5.5 mm screwdriver | Crossover compatible with Philips no 1 screwdriver crossover compatible with pozidriv No 1 screwdriver slot, compatible with flat ø 4 mm screwdriver slot, compatible with flat ø 5.5 mm screwdriver |
| Rated insulation voltage [UI] | 400 V (pollution class 3) according to EN/IEC 60947-1 | 400 V (pollution class 3) according to EN/IEC 60947-1 | ||
| Rated impulse withstand voltage [UIMP] | 6 kV in accordance with EN/IEC 60947-1 | 6 kV in accordance with EN/IEC 60947-1 | 6 kV in accordance with EN/IEC 60947-1 | 6 kV in accordance with EN/IEC 60947-1 |
| Signal type | Constant | Constant | Constant | Constant |
| Supply voltage range | 0.8… 1.1 V ac | 0.8… 1.1 V AC/DC | 0.8… 1.1 V AC/DC | 0.8… 1.1 V AC/DC |
| Current consumption | <= 20 mA | <= 20 mA | <= 20 mA | <= 20 mA |
| Service life | 50000 hours at 25°C, rated voltage | 50000 hours at 25°C, rated voltage | ||
| Surge tolerance | 1 kV according to IEC 61000-4-5 | 1 kV according to IEC 61000-4-5 | 1 kV according to IEC 61000-4-5 | 1 kV according to IEC 61000-4-5 |
| Electromagnetic domain resistant | 10 V/m according to IEC 61000-4-3 | 10 V/m according to IEC 61000-4-3 | ||
| Antistatic discharge | 4 kV contact (metal parts) according to IEC 61000-4-2 | 4 kV contact (metal parts) according to IEC 61000-4-2 | 4 kV contact (metal parts) according to IEC 61000-4-2 | 4 kV contact (metal parts) according to IEC 61000-4-2 |
| 8 kV free air (in insulated parts) according to IEC 61000-4-2 | 8 kV free air (in insulated parts) according to IEC 61000-4-2 | 8 kV free air (in insulated parts) according to IEC 61000-4-2 | 8 kV free air (in insulated parts) according to IEC 61000-4-2 | |
| height | 30 mm | 30 mm | 30 mm | 30 mm |
| width | 30 mm | 30 mm | 30 mm | 30 mm |
| depth | 58 mm | 58 mm | 58 mm | 58 mm |
| Product Weight | 0.02 kg | 0.02 kg | ||
| Environment | ||||
| Protective processing | TC | TC | TC | TC |
| Operating temperature | -25… 70 °C | -25… 70 °C | ||
| Storage ambient temperature | -40… 80 °C | -40… 80 °C | ||
| Overvoltage type | Class I complies with IEC 60356 | Class I complies with IEC 60356 | Class I complies with IEC 60356 | Class I complies with IEC 60356 |
| IP protection rating | “IP65” compliant with screwed | “IP65” compliant with screwed | “IP65” compliant with screwed | “IP65” compliant with screwed |
| IK protection rating | IK06 complies with IEC 50102 | IK06 complies with IEC 50102 | IK06 complies with IEC 50102 | IK06 complies with IEC 50102 |
| Compliance with standards | GB/T 14048.5 | IEC 60947-5-1 | GB/T 14048.5 | IEC 60947-5-1 |
| IEC 60947-5-1 | GB/T 14048.1 | IEC 60947-5-1 | ||
| GB/T 14048.1 | IEC 60947-1 | GB/T 14048.1 | ||
| IEC 60947-1 | IEC 60947-1 | |||
| Product certification | CCC | CCC | CCC | CE |
| CE | CE | CE | ||
| Vibration resistant | 5 gn (f= 2… 500 Hz) according to IEC 60068-2-6 | 5 gn (f= 2… 500 Hz) according to IEC 60068-2-6 | 5 gn (f= 2… 500 Hz) according to IEC 60068-2-6 | 5 gn (f= 2… 500 Hz) according to IEC 60068-2-6 |
| Shock resistant | 30 gn (duration = 18 ms) for semi-sinusoidal shock according to IEC 60068-2-27 | 30 gn (duration = 18 ms) for semi-sinusoidal shock according to IEC 60068-2-27 | 30 gn (duration = 18 ms) for semi-sinusoidal shock according to IEC 60068-2-27 | 30 gn (duration = 18 ms) for semi-sinusoidal shock according to IEC 60068-2-27 |
| 50 gn (duration = 11 ms) for half-sine shock according to IEC 60068-2-27 | 50 gn (duration = 11 ms) for half-sine shock according to IEC 60068-2-27 | 50 gn (duration = 11 ms) for half-sine shock according to IEC 60068-2-27 | 50 gn (duration = 11 ms) for half-sine shock according to IEC 60068-2-27 | |
| Immunity to instantaneous pulses | 2 kV according to IEC 61000-4-4 | 2 kV according to IEC 61000-4-4 | 2 kV according to IEC 61000-4-4 | 2 kV according to IEC 61000-4-4 |
| electromagnetic radiation | Class B complies with IEC 55011 | Class B complies with IEC 55011 | Class B complies with IEC 55011 | Class B complies with IEC 55011 |
| Packaging unit | ||||
| Unit Type of Package 1 | PCE | PCE | PCE | PCE |
| Number of Units in Package 1 | 1 | 1 | 1 | 1 |
| Package 1 Height | 2.85 cm | 2.029 cm | 2.97 cm | 1.997 cm |
| Package 1 Width | 5.7 cm | 2.987 cm | 2.98 cm | 2.964 cm |
| Package 1 Length | 2.83 cm | 5.712 cm | 5.74 cm | 5.748 cm |
| Package 1 Weight | 20.0 g | 0.02 kg | 18.9 g | 0.02 kg |
| Unit Type of Package 2 | S02 | S02 | S02 | S02 |
| Number of Units in Package 2 | 100 | 100 | 100 | 100 |
| Package 2 Height | 15.0 cm | 15 cm | 15 cm | 15 cm |
| Package 2 Width | 30.0 cm | 30 cm | 30 cm | 30 cm |
| Package 2 Length | 40.0 cm | 40 cm | 40 cm | 40 cm |
| Package 2 Weight | 2.5 kg | 2.32 kg | 2.5 kg | 2 kg |
| Unit Type of Package 3 | PAL | PAL | PAL | PAL |
| Number of Units in Package 3 | 2000 | 2000 | 2000 | 2000 |
| Package 3 Height | 60.0 cm | 60 cm | 60 cm | 60 cm |
| Package 3 Width | 80.0 cm | 80 cm | 80 cm | 80 cm |
| Package 3 Length | 90.0 cm | 90 cm | 90 cm | 90 cm |
| Package 3 Weight | 46.0 kg | 42400 g | 42400 g | 40 kg |
| Contract warranty | ||||
| Warranty | 18 months | 18 months | 18 months | 18 months |
[/fusion_table]
[fusion_table fusion_table_type=”1″ fusion_table_rows=”” fusion_table_columns=”” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” class=”” id=”” animation_type=”” animation_direction=”left” animation_color=”” hue=”” saturation=”” lightness=”” alpha=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]
| Key information | ||||
| Part Number | XB2BVM6LC | XB2BVB4LC | XB2BVM4LC | XB2BVM1LC |
| Product family | Harmony XB2 | Harmony XB2 | Harmony XB2 | Harmony XB2 |
| Product type | Light | Light | Light | Light |
| Short name of the product | XB2 | XB2 | XB2 | XB2 |
| Border material | Plastics | Plastics | Plastics | Plastics |
| Installation diameter | 22 mm | 22 mm | 22 mm | 22 mm |
| Quantity sold separately for each piece | 1 | 1 | 1 | 1 |
| Signal unit head shape | Rotundity | Rotundity | Rotundity | Rotundity |
| Manipulation head or lens color | Blue | Red | Red | White |
| Light source | LED bulbs | LED bulbs | LED bulbs | LED bulbs |
| Rated supply voltage [US] | 220…230 V ac 50/60 Hz | 24 V ac/dc 50/60 Hz | 220…230 V ac 50/60 Hz | 220…230 V ac 50/60 Hz |
| Introduction to the device | Products (non-components) | Products (non-components) | Products (non-components) | Products (non-components) |
| Device installation | Fixing hole – diameter: 22 mm 22.3 +0.4/0 according to EN/IEC 60947-5-1 | Fixing hole – diameter: 22 mm 22.3 +0.4/0 according to EN/IEC 60947-5-1 | Fixing hole – diameter: 22 mm 22.3 +0.4/0 according to EN/IEC 60947-5-1 | Fixing hole – diameter: 22 mm 22.3 +0.4/0 according to EN/IEC 60947-5-1 |
| Mounting hole spacing | >= 30 x 40 mm (mounting panel) metal – thickness: 1… 6 mm | >= 30 x 40 mm (mounting panel) metal – thickness: 1… 6 mm | >= 30 x 40 mm (mounting panel) metal – thickness: 1… 6 mm | >= 30 x 40 mm (mounting panel) metal – thickness: 1… 6 mm |
| >= 30 x 40 mm (mounting panel) Plastic – thickness: 1… 6 mm | >= 30 x 40 mm (mounting panel) Plastic – thickness: 1… 6 mm | >= 30 x 40 mm (mounting panel) Plastic – thickness: 1… 6 mm | >= 30 x 40 mm (mounting panel) Plastic – thickness: 1… 6 mm | |
| Fixed mode | Set nut Recommended torque: 2.2 N.m (+/- 0.2) | Set nut Recommended torque: 2.2 N.m (+/- 0.2) | Set nut Recommended torque: 2.2 N.m (+/- 0.2) | Set nut Recommended torque: 2.2 N.m (+/- 0.2) |
| logotype | CCC | CCC | CCC | CCC |
| CE | CE | CE | CE | |
| Wiring capability | Bolt tightening, <= 1 x 2.5 mm² with and without cable ends, <= 2 x 1.5 mm² with and without cable ends | Bolt tightening, <= 1 x 2.5 mm² with and without cable ends, <= 2 x 1.5 mm² with and without cable ends | Bolt tightening, <= 1 x 2.5 mm² with and without cable ends, <= 2 x 1.5 mm² with and without cable ends | Bolt tightening, <= 1 x 2.5 mm² with and without cable ends, <= 2 x 1.5 mm² with and without cable ends |
| , >= 1 x 0.5 mm² | , >= 1 x 0.5 mm² | , >= 1 x 0.5 mm² | , >= 1 x 0.5 mm² | |
| quick terminal block, connection type: 6.3 mm | quick terminal block, connection type: 6.3 mm | quick terminal block, connection type: 6.3 mm | quick terminal block, connection type: 6.3 mm | |
| Tightening torque | 0.8… 1.0 N.m complies with EN 60947-1 | 0.8… 1.0 N.m complies with EN 60947-1 | 0.8… 1.0 N.m complies with EN 60947-1 | 0.8… 1.0 N.m complies with EN 60947-1 |
| Screw head shape | Crossover compatible with Philips no 1 screwdriver crossover compatible with pozidriv No 1 screwdriver slot, compatible with flat ø 4 mm screwdriver slot, compatible with flat ø 5.5 mm screwdriver | Crossover compatible with Philips no 1 screwdriver crossover compatible with pozidriv No 1 screwdriver slot, compatible with flat ø 4 mm screwdriver slot, compatible with flat ø 5.5 mm screwdriver | Crossover compatible with Philips no 1 screwdriver crossover compatible with pozidriv No 1 screwdriver slot, compatible with flat ø 4 mm screwdriver slot, compatible with flat ø 5.5 mm screwdriver | Crossover compatible with Philips no 1 screwdriver crossover compatible with pozidriv No 1 screwdriver slot, compatible with flat ø 4 mm screwdriver slot, compatible with flat ø 5.5 mm screwdriver |
| Rated insulation voltage [UI] | 400 V (pollution class 3) according to EN/IEC 60947-1 | 400 V (pollution class 3) according to EN/IEC 60947-1 | 400 V (pollution class 3) according to EN/IEC 60947-1 | 400 V (pollution class 3) according to EN/IEC 60947-1 |
| Rated impulse withstand voltage [UIMP] | 6 kV in accordance with EN/IEC 60947-1 | 6 kV in accordance with EN/IEC 60947-1 | 6 kV in accordance with EN/IEC 60947-1 | 6 kV in accordance with EN/IEC 60947-1 |
| Signal type | Constant | Constant | Constant | Constant |
| Supply voltage range | 0.8… 1.1 V ac | 0.8… 1.1 V AC/DC | 0.8… 1.1 V ac | 0.8… 1.1 V ac |
| Current consumption | <= 20 mA | <= 20 mA | <= 20 mA | <= 20 mA |
| Service life | 50000 hours at 25°C, rated voltage | 50000 hours at 25°C, rated voltage | 50000 hours at 25°C, rated voltage | 50000 hours at 25°C, rated voltage |
| Surge tolerance | 1 kV according to IEC 61000-4-5 | 1 kV according to IEC 61000-4-5 | 1 kV according to IEC 61000-4-5 | 1 kV according to IEC 61000-4-5 |
| Electromagnetic domain resistant | 10 V/m according to IEC 61000-4-3 | 10 V/m according to IEC 61000-4-3 | 10 V/m according to IEC 61000-4-3 | 10 V/m according to IEC 61000-4-3 |
| Antistatic discharge | 4 kV contact (metal parts) according to IEC 61000-4-2 | 4 kV contact (metal parts) according to IEC 61000-4-2 | 4 kV contact (metal parts) according to IEC 61000-4-2 | 8 kV free air (in insulated parts) according to IEC 61000-4-2 |
| 8 kV free air (in insulated parts) according to IEC 61000-4-2 | 8 kV free air (in insulated parts) according to IEC 61000-4-2 | 8 kV free air (in insulated parts) according to IEC 61000-4-2 | ||
| height | 30 mm | 30 mm | 30 mm | 30 mm |
| width | 30 mm | 30 mm | 30 mm | 30 mm |
| depth | 58 mm | 58 mm | 58 mm | 52.5 mm |
| Product weight | 0.02 kg | 0.02 kg | 0.02 kg | 0.02 kg |
| Environment | ||||
| Protective processing | TC | TC | TC | |
| Storage ambient temperature | -40… 80 °C | -40… 80 °C | -40… 80 °C | -40… 80 °C |
| Operating temperature | -25… 70 °C | -25… 70 °C | -25… 70 °C | |
| Overvoltage type | Class I complies with IEC 60356 | Class I complies with IEC 60356 | Class I complies with IEC 60356 | |
| IP protection rating | “IP65” compliant with screwed | “IP65” compliant with screwed | “IP65” compliant with screwed | “IP65” compliant with screwed |
| IK protection rating | IK06 complies with IEC 50102 | IK06 complies with IEC 50102 | IK06 complies with IEC 50102 | |
| IEC 60947-5-1 | GB/T 14048.5 | GB/T 14048.5 | GB/T 14048.5 | |
| IEC 60947-5-1 | IEC 60947-5-1 | IEC 60947-5-1 | ||
| GB/T 14048.1 | GB/T 14048.1 | GB/T 14048.1 | ||
| IEC 60947-1 | IEC 60947-1 | IEC 60947-1 | ||
| Product certification | CE | CCC | CCC | CE |
| CE | CE | |||
| Vibration resistant | 5 gn (f= 2… 500 Hz) according to IEC 60068-2-6 | 5 gn (f= 2… 500 Hz) according to IEC 60068-2-6 | 5 gn (f= 2… 500 Hz) according to IEC 60068-2-6 | 5 gn (f= 2… 500 Hz) according to IEC 60068-2-6 |
| Shock resistant | 30 gn (duration = 18 ms) for semi-sinusoidal shock according to IEC 60068-2-27 | 30 gn (duration = 18 ms) for semi-sinusoidal shock according to IEC 60068-2-27 | 30 gn (duration = 18 ms) for semi-sinusoidal shock according to IEC 60068-2-27 | 30 gn (duration = 18 ms) for semi-sinusoidal shock according to IEC 60068-2-27 |
| 50 gn (duration = 11 ms) for half-sine shock according to IEC 60068-2-27 | 50 gn (duration = 11 ms) for half-sine shock according to IEC 60068-2-27 | 50 gn (duration = 11 ms) for half-sine shock according to IEC 60068-2-27 | 50 gn (duration = 11 ms) for half-sine shock according to IEC 60068-2-27 | |
| Immunity to instantaneous pulses | 2 kV according to IEC 61000-4-4 | 2 kV according to IEC 61000-4-4 | 2 kV according to IEC 61000-4-4 | 2 kV according to IEC 61000-4-4 |
| electromagnetic radiation | Class B complies with IEC 55011 | Class B complies with IEC 55011 | Class B complies with IEC 55011 | Class B complies with IEC 55011 |
| Packaging unit | ||||
| Unit Type of Package 1 | PCE | PCE | PCE | PCE |
| Number of Units in Package 1 | 1 | 1 | 1 | 1 |
| Package 1 Height | 1.993 cm | 2.96 cm | 2.97 cm | 5.7 cm |
| Package 1 Width | 2.97 cm | 2.96 cm | 2.97 cm | 2.95 cm |
| Package 1 Length | 5.764 cm | 5.73 cm | 5.75 cm | 2.94 cm |
| Package 1 Weight | 20.0 g | 0.019 kg | 20.1 g | 20.9 g |
| Unit Type of Package 2 | S02 | S02 | S02 | S02 |
| Number of Units in Package 2 | 100 | 100 | 100 | 100 |
| Package 2 Height | 15.0 cm | 15 cm | 15 cm | 15 cm |
| Package 2 Width | 30.0 cm | 30 cm | 30 cm | 30 cm |
| Package 2 Length | 40.0 cm | 40 cm | 40 cm | 40 cm |
| Package 2 Weight | 2.253 kg | 2.5 kg | 2.5 kg | 2520.1 g |
| Unit Type of Package 3 | PAL | PAL | PAL | PAL |
| Number of Units in Package 3 | 2000 | 2000 | 2000 | 2000 |
| Package 3 Height | 60.0 cm | 60 cm | 60 cm | 60 cm |
| Package 3 Width | 80.0 cm | 80 cm | 80 cm | 80 cm |
| Package 3 Length | 90.0 cm | 90 cm | 90 cm | 90 cm |
| Package 3 Weight | 45.0 kg | 43286 g | 44042 g | 47030 g |
| Contract warranty | ||||
| Warranty | 18 months | 18 months | 18 months | 18 months |
[/fusion_table]
| Weight | 0.02 kg |
|---|---|
| Dimensions | 5.8 × 3.0 × 3.0 cm |
| Model | XB2BVB3LC, XB2BVB4LC, XB2BVB5LC, XB2BVB6LC, XB2BVM1LC, XB2BVM4LC, XB2BVM5LC, XB2BVM6LC |
