| Main |
|
| Part Number |

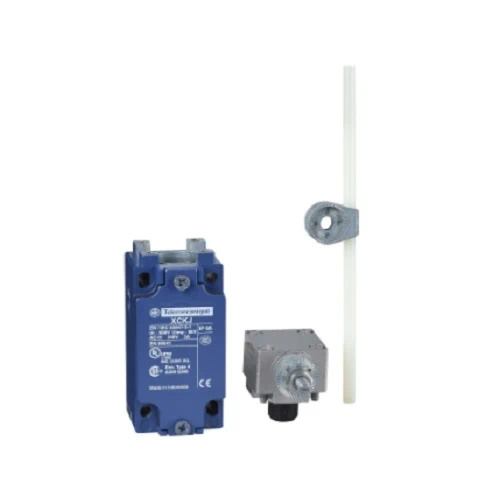

XCKJ10559H29C |
XCKJ10513H29C |

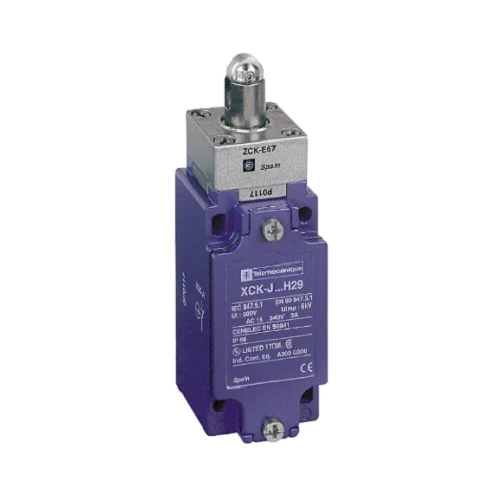

XCKJ167H29C |

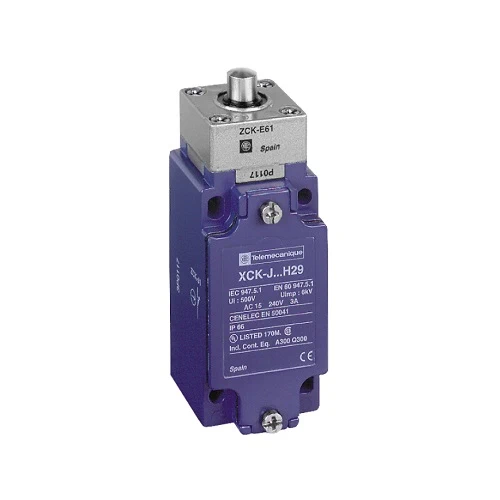

XCKJ161H29 |
| Range of product |
Telemecanique Limit switches XC Standard |
Telemecanique Limit switches XC Standard |
Telemecanique Limit switches XC Standard |
Telemecanique Limit switches XC Standard |
| Series name |
Standard format |
Standard type |
Standard type |
Standard type |
| Product or component type |
Limit switch |
Limit switch |
Limit switch |
Limit switch |
| device short name |
XCKJ |
XCKJ |
XCKJ |
XCK |
| Sensor design |
Form D conforming to CENELEC EN 50041 |
Type A conforms to CENELEC EN 50041 |
Form C complies with CENELEC EN 50041 |
Type B conforms to CENELEC EN 50041 |
| body type |
Fixed |
Fixed |
Fixed |
Fixed |
| Head type |
Rotary head |
Swivel head |
Direct acting head |
Direct acting head |
| Material |
Metal |
Metal |
Metal |
Metal |
| Body material |
Zamak |
Zamak |
Zamak |
Zamak |
| Head material |
Zamak |
Zamak |
Zamak |
Zamak |
| Fixing mode |
By the body |
By ontology |
By ontology |
By ontology |
| Movement of operating head |
Rotary |
To rotate |
Linear |
Linear |
| Type of operator |
Spring return round rod lever thermoplastic round rod 6 mm, L = 200 mm |
Spring Return Roller Rocker Metal |
Spring Return, Roller Direct Action Metal Reinforced |
Spring return direct acting metal |
| Type of approach |
Lateral approach, 1 or 2 programmable direction |
Side movement, 1 or 2 directions programmable |
Lateral movement, 2-way |
Vertical movement, one-way |
| Cable entry |
1 entry tapped for M20 x 1.5 cable gland, cable outer diameter: 7…13 mm |
1 cable gland for M20x1.6, outer cable diameter: 7…13 mm |
1 cable gland for M20x1.6, outer cable diameter: 7…13 mm |
1 cable gland for M20x1.6, outer cable diameter: 7…13 mm |
| Number of poles |
2 |
2 |
2 |
2 |
| Contacts type and composition |
1 NC + 1 NO |
1 NC + 1 NO |
1 NC + 1 NO |
1 NC + 1 NO |
| Contact operation |
Snap action |
Momentary |
Momentary |
Momentary |
| Complementary |
Additional information |
| Switch actuation |
By any moving part |
30° lip |
30° lip |
The end |
| Electrical connection |
Screw-clamp terminals, clamping capacity: 1 x 0.34…2 x 1.5 mm² |
Screw clamp terminal, clamping capacity: 1 x 0.34…2 x 1.5 mm² |
Screw clamp terminal, clamping capacity: 1 x 0.34…2 x 1.5 mm² |
Screw clamp terminal, clamping capacity: 1 x 0.34…2 x 1.5 mm² |
| Contacts insulation form |
Zb |
Zb |
Zb |
Zb |
| Number of steps |
1 |
1 |
1 |
1 |
| Positive opening |
Without |
Have |
Have |
Have |
| Force open minimum torque |
|
0.5 Nm |
|
|
| Minimum torque for tripping |
0.25 N.m |
0.25 Nm |
|
|
| force open minimum force |
|
|
40N |
50N |
| Minimum trip force |
|
|
16N |
20N |
| Maximum actuation speed |
1.5 m/s |
1.5 m/s |
1 m/s |
0.5 m/s |
| Repeatability |
|
|
|
Trigger point is 0.1mm 1 million operating cycles |
| [Ie] rated operational current |
3 A at 240 V, AC-15, A300 conforming to EN/IEC 60947-5-1 appendix A |
3 A at 240 V, AC-15, A300 conforming to EN/IEC 60947-5-1 Appendix A |
3 A at 240 V, AC-15, A300 conforming to EN/IEC 60947-5-1 Appendix A |
3 A at 240 V, AC-15, A300 conforming to EN/IEC 60947-5-1 Appendix A |
|
0.27 A at 250 V, DC-13, Q300 conforming to EN/IEC 60947-5-1 appendix A |
0.27 A at 250 V, DC-13, Q300 conforming to EN/IEC 60947-5-1 Appendix A |
0.27 A at 250 V, DC-13, Q300 conforming to EN/IEC 60947-5-1 Appendix A |
0.27 A at 250 V, DC-13, Q300 conforming to EN/IEC 60947-5-1 Appendix A |
| [Ithe] conventional enclosed thermal current |
10:00 AM |
10A |
10A |
10A |
| [Ui] rated insulation voltage |
300 V conforming to UL 508 |
300 V according to UL 508 |
300 V according to UL 508 |
300 V according to UL 508 |
|
500 V (pollution degree 3) conforming to IEC 60947-1 |
500 V (pollution degree 3) according to IEC 60947-1 |
500 V (pollution degree 3) according to IEC 60947-1 |
500 V (pollution degree 3) according to IEC 60947-1 |
|
300 V conforming to CSA C22.2 No 14 |
300 V according to CSA C22.2 No 14 |
300 V according to CSA C22.2 No 14 |
300 V according to CSA C22.2 No 14 |
| Maximum resistance across terminals |
25 MOhm conforming to IEC 60255-7 category 3 |
25 MΩ conforming to IEC 60255-7 Safety Class 3 |
25 MΩ conforming to IEC 60255-7 Safety Class 3 |
25 MΩ conforming to IEC 60255-7 Safety Class 3 |
| [Uimp] rated impulse withstand voltage |
6 kV conforming to IEC 60664 |
6 kV according to IEC 60664 |
6 kV according to IEC 60664 |
6 kV according to IEC 60664 |
|
6 kV conforming to IEC 60947-1 |
6 kV according to IEC 60947-1 |
6 kV according to IEC 60947-1 |
6 kV according to IEC 60947-1 |
| Short-circuit protection |
10 A cartridge fuse, type gG |
10 A fuse fuse, type gG |
10 A fuse fuse, type gG |
10 A fuse fuse, type gG |
| Electrical durability |
5000000 cycles, DC-13, inductive load type, 120 V, 4 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
5000000 cycles, DC-13, inductive load Load type, 120 V, 4 W, operating rating <60 cycles/min, duty factor: 0.5 conforming to IEC 60947-5-1 Annex C 5000000 cycles, DC-13, inductive |
5000000 cycles, DC-13, inductive load Load type, 120 V, 4 W, operating rating <60 cycles/min, duty factor: 0.5 conforming to IEC 60947-5-1 Annex C 5000000 cycles, DC-13, inductive |
5000000 cycles, DC-13, inductive load Load type, 120 V, 4 W, operating rating <60 cycles/min, duty factor: 0.5 conforming to IEC 60947-5-1 Annex C 5000000 cycles, DC-13, inductive |
|
5000000 cycles, DC-13, inductive load type, 24 V, 10 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
load Type, 24 V, 10 W, Operating rating <60 cycles/min, Duty factor: 0.5 conforming to IEC 60947-5-1 Annex C 5,000,000 cycles, DC-13, |
load Type, 24 V, 10 W, operating rating<60 cycles/min, duty factor: 0.5 conforming to IEC 60947-5-1 Annex C 5000000 cycles, DC-13, inductive |
load Type, 24 V, 10 W, Operating rating <60 cycles/min, Duty factor: 0.5 conforming to IEC 60947-5-1 Annex C 5,000,000 cycles, DC-13, |
|
5000000 cycles, DC-13, inductive load type, 48 V, 7 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
Inductive load Load type, 48 V, 7 W, Operating rating Value <60 cycles/min, load factor: 0.5 conforming to IEC 60947-5-1 Annex C |
loadLoad type, 48 V, 7 W, operating rating Value <60 cycles/min, load factor: 0.5 conforming to IEC 60947-5-1 Annex C |
Inductive load Load type, 48 V, 7 W, Operating rating Value <60 cycles/min, load factor: 0.5 conforming to IEC 60947-5-1 Annex C |
| Mechanical durability |
30000000 cycles |
30000000 times |
25000000 times |
30000000 times |
| Width |
40 mm |
40 mm |
40 mm |
40 mm |
| Height |
77 mm |
77 mm |
77 mm |
77 mm |
| Depth |
44 mm |
44 mm |
44 mm |
44 mm |
| Product weight |
0.485 kg |
0.49kg |
0.455 kg |
0.43 kg |
| Terminals description ISO n°1 |
(13-14)NO |
(21-22)NC |
(13-14)NO |
(13-14)NO |
|
(21-22)NC |
(13-14)NO |
(21-22)NC |
(21-22)NC |
| Environment |
|
|
|
|
| Shock resistance |
50 gn for 11 ms conforming to IEC 60068-2-27 |
50 gn for 11 ms conforming to IEC 60068-2-27 |
50 gn for 11 ms conforming to IEC 60068-2-27 |
50 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance |
25 gn (f= 10…500 Hz) conforming to IEC 60068-2-6 |
25 gn (f= 10…500 Hz) conforming to IEC 60068-2-6 |
25 gn (f= 10…500 Hz) conforming to IEC 60068-2-6 |
25 gn (f= 10…500 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection |
IP66 conforming to IEC 60529 |
IP66 Compliant with screwed |
IP66 Compliant with screwed |
IP66 Compliant with screwed |
| IK degree of protection |
IK07 conforming to EN 50102 |
IK07 conforms to EN 50102 |
IK07 conforms to EN 50102 |
IK07 conforms to EN 50102 |
| Overvoltage category |
Class I conforming to IEC 61140 |
Class I conforms to IEC 61140 |
Class I conforms to IEC 61140 |
Class I conforms to IEC 61140 |
|
Class I conforming to NF C 20-030 |
Class I conforms to NF C 20-030 |
Class I conforms to NF C 20-030 |
Class I conforms to NF C 20-030 |
| Ambient air temperature for operation |
-25…70 °C |
-25…70°C |
-25…70°C |
-25…70°C |
| Ambient air temperature for storage |
-40…70 °C |
-40…70°C |
-40…70°C |
-40…70°C |
| Protective treatment |
TH |
TH |
TH |
TH |
| Product certifications |
CCC |
CCC |
CCC |
CSA |
|
|
|
|
UL |
|
|
|
|
CCC |
| Standards |
EN 60947-5-1 |
CENELEC EN 50041 |
EN 60204-1 |
EN 60204-1 |
|
EN 60204-1 |
CSA C22.2 No 14 |
IEC 60204-1 |
EN 60947-5-1 |
|
IEC 60204-1 |
EN 60204-1 |
IEC 60947-5-1 |
CENELEC EN 50041 |
|
IEC 60947-5-1 |
IEC 60204-1 |
EN 60947-5-1 |
UL 508 |
|
CENELEC EN 50041 |
IEC 60947-5-1 |
CSA C22.2 No 14 |
IEC 60204-1 |
|
UL 508 |
UL 508 |
CENELEC EN 50041 |
CSA C22.2 No 14 |
|
CSA C22.2 No 14 |
EN 60947-5-1 |
UL 508 |
IEC 60947-5-1 |
| Packing Units |
|
|
|
|
| Unit Type of Package 1 |
PCE |
PCE |
PCE |
PCE |
| Number of Units in Package 1 |
1 |
1 |
1 |
1 |
| Package 1 Height |
20.5 cm |
4.218 cm |
440.0g |
4.3cm |
| Package 1 Width |
4.1 cm |
6.882 cm |
4.2 cm |
6.9 cm |
| Package 1 Length |
5.6 cm |
12.855 cm |
6.862 cm |
13.0cm |
| Package 1 Weight |
475.62 g |
470.0g |
12.817 cm |
425.0g |
| Unit Type of Package 2 |
S02 |
S02 |
S02 |
S02 |
| Number of Units in Package 2 |
21 |
30 |
30 |
18 |
| Package 2 Height |
15.0 cm |
15.0cm |
13.671kg |
15.0cm |
| Package 2 Width |
30.0 cm |
30.0cm |
15.0cm |
30.0cm |
| Package 2 Length |
40.0 cm |
40.0cm |
30.0cm |
40.0cm |
| Package 2 Weight |
10.38 kg |
14.82kg |
40.0cm |
7.985 kg |
| Unit Type of Package 3 |
P06 |
PAL |
PAL |
|
| Number of Units in Package 3 |
336 |
480 |
480 |
|
| Package 3 Length |
80.0 cm |
80.0cm |
60.0cm |
|
| Package 3 Weight |
176.08 kg |
251.2kg |
80.0cm |
|
| Contract warranty |
|
|
|
|
| Warranty |
|
18 months |
18 months |
18 months |
