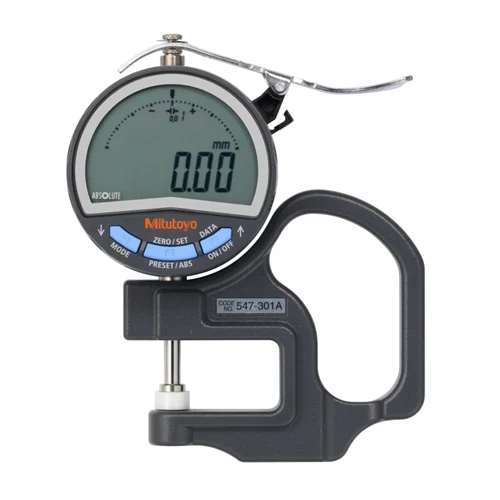

Mitutoyo 547-300A Digital Thickness Gauge, Flat Type

Technical Overview

Precise digital thickness gauge with 0.0005"/0.01 mm step, ±20 μm accuracy, IP42 protection, ceramic flat contacts, and Digimatic S1 output.

Key Features

Digital and Inch/Metric measurement capabilities
Equipped with flat ceramic disc contact points
High accuracy of ±20 μm and parallelism of 0.0005"/0.01 mm
IP42 protection rating against dust and splashing water
Max. measuring depth of 30 mm with a gentle measuring force of ≤ 1.5 N
LCD display with 11 mm character height for clear readings
ABS/INC and GO/±NG judgement functions for efficient inspection
Long battery life of approximately 2700 hours from a single CR2032 battery
Supports DATA/HOLD, MAX/MIN/RANGE, and calculation functions

Technical Specification Matrix

Parameter	Value
Digital/Analog	Digital
Inch-Metric	Inch/Metric
Functions	With indicator ID-C No.543-712BS(ASME/ANSI Type)
Range	0 - 0.4"
Type	Ceramic disc contact points
Digital step	0.0005"/0.01 mm
Accuracy	±20 μm
Parallelism	0.0005"/ 0.01 mm
Protection	IP42
Indicator No.	543-712-10BS
Max. measuring depth	30 mm
Measuring force	≤ 1.5 N
Data output	Yes
Display	LCD, character height 11 mm
Alarm	Low voltage, setting errors, sensor error, display overflow a.s.o.
Power supply	1 battery CR2032 (3V)
Battery life	Continuous use: approx. 2700h
ON/OFF	Yes
ABS / INC (INC ZERO)	Yes
Function lock	Yes
GO/±NG judgement	Yes
DATA/HOLD	Yes
Counting direction switchable	Yes
MAX/MIN/RANGE	Yes
Calculation function (with formula)	Yes
Digimatic S1 Bidirectional interface	Yes
Analog bar resolution selection	Yes
Auto Power OFF setting	Yes
Analog bar resolution switchable	Yes
Customizing keys	Yes
Calibration warning function	Yes
Digital step switchable	No
Digital Scale	Electrostatic capacitance type absolute linear encoder
Physical Weight (kg)	0.25
Dimensions L x W x H (cm)	6.5 x 2.36 x 8.5

Industrial Applications

1. Quality Control in Paper and Packaging Industry

Precisely measure the thickness of paper, cardboard, and other packaging materials to ensure consistency and compliance with manufacturing specifications. The flat ceramic contact points prevent material deformation.

Problem Solved

Ensuring uniform material thickness is critical for product quality, machine compatibility, and customer satisfaction in printing and packaging processes.

Paper thickness measurementPackaging material inspectionQuality controlFlat contact pointsDigimatic data output

2. Film and Sheet Material Manufacturing Inspection

Conduct non-destructive thickness measurements on delicate plastic films, foils, or composite sheets used in electronics, medical, or specialized industrial applications. The low measuring force prevents damage to sensitive surfaces.

Problem Solved

Maintaining precise film thickness is essential for functional performance, optical properties, barrier characteristics, and structural integrity of thin-film products.

Film thickness measurementThin material inspectionNon-destructive testingLow measuring forcePrecision manufacturing

3. Textile and Non-Woven Fabric Analysis

Accurately measure the thickness of textiles, non-woven fabrics, and compressible materials without causing significant compression or distortion. The 0.01 mm resolution provides fine detail for material characterization.

Problem Solved

Verifying the specified thickness of fabrics is crucial for product consistency, insulation properties, absorption rates, and overall textile quality in production.

Textile thicknessFabric measurementNon-woven materialsMaterial characterizationCompressible material gauging
