Mitutoyo Caliper Jaw Inside Micrometer – Series 145 – 5-30mm
"Email us for pricing at sales@inosaki.com!"
Description: Mitutoyo Caliper Jaw Inside Micrometer, Manufacturer Part Number 145-185
The Caliper Jaw Inside Micrometer offers you the following benefits:
- Carbide measuring faces
- A setting standard (optional) is needed to accurately set the micrometer to the reference point.
Mitutoyo Caliper Jaw Inside Micrometer Feature:
[fusion_table fusion_table_type=”1″ fusion_table_rows=”” fusion_table_columns=”” margin_top=”1 ps” margin_right=”1 ps” margin_bottom=”1 ps” margin_left=”1 ps” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” class=”” id=”” animation_type=”” animation_direction=”left” animation_color=”” hue=”” saturation=”” lightness=”” alpha=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]
| Inch-Metric: |
Metric
|
| Range: |
5 – 30 mm
|
| Graduation: |
0,01 mm
|
| Maximum Permissible Error J MPE: |
±5 µm
|
| Measuring spindle: |
With spindle lock, spindle pitch 0,5 mm
|
| Measuring face: |
Carbide tipped
|
| Measuring force: |
1-6 N
|
| Delivered: |
Including box, key
|
| Digital/Analog: |
Analog
|
| Mass: |
130 g
|
[/fusion_table]

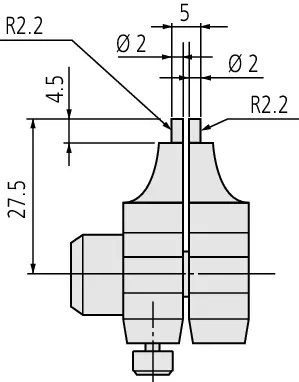

Mitutoyo Caliper Jaw Inside Micrometer Dimensions
Variants
All products of product family Series 145:
 |
Caliper Jaw Inside Micrometer |  |
Caliper Jaw Inside Micrometer |
| 25-50mm | 225-250mm | ||
| Mitutoyo Caliper Jaw Inside Micrometer Part Number: 145-186 | Mitutoyo Caliper Jaw Inside Micrometer Part Number: 145-218 | ||
| More Info | For more : sales@inosaki.my | ||
 |
Caliper Jaw Inside Micrometer |  |
Caliper Jaw Inside Micrometer |
| 50-75mm | 250-275mm | ||
| Mitutoyo Caliper Jaw Inside Micrometer Part Number: 145-187 | Mitutoyo Caliper Jaw Inside Micrometer Part Number: 145-219 | ||
| More Info | For more : sales@inosaki.my | ||
 |
Caliper Jaw Inside Micrometer |  |
Caliper Jaw Inside Micrometer |
| 75-100mm | 275-300mm | ||
| Mitutoyo Caliper Jaw Inside Micrometer Part Number: 145-188 | Mitutoyo Caliper Jaw Inside Micrometer Part Number: 145-220 | ||
| More Info | For more : sales@inosaki.my | ||
 |
Caliper Jaw Inside Micrometer |  |
Caliper Jaw Inside Micrometer |
| 100-125mm | 0,2-1,2″ | ||
| Mitutoyo Caliper Jaw Inside Micrometer Part Number: 145-189 | Mitutoyo Caliper Jaw Inside Micrometer Part Number: 145-193 | ||
| For more : sales@inosaki.my | For more : sales@inosaki.my | ||
 |
Caliper Jaw Inside Micrometer |  |
Caliper Jaw Inside Micrometer |
| 125-150mm | 1-2″ | ||
| Mitutoyo Caliper Jaw Inside Micrometer Part Number: 145-190 | Mitutoyo Caliper Jaw Inside Micrometer Part Number: 145-194 | ||
| For more : sales@inosaki.my | For more : sales@inosaki.my | ||
 |
Caliper Jaw Inside Micrometer |  |
Caliper Jaw Inside Micrometer |
| 150-175mm | 2-3″ | ||
| Mitutoyo Caliper Jaw Inside Micrometer Part Number: 145-191 | Mitutoyo Caliper Jaw Inside Micrometer Part Number: 145-195 | ||
| For more : sales@inosaki.my | For more : sales@inosaki.my | ||
|
Caliper Jaw Inside Micrometer |  |
Caliper Jaw Inside Micrometer |
| 175-200mm | 3-4″ | ||
| Mitutoyo Caliper Jaw Inside Micrometer Part Number: 145-192 | Mitutoyo Caliper Jaw Inside Micrometer Part Number: 145-196 | ||
| For more : sales@inosaki.my | For more : sales@inosaki.my | ||
 |
Caliper Jaw Inside Micrometer |
|
|
| 200-225mm | |||
| Mitutoyo Caliper Jaw Inside Micrometer Part Number: 145-217 | |||
| For more : sales@inosaki.my | |||
Accessories
Optional accessories:
|
Holder for Series 145 |
| 300400 | |
| For more : sales@inosaki.my | |
 |
Cap for Series 145 |
| 300401 | |
| For more : sales@inosaki.my |
| Weight | 0.13 kg |
|---|
