Compact Type 5 mm Range Small Diameter – Metric
This is a compact, dial indicator with a bezel Ø 40 mm. It offers you the following benefits:
| Digital/Analog: |
Analog
|
| Inch-Metric: |
Metric
|
| Range: |
5 mm
|
| Range per rev.: |
1 mm
|
| Graduation: |
0.01 mm
|
| Graduation: |
0.01
|
| Measuring force: |
0,4-1,4
|
| MPE any 1/10 revolution: |
5 µm
|
| MPE any 1/2 revolution: |
9 µm
|
| MPE any 1 revolution: |
10 µm
|
| MPE measuring range: |
12 µm
|
| H MPE (Hysteresis): |
3 µm
|
| R MPE (Repeatability): |
3 µm
|
| Stem: |
8 mm
|
| Contact point: |
Carbide tipped, thread: M 2.5 x 0.45 mm
|
| Continuous dial: |
Yes
|
| Mass: |
70 g
|
| Functions: |
ISO type
|

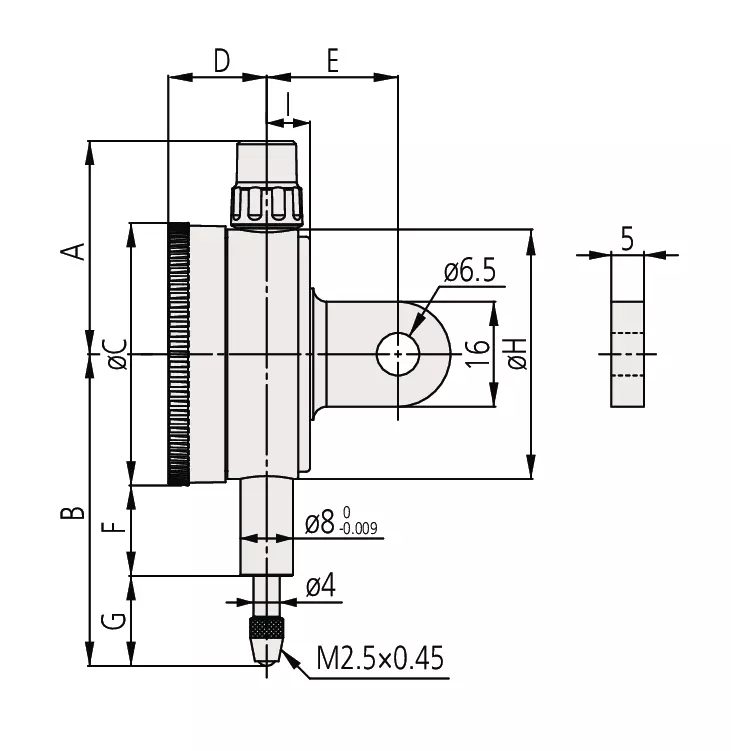

| A: |
32.5 mm
|
| B: |
47.5 mm
|
| C: |
40 mm
|
| D: |
15 mm
|
| E: |
20 mm
|
| F: |
13.8 mm
|
| G: |
13.7 mm
|
| H: |
38 mm
|
| I: |
6.6 mm
|
All products of product family Series 1:
 |
Dial Gauge, Lug Back, ISO Type |
| 5mm, 0,01mm | |
| Mitutoyo Dial Gauge Part Number: 1044A | |
| More Info | |
 |
Dial Gauge, Lug Back, ISO Type |
| Jeweled Bearing, 5mm, 0,01mm | |
| Mitutoyo Dial Gauge Part Number: 1044A-15 | |
| For more : sales@axmatic.com | |
|
Dial Gauge, Flat Back, ISO Type |
| Jeweled Bearing, 5mm, 0,01mm | |
| Mitutoyo Dial Gauge Part Number: 1044AB-15 | |
| For more : sales@axmatic.com | |
 |
Dial Gauge, Lug Back, ISO Type |
| IP63, 5mm, 0,01mm | |
| Mitutoyo Dial Gauge Part Number: 1044A-60 | |
| For more : sales@axmatic.com | |
|
Dial Gauge, Flat Back, ISO Type |
| IP63, 5mm, 0,01mm | |
| Mitutoyo Dial Gauge Part Number: 1044AB-60 | |
| For more : sales@axmatic.com | |
 |
Dial Gauge, Lug Back, ISO Type |
| 5mm, 0,01mm | |
| Mitutoyo Dial Gauge Part Number: 1045A | |
| For more : sales@axmatic.com | |
|
Dial Gauge, Flat Back, ISO Type |
| 5mm, 0,01mm | |
| Mitutoyo Dial Gauge Part Number: 1045AB | |
| For more : sales@axmatic.com |
Optional accessories:
 |
Limit Hands (Green) 2 pcs. |
| Dial Indicator Series 1, Test Indicator | |
| 21AAB363 | |
| For more : sales@axmatic.com | |
| Bezel Clamp for Dial Gauge | |
| Series 1 | |
| 21RZA149 | |
| For more : sales@axmatic.com | |
 |
Spindle Lifting Lever |
| for S-Type and A-Type Series 1 | |
| 902100 | |
| For more : sales@axmatic.com | |
 |
Spindle Lifting Cable |
| for Indicator, L=500mm | |
| 21JZA295 | |
| For more : sales@axmatic.com | |
 |
Spindle Lifting Cable with Auto Stop |
| for Indicator, L=300mm | |
| 21JZA301 | |
| For more : sales@axmatic.com |
Consumable spares:
 |
Contact Element Ball Point, M2,5×0,45 |
| 7,3mm Length, Carbide, Metric | |
| 901312 |
| Weight | 0.070 kg |
|---|
