Standard Type, 2 and 5 mm Range, 0,001 / 0,005 mm Graduation
This is a standard dial indicator. It offers you the following benefits:
| Digital/Analog: |
Analog
|
| Inch-Metric: |
Metric
|
| Range: |
5 mm
|
| Range per rev.: |
0.2 mm
|
| Graduation: |
0.001 mm
|
| Graduation: |
0.001
|
| Measuring force: |
0,4-1,5
|
| MPE any 1/10 revolution: |
4 µm
|
| MPE any 1/2 revolution: |
6 µm
|
| MPE any 1 revolution: |
6.5 µm
|
| MPE measuring range: |
10 µm
|
| H MPE (Hysteresis): |
2.5 µm
|
| R MPE (Repeatability): |
1.5 µm
|
| Stem: |
8 mm
|
| Contact point: |
Carbide tipped, thread: M 2.5 x 0.45 mm
|
| Balanced dial: |
Yes
|
| Mass: |
146 g
|
| fu: |
2 µm
|
| Functions: |
ISO type
|

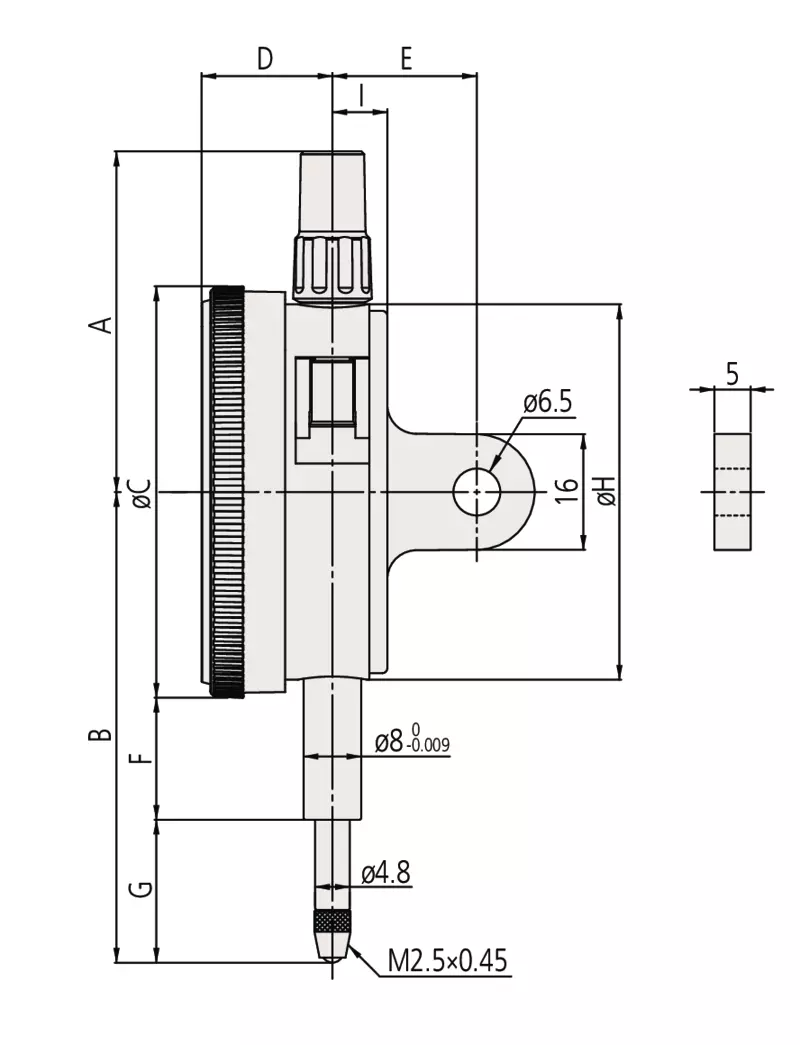

| A: |
47,2 mm
|
| B: |
60.3 mm
|
| C: |
57 mm
|
| D: |
18.1 mm
|
| E: |
20 mm
|
| F: |
16.9 mm
|
| G: |
14.9 mm
|
| H: |
52 mm
|
| I: |
7.6 mm
|
All products of product family Series 2:
 |
Dial Gauge, Lug Back, ISO Type |
| Jeweled Bearing, Shockproof, 2mm, 0,001mm | |
| Mitutoyo Dial Gauge Part Number: 2113A-10 | |
| More Info | |
|
Dial Gauge, Flat Back, ISO Type |
| Jeweled Bearing, Shockproof, 2mm, 0,001mm | |
| Mitutoyo Dial Gauge Part Number: 2113AB-10 | |
| For more : sales@axmatic.com | |
|
Dial Gauge, Lug Back, ISO Type |
| Jeweled Bearing, 5mm, 0,001mm | |
| Mitutoyo Dial Gauge Part Number: 2118A-10 | |
| For more : sales@axmatic.com | |
|
Dial Gauge, Flat Back, ISO Type |
| Jeweled Bearing, 5mm, 0,001mm | |
| Mitutoyo Dial Gauge Part Number: 2118AB-10 | |
| For more : sales@axmatic.com | |
 |
Dial Gauge, Flat Back, ISO Type |
| Jeweled Bearing, 5mm, 0,001mm | |
| Mitutoyo Dial Gauge Part Number: 2119AB-10 | |
| More Info | |
 |
Dial Gauge, Lug Back, ISO Type |
| Jeweled Bearing, 5mm, 0,005mm | |
| Mitutoyo Dial Gauge Part Number: 2124A-10 | |
| For more : sales@axmatic.com | |
|
Dial Gauge, Flat Back, ISO Type |
| Jeweled Bearing, 5mm, 0,005mm | |
| Mitutoyo Dial Gauge Part Number: 2124AB-10 | |
| For more : sales@axmatic.com |
Optional accessories:
 |
Limit Hands (green) 2pcs |
| Dial Indicator Series 2/3/4 | |
| 21AZB195 | |
| For more : sales@axmatic.com | |
 |
Bezel Clamp for Dial Gauge |
| Metric, Series 2/3/4 | |
| 21AZB148 | |
| For more : sales@axmatic.com | |
 |
Spindle Lifting Lever |
| for Digital Indicator, A-Type Dial Indicator Series 2/3/4 | |
| 21EZA198 | |
| More Info | |
 |
Spindle Lifting Cable |
| for Indicator, L=500mm | |
| 21JZA295 | |
| For more : sales@axmatic.com | |
 |
Spindle Lifting Cable with Auto Stop |
| for Indicator, L=300mm | |
| 21JZA301 | |
| More Info |
Consumable spares:
 |
Contact Element Ball Point, M2,5×0,45 |
| 7,3mm Length, Carbide, Metric | |
| 901312 | |
| For more : sales@axmatic.com |
| Weight | 0.146 kg |
|---|
