Mitutoyo Dial Height Gauge, Digital Counter – Series 192 – 0-600mm

Original price was: $ 1,521.45.Current price is: $ 1,187.03.

SKU Mitutoyo 192-132 Category

Description: Mitutoyo Dial Height Gauge, Manufacturer Part Number 192-132

A dial/mechanical-digit-counter Mitutoyo height gauge, twin column design. Two separate counters provide independently settable up/down measurement capability, with the dial gauge indicating the last decimal fractions.



Mitutoyo Dial Height Gauge Features:

Digital/Analog:
Analog
Range:
0 – 600 mm
Digital step:
0,01 mm
Graduation:
0,01 mm
Max. Permissible Error E MPE:
±0,05 mm
Maximum Permissible Error J MPE:
±0,05 mm
Inch-Metric:
Metric
Delivered:
Including scriber, scriber clamp and cover
Mass:
9.8 kg

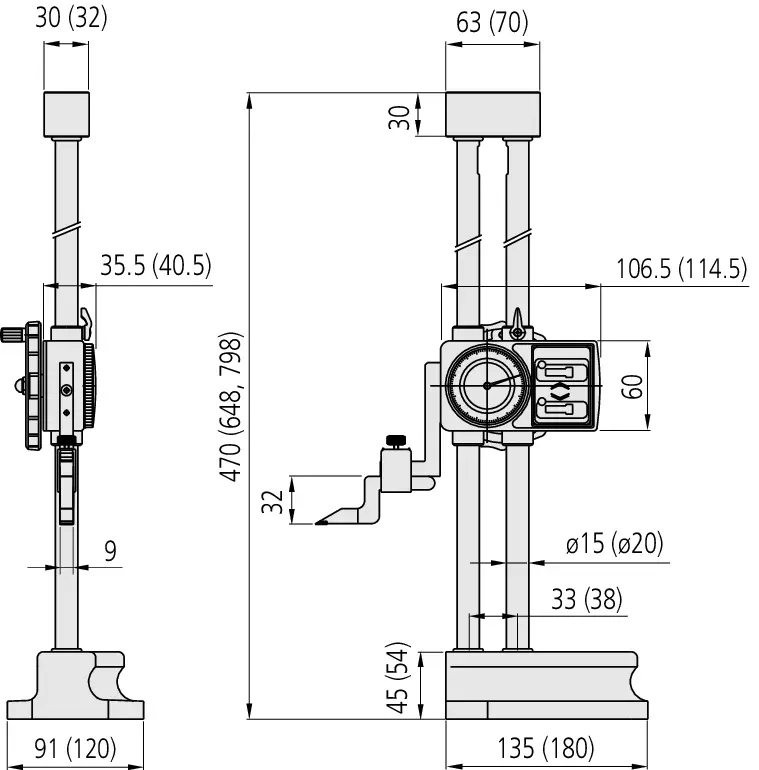

Mitutoyo Dial Height Gauge Dimensions

192-130_d3.eps



Variants

All products of product family Series 192:

Dial Height Gauge, Digital Counter
0-300mm
Mitutoyo Dial Height Gauge Part Number: 192-130
More Info
Dial Height Gauge, Digital Counter
0-450mm
Mitutoyo Dial Height Gauge Part Number: 192-131
For more : sales@inosaki.com
Dial Height Gauge, Digital Counter
0-1000mm
Mitutoyo Dial Height Gauge Part Number: 192-133
For more : sales@inosaki.com
Dial Height Gauge, Digital Counter
0-12″
Mitutoyo Dial Height Gauge Part Number: 192-150
For more : sales@inosaki.com
Dial Height Gauge, Digital Counter
0-18″
Mitutoyo Dial Height Gauge Part Number: 192-151
For more : sales@inosaki.com
Dial Height Gauge, Digital Counter
0-24″
Mitutoyo Dial Height Gauge Part Number: 192-152
For more : sales@inosaki.com
Dial Height Gauge, Digital Counter
0-40″
Mitutoyo Dial Height Gauge Part Number: 192-153
For more : sales@inosaki.com



Accessories

Optional accessories:

951144_z.webp Center Master
for 9x9mm
951144
For more : sales@inosaki.com
depth_gage_attachement.eps Depth Gauge Attachment
for 9×9 mm
900764
For more : sales@inosaki.com
900872_z.webp Contact Sensor
for Height Gauges
900872
For more : sales@inosaki.com
953638_z.webp Holding Bar for Swivel Clamp
9x9mm, 50mm Length
953638
For more : sales@inosaki.com
900209_z.webp Holding Bar for Swivel Clamp
9x9mm, 100mm Length
900209
For more : sales@inosaki.com
902053.webp Swivel Clamp
for Ø6/8mm, Dovetail
902053
For more : sales@inosaki.com

Standard accessories:

05gza033_z.webp Scriber Clamp
for 9x9mm Scriber
05GZA033
For more : sales@inosaki.com
07gza000_frei.webp Carbide Tipped Scriber
9x9mm, 80mm Length
07GZA000
For more : sales@inosaki.com
