This Dial Indicator Thickness Gauge enables you to measure tube wall thickness, film/paper etc. with flat contact points, resp. lens thickness or groove depth.
| Inch-Metric: |
Metric
|
| Functions: |
Large jaw capacity and ceramic disc contact points
|
| Range: |
0 – 10
|
| Graduation: |
0.01 mm
|
| Graduation: |
0.01
|
| Accuracy: |
±0,015 mm
|
| Measuring force: |
≤ 1,4 N
|
| Parallelism: |
5 µm
|
| Indicator No.: |
2,046AB
|

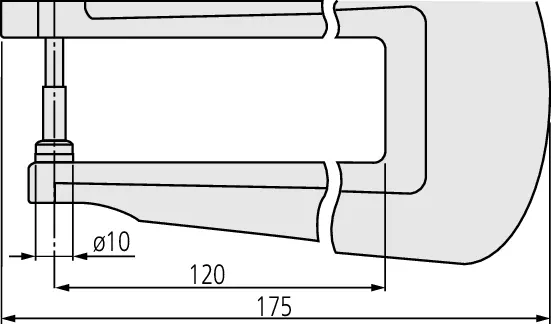

| Max. measuring depth: |
120 mm
|
| Contact point: |
Thread M 2.5 x 0.45 mm
|
| Mass: |
355 g
|
| Type: |
Large jaw capacity and ceramic disc contact points
|
 |
Dial Indicator Thickness Gauge |  |
Dial Indicator Thickness Gauge |
| 0-10mm, 0,01mm, Tube Thickness | 0-0,05″, 0,0001″, Standard | ||
| Mitutoyo Dial Indicator Thickness Gauge Part Number: 7360A | Mitutoyo Dial Indicator Thickness Gauge Part Number: 7326S | ||
| More Info | For more : sales@axmatic.com | ||
| Dial Indicator Thickness Gauge | Dial Indicator Thickness Gauge | ||
| 0-10mm, 0,01mm, Standard, Ceramic Contact Elements | 0-0,5″, 0,001″, Standard, Ceramic Contact Elements | ||
| Mitutoyo Dial Indicator Thickness Gauge Part Number: 7301A | Mitutoyo Dial Indicator Thickness Gauge Part Number: 7300A | ||
| More Info | For more : sales@axmatic.com | ||
 |
Dial Indicator Thickness Gauge | Dial Indicator Thickness Gauge | |
| 0-10mm, 0,01mm, 120mm Throat, Ceramic Contact Elements | 0-1″, 0,001″, Standard, Ceramic Contact Elements | ||
| Mitutoyo Dial Indicator Thickness Gauge Part Number: 7321A | Mitutoyo Dial Indicator Thickness Gauge Part Number: 7304A | ||
| More Info | For more : sales@axmatic.com | ||
 |
Dial Indicator Thickness Gauge | Dial Indicator Thickness Gauge | |
| 0-20mm, 0,01mm, 120mm Throat, Ceramic Contact Elements | 0-1″, 0,001″ 4,72″ Throat, Ceramic Contact Elements | ||
| Mitutoyo Dial Indicator Thickness Gauge Part Number: 7323A | Mitutoyo Dial Indicator Thickness Gauge Part Number: 7322A | ||
| More Info | For more : sales@axmatic.com | ||
 |
Dial Indicator Thickness Gauge | Dial Indicator Thickness Gauge | |
| 0-20mm, 0,01mm, Standard, Ceramic Contact Elements | 0-0,5″, 0,001″, Lens Thickness | ||
| Mitutoyo Dial Indicator Thickness Gauge Part Number: 7305A | Mitutoyo Dial Indicator Thickness Gauge Part Number: 7312A | ||
| More Info | For more : sales@axmatic.com | ||
 |
Dial Indicator Thickness Gauge |  |
Dial Indicator Thickness Gauge |
| 0-10mm, 0,01mm, Lens Thickness | 0-0,5″”, 0,001, Groove Depth, Blade Contact Elements | ||
| Mitutoyo Dial Indicator Thickness Gauge Part Number: 7313A | Mitutoyo Dial Indicator Thickness Gauge Part Number: 7316A | ||
| More Info | For more : sales@axmatic.com | ||
 |
Dial Indicator Thickness Gauge |  |
Dial Indicator Thickness Gauge |
| 0-10mm, 0,01mm, Groove Depth, Blade Contact Elements | 0-0,4″, 0,001″, Tube Thickness | ||
| Mitutoyo Dial Indicator Thickness Gauge Part Number: 7315A | Mitutoyo Dial Indicator Thickness Gauge Part Number: 7361S | ||
| More Info | For more : sales@axmatic.com |
Optional accessories:
 |
Limit Hands (green) 2pcs |
| Dial Indicator Series 2/3/4 | |
| 21AZB195 | |
| For more : sales@axmatic.com | |
 |
Bezel Clamp for Dial Gauge |
| Metric, Series 2/3/4 | |
| 21AZB148 | |
| For more : sales@axmatic.com |
Consumable spares:
 |
Spindle Lifting Lever |
| for S-Type Series 2,3,4 up to 10mm/0,4″ | |
| 21AZB149 | |
| More Info | |
|
Spindle Lifting Lever |
| for S-Type Series 2,3 >10/0,4″ up to 20mm/0,8″ | |
| 21AZB150 | |
| More Info |
| Weight | 0.355 kg |
|---|
