Mitutoyo Digital ABS Height Gauge – Series 570 – 0-300 mm, with Handwheel
"Email us for pricing at sales@inosaki.com!"
Description: Mitutoyo Digital ABS Height Gauge, Manufacturer Part Number 570-402
This Digimatic height gauge is very precise and reliable, and offers you the following benefits:
- Its built-in ABSOLUTE linear encoder means you don‘t have to set the reference point at every power-on, improving reliability as over-speed errors cannot occur.
- It comes with large and smooth-acting slider hand wheel
- A carbide-tipped scriber is provided.
- A large display and buttons for easy operability.
Mitutoyo Digital ABS Height Gauge Feature:
[fusion_table fusion_table_type=”1″ fusion_table_rows=”” fusion_table_columns=”” margin_top=”1 ps” margin_right=”1 ps” margin_bottom=”1 ps” margin_left=”1 ps” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” class=”” id=”” animation_type=”” animation_direction=”left” animation_color=”” hue=”” saturation=”” lightness=”” alpha=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]
| Digital/Analog: |
Digital
|
| Range: |
0 – 300 mm
|
| Digital step: |
0,01 mm
|
| Max. Permissible Error E MPE: |
±0,03 mm
|
| Scale: |
ABSOLUTE capacitance type linear encoder
|
| Display: |
LCD, character height 12 mm
|
| Max. response speed: |
Unlimited
|
| ON/OFF: |
Yes
|
| ABS / INC (INC ZERO): |
Yes
|
| ORIGIN (ABS-Zero): |
Yes
|
| DATA (output with cable) / HOLD (display value): |
Yes
|
| Low voltage alarm: |
Yes
|
| Inch-Metric: |
Metric
|
| Delivered: |
Including 1 battery, scriber and scriber clamp
|
| Power supply: |
1 battery SR-44
|
| Battery life: |
Approx. 5 years under normal use
|
| Mass: |
4.6 kg
|
[/fusion_table]

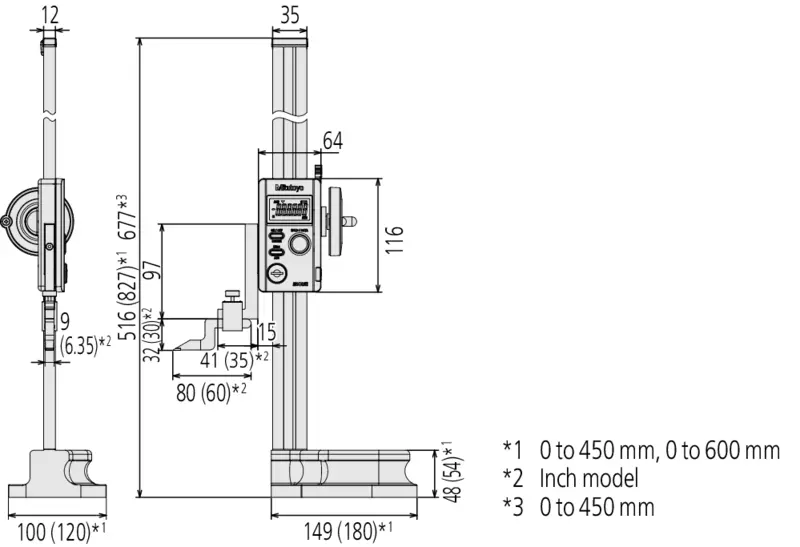

Mitutoyo Digital ABS Height Gauge Dimensions
Accessories
Optional accessories:
 |
Digimatic Cable, Flat Straight Type |
| 1m | |
| 905338 | |
| More Info | |
|
Digimatic Cable, Flat Straight Type |
| 2m | |
| 905409 | |
| More Info | |
 |
USB Input Tool Direct (Digimatic USB) |
| Digi/Digi2, Flat Straight Type | |
| 06AFM380F | |
| More Info | |
 |
U-WAVE-T, Buzzer Type |
| Wireless Transmitter | |
| 02AZD880G | |
| For more : sales@inosaki.my | |
 |
U-WAVE-T, IP67 Type |
| Wireless Transmitter | |
| 02AZD730G | |
| For more : sales@inosaki.my | |
 |
U-WAVE-T Connection Cable F |
| Flat Straight Type | |
| 02AZD790F | |
| For more : sales@inosaki.my | |
 |
Holding Bar for Swivel Clamp |
| 9x9mm, 50mm Length | |
| 953638 | |
| For more : sales@inosaki.my | |
 |
Holding Bar for Swivel Clamp |
| 9x9mm, 100mm Length | |
| 900209 | |
| For more : sales@inosaki.my | |
 |
Swivel Clamp |
| for D=4/8mm, Dovetail | |
| 900321 | |
| For more : sales@inosaki.my | |
 |
Center Master |
| for 9x9mm | |
| 951144 | |
| For more : sales@inosaki.my | |
 |
Depth Gauge Attachment |
| for 9×9 mm | |
| 900764 | |
| For more : sales@inosaki.my |
Standard accessories:
 |
Scriber Clamp |
| for 9x9mm Scriber | |
| 05GZA033 | |
| For more : sales@inosaki.my | |
 |
Carbide Tipped Scriber |
| 9x9mm, 80mm Length | |
| 07GZA000 | |
| For more : sales@inosaki.my | |
 |
Vinyl Cover Series 192 |
| 300mm | |
| 450291 | |
| For more : sales@inosaki.my |
Spare parts
Consumable spares:
 |
Battery SR44 1.5V |
| 938882 | |
| For more : sales@inosaki.my |
| Weight | 4.6 kg |
|---|
