Mitutoyo Digital ABS Height Gauge – Series 570 – 0-600 mm, with Handwheel

Name: Mitutoyo Digital ABS Height Gauge - Series 570 - 0-600 mm, with Handwheel
SKU: Mitutoyo 570-404
Price: 957.03 USD
Availability: InStock

SKU Mitutoyo 570-404 Category Mitutoyo Height Gauges

Description: Mitutoyo Digital ABS Height Gauge, Manufacturer Part Number 570-404

This Digimatic height gauge is very precise and reliable, and offers you the following benefits:

Its built-in ABSOLUTE linear encoder means you don‘t have to set the reference point at every power-on, improving reliability as over-speed errors cannot occur.
It comes with large and smooth-acting slider hand wheel
A carbide-tipped scriber is provided.
A large display and buttons for easy operability.

Mitutoyo Digital ABS Height Gauge Feature:

Digital/Analog:	Digital
Range:	0 – 600 mm
Digital step:	0,01 mm
Max. Permissible Error E MPE:	±0,05 mm
Scale:	ABSOLUTE capacitance type linear encoder
Display:	LCD, character height 12 mm
Max. response speed:	Unlimited
ON/OFF:	Yes
ABS / INC (INC ZERO):	Yes
ORIGIN (ABS-Zero):	Yes
DATA (output with cable) / HOLD (display value):	Yes
Low voltage alarm:	Yes
Inch-Metric:	Metric
Delivered:	Including 1 battery, scriber and scriber clamp
Power supply:	1 battery SR-44
Battery life:	Approx. 5 years under normal use
Mass:	6.4 kg

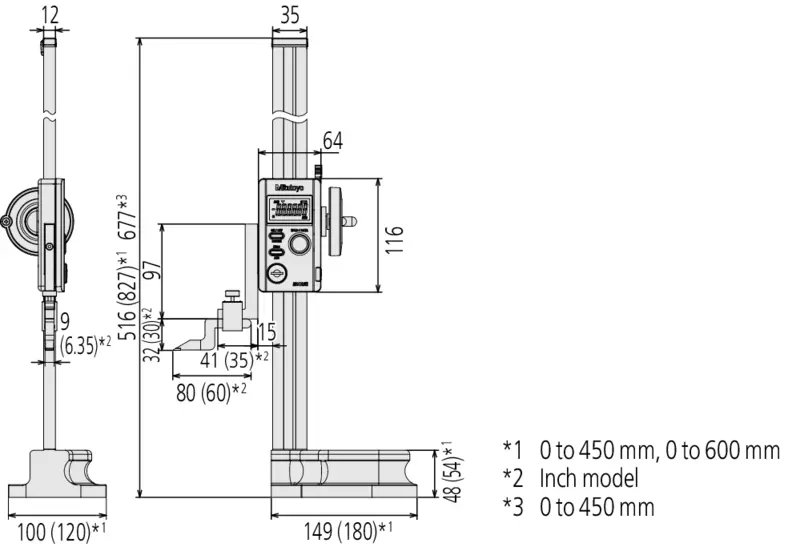

Mitutoyo Digital ABS Height Gauge Dimensions

Variants

All products of product family Series 570:

	Digital ABS Height Gauge
	0-300 mm, with Handwheel
	Mitutoyo Digital ABS Height Gauge Part Number: 570-402
	More Info
	Digital ABS Height Gauge
	0-12″, with Handwheel
	Mitutoyo Digital ABS Height Gauge Part Number: 570-412
	For more : sales@axmatic.com
	Digital ABS Height Gauge
	0-18″, with Handwheel
	Mitutoyo Digital ABS Height Gauge Part Number: 570-413
	For more : sales@axmatic.com
	Digital ABS Height Gauge
	0-24″, with Handwheel
	Mitutoyo Digital ABS Height Gauge Part Number: 570-414
	For more : sales@axmatic.com

Accessories

Optional accessories:

	Digimatic Cable, Straight, Data Button,
	1m
	959149
	For more : sales@axmatic.com
	Digimatic Cable, Straight, Data Button,
	2m
	959150
	For more : sales@axmatic.com
	USB Input Tool Direct (Digimatic USB)
	Digi/Digi2, Straight, with Data Button
	06AFM380C
	For more : sales@axmatic.com
	U-WAVE-T, IP67 Type
	Wireless Transmitter
	02AZD730G
	For more : sales@axmatic.com
	U-WAVE-T, Buzzer Type
	Wireless Transmitter
	02AZD880G
	SFor more : sales@axmatic.com
	U-WAVE-T Connection Cable C
	Straight, with Data Button
	02AZD790C
	For more : sales@axmatic.com
	Data Hold Unit
	959143
	For more : sales@axmatic.com
