Name: Mitutoyo Digital Indicator ID-C - Series 543 - Inch/Metric, 2", 0,00002", Flat Back Plate
SKU: Mitutoyo 543-731B
Price: 593.17 USD
Availability: InStock

SKU Mitutoyo 543-731B Category Mitutoyo Absolute Digimatic Indicators

Description: Mitutoyo Digital Indicator, Manufacturer Part Number 543-731B

This is a multifunction standard indicator that is reliable and easy to use.

Bidirectional communication e.g. to perform parameter setting from a PC (Digimatic S 1 interface) is possible
The ABSOLUTE sensor means you don‘t have to carry out origin setting every time you power it on, saving you time and hassle.
Excellent visibility with a large digital/analog display
Model with 0,5 µm digital step is available
Measurements such as simple calculation and peak detection are possible
Equipped with a calibration schedule warning function
GO/±NG judgement is performed by setting the upper and lower tolerances.
Display 330° rotatable.
A function lock protects the display against unauthorised use.

Mitutoyo Digital Indicator Feature:

Digital/Analog:	Digital
Inch-Metric:	Inch/Metric
Range:	2″/50.8 mm
Digital step:	0.00002″/0.00005″/0.0001″/0.0005″/0.0005 mm/0.0001 mm/0.01 mm
Max. Permissible Error E MPE (Total Range):	±0.00020″/0.005 mm
H MPE (Hysteresis):	0.00008″/0.002 mm
R MPE (Repeatability):	0.00008″/0.002 mm
Protection:	IP42
Type:	EN ISO Standard
Scale:	Electrostatic capacitance type absolute linear encoder
Display:	LCD, character height 11 mm, 330° rotatable
Max. response speed:	Unlimited
Measurement frequency (MAX/MIN/RANGE):	50 times/s
Alarm:	Low voltage, setting errors, sensor error, display overflow a.s.o.
Stem Ø:	8 mm
Contact point:	Carbide ball, thread: M2.5×0.45
Power supply:	1 battery CR2032
Battery life:	Approx. 2700 hours (continuous use)
DATA/HOLD:	Yes
PRESET:	Yes
Digimatic data output:	Yes
Digimatic S1 Bidirectional interface:	Yes
ON/OFF:	Yes
Analog bar resolution switchable:	Yes
Function lock:	Yes
GO/±NG judgement:	Yes
ABS / INC (INC ZERO):	Yes
Analog bar resolution selection:	Yes
Auto Power OFF setting:	Yes
Calculation function (with formula):	Yes
Customizing keys:	Yes
Counting direction switchable:	Yes
Inch/Metric switchable:	Yes
Calibration warning function:	Yes
Digital step switchable:	Yes
Mass:	260 g
Delivered:	Including CR-2032 battery, battery lid opener, spindle lifting handle (25,4 and 50,8 mm models), weight (low force models), certificate of inspection

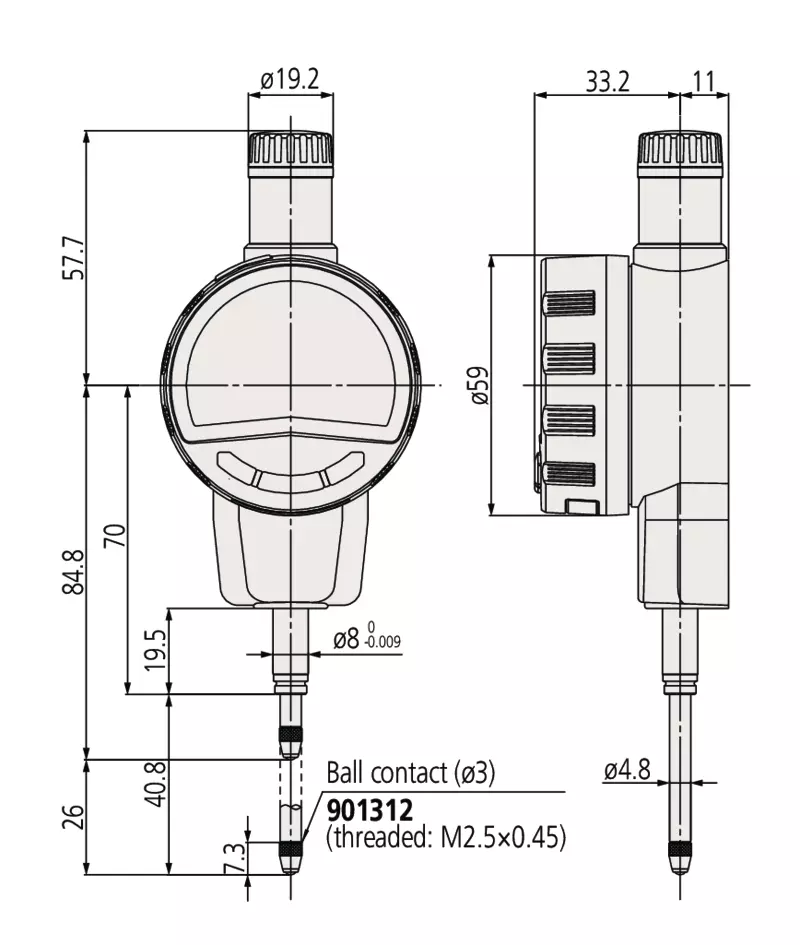

Mitutoyo Digital Indicator Dimensions
