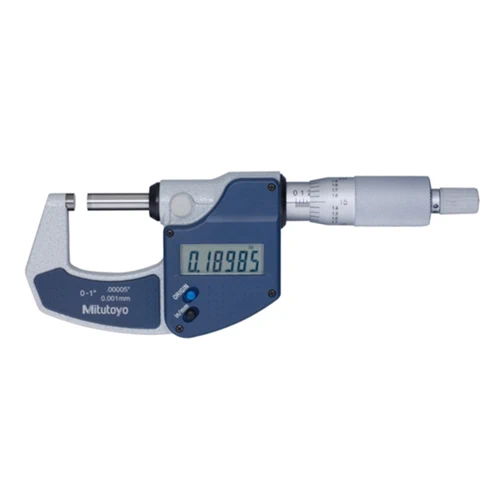

A basic, cost-effective Mitutoyo digital micrometer. The highly stable frame incorporates a heat shield to preserve accuracy over extended measuring sessions. A ratchet stop guarantees repeatable measurement.
| Digital/Analog: |
Digital
|
| Inch-Metric: |
Inch/Metric
|
| Range: |
0 – 1 “
|
| Digital step: |
0,00005″/0,001 mm
|
| Maximum Permissible Error J MPE: |
±0,0001″
|
| Flatness: |
0,000012″
|
| Parallelism: |
0,00008”
|
| Display: |
LCD, character height 7.5 mm
|
| Measuring face: |
Carbide-tipped, micro-lap finish
|
| Mass: |
275 g
|
| Measuring spindle: |
ø 6.35 mm, spindle pitch 0.635 mm
|
| Scale: |
Thimble and sleeve satin chrome finish, ø18 mm
|
| Measuring force: |
5 – 10 N
|
| Power supply: |
1 battery SR-44
|
| Battery life: |
Approx. 2,4 years
|
| Delivered: |
Including box, key, 1 battery,
certificate of inspection |
| Auto Power OFF after 20 min. non use: |
Yes
|
| Function lock: |
Yes
|
All products of product family Series 293:
 |
Digital Micrometer |
| 0-25mm, w/o Data Output | |
| Mitutoyo Digital Micrometer Part Number: 293-821-30 | |
| More Info | |
|
Digital Micrometer, Inch/Metric |
| 0-1″, w/o Output, Friction Thimble | |
| Mitutoyo Digital Micrometer Part Number: 293-832-30 | |
| For more : sales@axmatic.com |
Optional accessories:
 |
Micrometer Stand, 45° Angle Type |
| for Micrometer 0-50mm/0-2″ | |
| 156-105-10 | |
| For more : sales@axmatic.com | |
 |
Micrometer Stand, Adjustable Angle Type |
| for Micrometer 0-100mm/0-4″ | |
| 156-101-10 | |
| More Info |
Consumable spares:
 |
Battery SR44 1.5V |
| 938882 |
| Weight | 0.275 kg |
|---|
