Specifications

[fusion_table fusion_table_type=”1″ fusion_table_rows=”” fusion_table_columns=”” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” class=”” id=”” animation_type=”” animation_direction=”left” animation_color=”” hue=”” saturation=”” lightness=”” alpha=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]

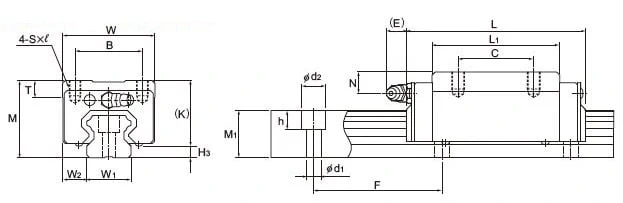

Model No. Outer dimensions Block dimensions Rail dimensions Basic load rating
Radial
HeightM WidthW LengthL B C S x l Pitch
F		 d1xd2xh Dynamic
C		 Static
C0
mm mm mm mm mm mm mm mm kN kN
HSR15R 28 34 56.5 26 26 M4 x 5 60 4.5×7.5×5.3 10.9 15.7
HSR20R 30 44 74 32 36 M5 x 6 60 6×9.5×8.5 19.8 27.4
HSR25R 40 48 83.1 35 35 M6 x 8 60 7x11x9 27.6 36.4
HSR30R 45 60 98 40 40 M8 x 10 80 9x14x12 40.5 53.7
HSR35R 55 70 109.4 50 50 M8 x 12 80 9x14x12 53.9 70.2
HSR45R 70 86 139 60 60 M10 x 17 105 14x20x17 82.2 101
HSR55R 80 100 163 75 75 M12 x 18 120 16x23x20 121 146
HSR65R 90 126 186 76 70 M16 x 20 150 18x26x22 195 228

[/fusion_table]



Model Number Coding

[fusion_table fusion_table_type=”1″ fusion_table_rows=”” fusion_table_columns=”” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” class=”” id=”” animation_type=”” animation_direction=”left” animation_color=”” hue=”” saturation=”” lightness=”” alpha=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]

Model Size Block Type Block Code*1 Seal Type*2 Radial Clearance*3
HSR 20 HB 1 SS C1 BLOCK
HSR 15 A 1 SS No Symbol: Normal
20 B C1: Light Preload
25 C
30 R
35 YR
45 LA
55 LB
65 LC
LR
CA
CB
HA
HB

[/fusion_table]



Dimensions N/A
Model

HSR15R, HSR20R, HSR25R, HSR30R, HSR35R, HSR45R
