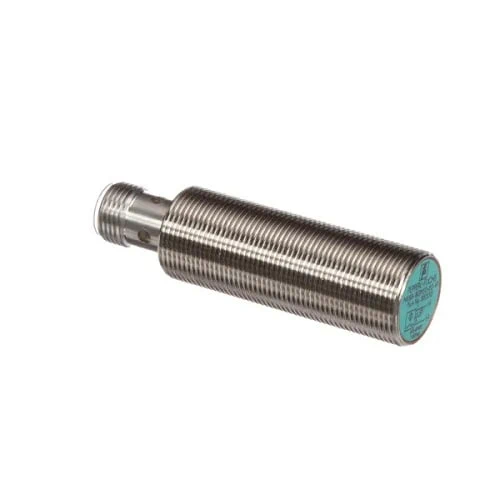

| General specifications |
| Switching function |
Normally open (NO) |
| Output type |
NPN |
| Rated operating distance |
8 mm |
| Installation |
flush |
| Output polarity |
DC |
| Assured operating distance |
0 … 6.48 mm |
| Actuating element |
mild steel, e. g. 1.0037, SR235JR (formerly St37-2)
24 mm x 24 mm x 1 mm |
| Reduction factor rAl |
0.38 |
| Reduction factor rCu |
0.35 |
| Reduction factor r304 |
0.74 |
| Reduction factor rBrass |
0.47 |
| Output type |
3-wire |
| Nominal ratings |
| Operating voltage |
5 … 36 V |
| Switching frequency |
0 … 1350 Hz |
| Hysteresis |
typ. 5 % |
| Reverse polarity protection |
reverse polarity protected |
| Short-circuit protection |
pulsing |
| Voltage drop |
≤ 1 V |
| Operating current |
0 … 200 mA |
| Off-state current |
max. 20 µA |
| No-load supply current |
≤ 10 mA |
| Time delay before availability |
≤ 10 ms |
| Switching state indicator |
Multihole-LED, yellow |
| Functional safety related parameters |
| MTTFd |
1721 a |
| Mission Time (TM) |
20 a |
| Diagnostic Coverage (DC) |
0 % |
| Conformity |
| PWIS conformity |
VDMA 24364-A1/B2/C1/T100°C-W |
| Compliance with standards and directives |
| Standard conformity |
|
| Standards |
EN 60947-5-2:2007
EN 60947-5-2/A1:2012
IEC 60947-5-2:2007
IEC 60947-5-2 AMD 1:2012 |
| Approvals and certificates |
| Protection class |
II |
| Rated insulation voltage |
36 V |
| Rated impulse withstand voltage |
500 V |
| UL approval |
cULus Listed, General Purpose, Class 2 Power Source |
| CCC approval |
CCC approval / marking not required for products rated ≤36 V |
| Ambient conditions |
| Ambient temperature |
-40 … 85 °C (-40 … 185 °F) |
| Storage temperature |
-40 … 85 °C (-40 … 185 °F) |
| Mechanical specifications |
| Connection type |
Connector plug |
| Housing material |
brass , white bronze coated |
| Sensing face |
PBT , green |
| Degree of protection |
IP68 |
| Connector |
|
| Threading |
M12 x 1 |
| Number of pins |
3 |
| Mass |
61 g |
| Tightening torque |
0 … 30 Nm |
| General information |
| Scope of delivery |
2 self locking nuts in scope of delivery |
