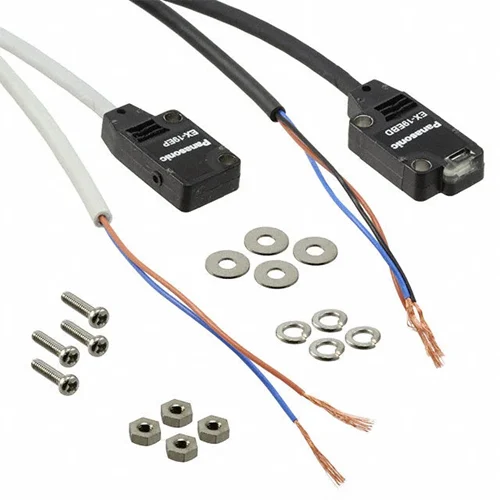

Panasonic EX-19EB Ultra-slim Thrubeam Photoelectric Sensor

Technical Overview

Ultra-slim 4.5mm thick, side-sensing thrubeam photoelectric sensor with 1m range, ø2mm min. object detection, NPN output, IP67, and 0.5ms response.

Key Features

Ultra-slim 4.5 mm thick body for mounting in confined spaces.
Side sensing design for flexible installation.
Thrubeam sensing mode with a 1-meter (1000mm) range.
Detects objects as small as ø2.0mm.
NPN open-collector transistor output with Dark-On operation.
Rapid response time of 0.5 ms or less for high-speed applications.
High repeatability of 0.05 mm or less.
IP67 protection rating against dust and water ingress.
Operates on a 12 to 24 VDC supply voltage.
Equipped with a Red LED light source (680nm peak emission wavelength).
Incorporated short-circuit protection.
Built-in amplifier design.
Improved protection against extraneous light.

Technical Specification Matrix

Parameter	Value
Series	EX-10
Sensing Mode	Thrubeam
Sensing Range	1 m (1000 mm)
Minimum Detectable Object	ø2.0 mm opaque object (at 500 mm setting distance)
Supply Voltage	12 to 24 V DC ±10% Ripple P-P 10% or less
Current Consumption (Emitter)	10 mA or less
Current Consumption (Receiver)	10 mA or less
Output Type	NPN open-collector transistor
Maximum Sink Current	50 mA
Applied Voltage (Output)	30 V DC or less (between output and 0 V)
Residual Voltage (Output)	2 V or less (at 50 mA), 1 V or less (at 16 mA)
Output Mode	Dark-On
Response Time	0.5 ms or less
Repeatability (perpendicular to sensing axis)	0.05 mm or less
Protection Rating	IP67 (IEC)
Light Source	Red LED (680 nm peak emission wavelength)
Operating Ambient Temperature	-25 to +55 ℃ (no dew condensation or icing allowed)
Ambient Humidity	35 to 85 % RH
Enclosure Material	Polyalylate (Polyethylene terephthalate)
Lens Material	Polyalylate
Cable Length	2 m
Cable Type	0.1 mm² 3-core cabtyre cable (emitter: 2-core)
Physical Weight (kg)	0
Dimensions L x W x H (cm)	2.05 x 1 x 0.45

Industrial Applications

1. High-Speed Small Part Detection on Automated Assembly Lines

The EX-19EB is ideally suited for precise detection of small components in high-speed automated assembly processes. Its ultra-slim profile enables integration into extremely confined spaces, while its rapid 0.5ms response time ensures no parts are missed, even on fast-moving lines.

Problem Solved

Ensures accurate presence/absence detection and counting of minute objects (down to ø2mm) in cramped, high-throughput manufacturing environments. The 4.5mm thickness and 0.5ms response time are critical for such applications.

Automated assemblySmall object detectionHigh-speed sensingMiniature sensor0.5ms response timeø2mm min object4.5mm thick

2. Safety Interlock for Compact Machine Access Doors

With its side-sensing design and IP67 rating, the sensor reliably monitors the open or closed status of access doors and safety guards on industrial machinery, particularly where traditional sensors are too large. Its robust construction ensures reliable operation in harsh industrial settings.

Problem Solved

Provides dependable feedback for safety interlock systems on machine enclosures, preventing operation when doors are open. The IP67 protection handles dusty or wet conditions, and the compact side-sensing form factor allows for unobtrusive mounting in tight spaces.

Safety interlockMachine guardingDoor position sensingCompact designIP67Side sensing

3. Material Edge Alignment in Conveyor Systems

The EX-19EB's precise 0.05mm repeatability and narrow thrubeam sensing make it excellent for edge detection and alignment verification of materials on conveyor belts. Its 1-meter sensing range accommodates various conveyor widths and material sizes.

Problem Solved

Maintains precise alignment of products or materials on conveyor lines, preventing jams or quality issues due to mispositioning. The 0.05mm repeatability ensures consistent detection accuracy, while the 1m sensing range is versatile for different material handling setups.

Conveyor systemsEdge detectionMaterial alignmentHigh repeatabilityThrubeam sensor1m sensing range0.05mm repeatability
