$ 170.66
Banner produce industrial sensors range such as laser distance measurement sensors, photoelectric sensors, fiber optic sensors, fiber optic sensors amplifiers sensors, temperature & vibration sensors, slot, label and arrays, registration mark, color and luminescence sensors, pick-to-light sensors.

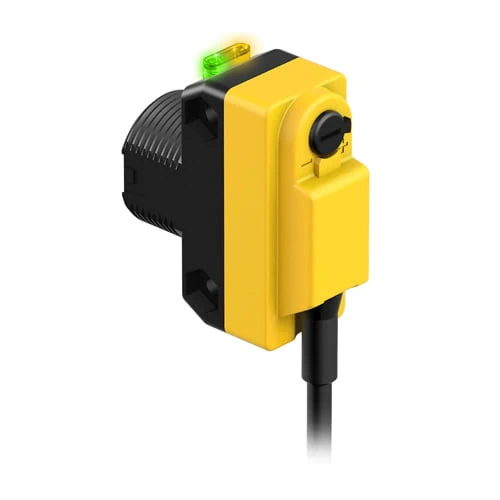

WORLD-BEAM QS18 Series: Laser Diffuse
Range: 300 mm; Input: 10-30V dc
Output: Complementary Solid State NPN
2 m (6.5 ft) Cable
| Article Number | 73034 |
| Cable Length (m) | 2 |
| Sensing Beam | Visible Red Laser |
| Power | DC |
| Sensing Mode ( General ) | Proximity |
| Sensing Mode ( Detailed ) | Diffuse |
| Housing Style | Rectangular w/M18 Mount |
| Primary Housing Material | ABS |
| Small Visible Spot | Laser |
| Laser Classification | Class 1 |
| Input / Output | Discrete |
| Max Sensing Distance (mm) | 300 |
| Outputs | NPN |
| Power Supply / Supply Voltage | 10-30V dc |
| Connection | Cable |
| Quick Disconnect Type | No QD |
| Min Op. Temp. (°C) | -10 |
| Operation | Light / Dark Operate |
| Max Op. Temp. (°C) | 50 |
| Output response time (ms) | 0.7 |
| Special Feature : Intrinsically Safe | No |
| Special Feature : Remote Tech | No |
| Special Feature : Water Detection | No |
| Sensing Beam Wavelength | 650 |
| Delay at Power-up (ms) | 200 |
| Repeatability (µs) | 130 |
| Number of Pins | 4 |
| IP Rating | IP67 |
| NEMA Rating | NEMA 6 |
| Max Op. Relative Humidity [%] | 95% @ 50°C |
| Lens Material | Acrylic |
| Adjustments | Potentiometer |
| Barrel Diameter (mm) | 18 |
| Indicator | LEDs |
| Feature : Timing (Hold / Delay) | No |
| Feature : Encapsulated | No |
| Feature : Hazardous Area | No |
| Feature : Audible | No |
| Feature : Chemical Resistant | No |
| Feature : Quick Disconnect | No |
| DeviceNet | No |
| IO Link | No |
