$ 24.15
Compact SICK IME12-04NPSZC0S sensor ensures fast, precise metal detection with 4 mm range, IP67 protection, and durable M12 nickel-plated housing.

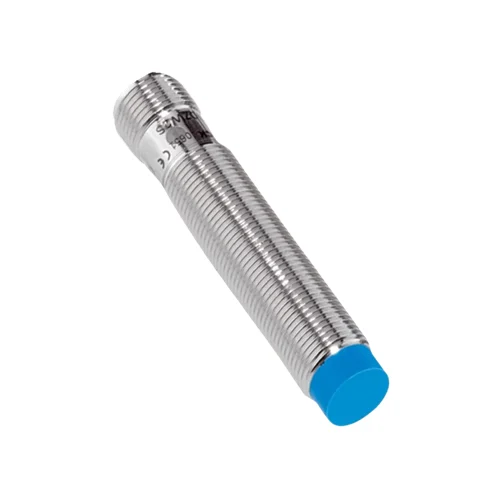

The SICK IME12-04NPSZC0S Inductive Proximity Sensor is a compact, durable sensing solution built for detecting metallic objects with precision. Featuring a 4 mm sensing distance and non-flush M12 housing, it ensures dependable performance in automated environments. The rugged nickel-plated brass housing and IP67 protection make it suitable for harsh industrial conditions. Designed for automation tasks such as part positioning and counting, this sensor delivers high accuracy, consistent performance, and minimal maintenance, ensuring stable detection and long service life across a wide range of machinery applications.
Built for industrial reliability, the IME12-04NPSZC0S combines speed, sensitivity, and robust construction. With a 2 kHz switching frequency, it accurately detects fast-moving metal parts. The 3-wire DC configuration simplifies integration, while internal protection against short-circuits and power surges increases operational safety. Resistant to vibration and temperature changes, it performs consistently from –25 °C to +75 °C. Ideal for use in automated assembly lines, conveyors, and robotic systems, this sensor enhances process precision, minimizes unplanned downtime, and contributes to efficient production control.
Why SICK IME12-04NPSZC0S?
Because the SICK IME12-04NPSZC0S blends compact design with industrial toughness, offering lightning-fast detection of metal targets with remarkable repeatability. It’s engineered for tight spaces, harsh environments, and continuous production lines—making it the go-to sensor when precision, speed, and long-term reliability matter most in automated operations.
What problem does it solve?
This sensor eliminates missed detections and false triggers in metal sensing tasks. It solves alignment, vibration, and durability challenges common in automated machinery—ensuring accurate, stable detection even under mechanical stress or temperature shifts. The result is fewer stoppages, improved product quality, and smoother, maintenance-free operation.
| Feature | Details | Benefit |
|---|---|---|
| Sensing Technology | Inductive proximity sensor | Reliable detection of metal targets without contact or wear |
| Sensing Range (Sn) | 4 mm (non-flush installation) | Consistent and precise detection in compact spaces |
| Switching Output | PNP, Normally Open (NO) | Compatible with most PLCs and automation systems |
| Electrical Connection | M12 male connector, 4-pin | Easy installation and quick replacement |
| Housing Material | Nickel-plated brass, PA66 sensing face | Long-lasting performance in demanding environments |
| Operating Voltage | 10…30 V DC | Suitable for standard industrial power supplies |
| Switching Frequency | Up to 2,000 Hz | Accurate detection of fast-moving objects |
| Protection Class | IP67 (EN 60529) | Resistant to dust, water, and harsh industrial conditions |
| Temperature Range | –25 °C to +75 °C | Reliable operation under extreme temperature variations |
| Shock/Vibration Resistance | 30 g, 11 ms / 10–55 Hz, 1 mm | Stable performance in high-vibration environments |
| Power-Up Protection | Integrated surge and short-circuit protection | Ensures safety and longer sensor lifespan |
| Enclosure Length | 65 mm (Thread length 43 mm) | Compact design fits tight installation spaces |
| MTTFD (Safety) | 1,735 years (calculated) | Exceptional reliability and long operational life |
| Installation Type | Non-flush (embeddable) | Flexible mounting with optimal sensitivity |
| Certifications | CE, cULus, UKCA, RoHS compliant | Global compliance for export and integration |
Download SICK IME12-04NPSZC0S (1040748) Datasheet
| Commercial Data | Details |
|---|---|
| EAN Code | 4047084256905 |
| Net Weight | 33 g |
| Country of Origin | Malaysia |
In automotive body assembly, metal panels and brackets must be correctly positioned before welding. The SICK IME12-04NPSZC0S verifies part presence with high repeatability, even on fast-moving lines. Its 2 kHz response rate ensures instant detection, while the nickel-plated brass housing withstands heat, sparks, and vibration. This prevents misaligned welds and reduces costly scrap, maintaining smooth robotic operation and consistent production quality.
During metal sheet transfer on conveyors, precise stopping positions are essential to avoid misfeeds or over-travel. The IME12-04NPSZC0S sensor, with a 4 mm sensing range and IP67 rating, performs reliably in dusty or oily conditions. Its non-flush design provides stable detection for metal edges while resisting contamination. This application enhances process efficiency, reduces downtime, and extends the service life of automated conveyor systems.
In automated assembly of electronic modules, robots use sensors to confirm whether small metal connectors are successfully picked up. The compact M12 design of the IME12-04NPSZC0S fits easily into tight spaces near grippers. Its accurate and repeatable sensing ensures every part is properly handled, reducing rework and preventing missing components in final products. The result is higher precision and smoother robotic workflow.
CNC machines depend on precise tool positioning during automatic tool changes. The IME12-04NPSZC0S detects the metal tool holder when it aligns in place, ensuring the machine only operates when tools are correctly seated. Its shock resistance up to 30 g and wide operating temperature range guarantee reliability in demanding environments. This minimizes downtime, prevents tool misalignment, and safeguards production continuity.
| Category | Model Name | Part Number | Compatibility / Benefit |
|---|---|---|---|
| Mounting Accessories | BEF-KHF-M12 | 2051480 | Ensures precise and stable sensor alignment |
| BEF-KH-M12 | 2051479 | Flexible mounting for adjustable positioning | |
| BEF-WG-M12 | 5321869 | Provides strong base for flat or panel mounting | |
| BEF-WN-M12 | 5308447 | Enables angled or side-mounted sensor placement | |
| Connection Cables (M12, 4-pin) | DOS-1204-G | 6007302 | Ideal for direct sensor-to-controller wiring |
| DOS-1204-W | 6007303 | Perfect for tight spaces or side cable exits | |
| DOL-1204-G05MNI | 6052615 | Suitable for washdown or hygienic environments | |
| DOL-1204-G05MRN | 6058476 | Ideal for food and chemical industries | |
| YF2A14-050VB3XLEAX | 2096235 | Reliable choice for standard automation setups | |
| YF2A14-050UB3XLEAX | 2095608 | Withstands oils, lubricants, and drag-chain operations | |
| YF2A14-010VB3XLEAX | 2145708 | Compact cable for short-distance sensor wiring | |
| YG2A14-010VB3XLEAX | 2145710 | Convenient for compact or enclosed spaces | |
| YF2A14-C60VB3XLEAX | 2145707 | Space-saving solution for close-range installations | |
| YG2A14-C60VB3XLEAX | 2145709 | Designed for short connection in limited-space environments |
