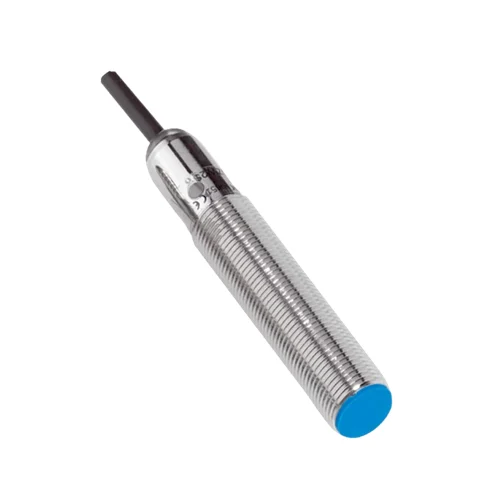

Why IME12-06BPSZW2S?
The IME12-06BPSZW2S stands out because it delivers strong, repeatable metal detection in a compact M12 form that fits almost anywhere on a machine. Its extended sensing capability, high switching speed, and rugged build make it a go-to choice for engineers who want a sensor that quietly performs with reliability, even when the production line never stops.
What Problem Does It Solve?
This model solves the challenge of inconsistent metal detection in busy, space-restricted machinery. It cuts through vibration, temperature shifts, and metal-rich mounting environments to provide stable, interference-resistant detection. In short, it eliminates guesswork and miscounts on fast-moving equipment, enabling smoother automation, fewer errors, and less downtime.
Key Features & Specifications – SICK IME12-06BPSZW2S (Part Number: 1071222)
| Feature | Details | Benefit |
|---|---|---|
| Sensing Range | 6 mm nominal detection range | Reliable metal detection even on compact machinery setups |
| Safe Sensing Range | 4.86 mm | Ensures stable performance with minimal false triggers |
| Design & Size | M12 × 1 cylindrical housing (Ø 12 mm) | Fits into tight spaces and standard automation mounts |
| Installation Type | Quasi-flush | Reduces influence from surrounding metal surfaces |
| Output Type | PNP, Normally Open (NO) | Simple integration with PLCs and control panels |
| Electrical Wiring | DC 3-wire | Industry-standard connection for fast installation |
| Switching Frequency | 800 Hz | Suitable for high-speed detection, counting, and motion applications |
| Operating Voltage | 10–30 V DC | Flexible use across different machine power systems |
| Voltage Drop | ≤ 2 V | Stable switching even under load |
| Hysteresis | 1–15% | Enhanced repeatability and consistent switching thresholds |
| Reproducibility | ≤ 5% | High accuracy for repetitive detection tasks |
| Temperature Drift | ±10% | Maintains detection stability in changing temperatures |
| Current Consumption | ≤ 10 mA | Energy-efficient sensor for large machine arrays |
| Continuous Current Rating | ≤ 200 mA | Supports robust switching and reliable output performance |
| Protection Features | Short-circuit & power-up pulse protection | Safeguards controller hardware and prevents startup errors |
| Enclosure Rating | IP67 | Resistant to dust and water exposure in harsh industrial areas |
| Housing Material | Brass, nickel-plated | Strong mechanical durability with corrosion resistance |
| Sensing Face Material | PA66 reinforced polymer | Long-life sensing surface for rugged environments |
| Cable Type | 2 m PVC cable, Ø 3.9 mm | Flexible routing and easy panel wiring |
| Shock & Vibration Resistance | 30 g, 11 ms / 10–55 Hz | Operates reliably on vibrating machines and conveyors |
| Operating Temp Range | –25°C to +75°C | Works well in cold storage, factory floors, and warm environments |
| MTTFd | 1,735 years | Exceptional reliability for long-term machine operation |
| Special Feature | Triple sensing range | Stronger detection for challenging applications |
Commercial Information – SICK IME12-06BPSZW2S (Part Number: 1071222)
| Commercial Data | Details |
|---|---|
| EAN Number | 4047084365270 |
| Weight | 75.3 g |
| Country of Origin | Hungary |
