High-precision SICK IME12-06BPSZW5K inductive sensor with 6 mm range, compact M12 design, and durable IP67 build for fast, reliable metal detection in automation.

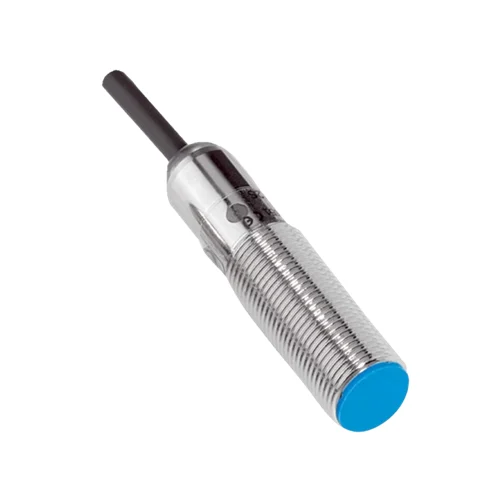

The SICK IME12-06BPSZW5K inductive proximity sensor is engineered for stable and accurate metal detection in compact industrial machines. It features a 6 mm sensing range, short M12 housing, and a PNP normally-open output, making it suitable for fast-moving or space-limited applications. Its robust, nickel-plated brass body and sealed IP67 design allow it to operate confidently in dusty, wet, or vibration-heavy environments. With rapid response capability and a long 5-meter cable for flexible installation, the sensor supports reliable operation across a wide temperature window. It is purpose-built to deliver dependable performance in continuous automation tasks.
The IME12-06BPSZW5K delivers consistent detection thanks to its enhanced coil design and extended sensing capability. Its quasi-flush mounting style ensures easy integration without sacrificing precision. The sensor maintains stability under shock, vibration, and varying temperatures, helping machines perform smoothly throughout long production cycles. Its fast switching frequency enables it to capture quick object movements, while internal protection circuits safeguard the device from electrical disturbances. The compact 44 mm body and durable cable allow installers to position the sensor easily, reducing setup time and improving overall machine reliability. This blend of durability, accuracy, and convenience makes it a strong fit for modern automation needs.
The IME12-06BPSZW5K stands out because it delivers strong metal detection in a compact body without compromising reliability. Its extended sensing range, fast response, and rugged build allow it to perform in places where typical sensors struggle. It’s a smart choice for engineers who need dependable detection in tight spaces while maintaining long-term stability in demanding industrial environments.
This model solves the challenge of detecting fast-moving or small metal objects in harsh production settings where precision and durability are critical. It eliminates false triggering, ensures consistent positioning feedback, and maintains accuracy even when machinery vibrates or environmental conditions fluctuate. The sensor helps keep automated processes stable, predictable, and efficient.
| Feature | Details | Benefit |
|---|---|---|
| Sensing Range | 6 mm nominal distance | Reliable detection of metal targets at a practical working distance. |
| Safe Sensing Range | 4.86 mm | Ensures consistent performance with reduced false triggering. |
| Housing Type | M12 short-body, Ø12 mm | Fits into tight machine areas with minimal space requirements. |
| Installation Type | Quasi-flush | Flexible mounting without sacrificing detection stability. |
| Switching Output | PNP, Normally Open | Simple integration into modern automation control systems. |
| Switching Frequency | 800 Hz | Detects fast-moving machine parts with high accuracy. |
| Electrical Wiring | DC 3-wire | Industry-standard wiring for easy replacement and setup. |
| Supply Voltage | 10–30 V DC | Supports a wide range of industrial power environments. |
| Voltage Drop | ≤ 2 V | Maintains signal reliability and reduces electrical loss. |
| No Load Current | ≤ 10 mA | Low power consumption improves system efficiency. |
| Continuous Current | ≤ 200 mA | Handles demanding sensor loads without performance loss. |
| Material – Housing | Nickel-plated brass | High durability against shock, vibration, and mechanical stress. |
| Material – Sensing Face | PA66 plastic | Resistant to wear and industrial contaminants. |
| Cable Type & Length | PVC, 5 m | Long reach for flexible sensor placement and routing. |
| Enclosure Rating | IP67 | Dustproof and water-resistant for harsh environments. |
| Ambient Temperature Range | –25 °C to +75 °C | Works reliably in cold and high-temperature conditions. |
| Shock & Vibration Resistance | 30 g, 11 ms / 10–55 Hz | Maintains stable detection in high-vibration machinery. |
| Triple Sensing Range Feature | Enhanced detection beyond standard inductive sensors | Reduces need for perfect alignment and improves setup tolerance. |
| Housing Length | 44 mm | Compact footprint for modern equipment layouts. |
| UL Certification | cULus approved | Suitable for global compliance requirements. |
| Included Accessories | 2× nickel-plated brass nuts | Quick and secure mounting with durable hardware. |
Download SICK IME12-06BPSZW5K 1088039 Datasheet
| Commercial Data | Details |
|---|---|
| EAN Number | 4047084399787 |
| Weight | 132 g |
| Country of Origin | Hungary |
Filling machines often struggle with detecting metal containers moving at high speed, especially when vibration shifts their position slightly. A sensor with a fast response and a predictable 6 mm range helps maintain accuracy even when products arrive unevenly. By sensing each container just before the filling valve triggers, the sensor keeps the system synchronized and prevents mis-fills or spills. Its compact housing fits easily between conveyor rails, and its resistance to constant vibration ensures detection remains stable shift after shift. This approach improves output consistency, reduces wasted product, and helps operators maintain a smooth flow during peak production hours.
Automated assembly stations frequently operate in cramped mechanical spaces where traditional sensors are too long or bulky. A short-body M12 design fits into these narrow machine pockets while still offering reliable metal detection for brackets, plates, or fasteners. Its quasi-flush installation option allows the sensor to sit close to moving parts without interfering with the assembly sequence. Because the sensor maintains performance even under constant mechanical motion, it helps ensure each component is correctly positioned before the system advances. This reduces assembly errors, stabilizes production flow, and supports high-volume operations where accuracy and timing are essential for quality control.
In pneumatic systems, verifying that a piston has reached its end position is crucial for preventing sequence errors. A sensor with strong immunity to shock and vibration is well suited for this environment, where rapid cylinder movements can be jarring. By detecting the presence of metal end plates or rods at a consistent sensing point, the sensor provides reliable confirmation that the motion has completed. Its sealed, impact-resistant body protects it from oil mist, dust, and temperature swings commonly found near pneumatic equipment. This ensures smoother machine cycles, fewer interruptions, and more predictable performance in automated motion applications.
Machines using rotating metal gears or indexing discs require accurate detection of passing teeth or alignment surfaces. A sensor capable of handling high switching frequencies can track these fast transitions without skipping signals. When placed near the rotating surface, it registers each movement reliably, enabling the controller to calculate speed or verify positioning. Its robust mechanical build prevents signal drift caused by continuous vibration, while the long cable provides flexibility in routing around the machine frame. This helps technicians maintain proper timing, detect abnormal motion, and keep equipment running smoothly in demanding environments such as packaging or machining systems.
| Category | Model Name | Part Number | Benefits |
|---|---|---|---|
| Mounting System | BEF-KHF-M12 | 2051480 | Clamping block with fixed stop; ensures stable and repeatable mounting for M12 sensors, especially in vibration-heavy machines. |
| Mounting Plate | BEF-WG-M12 | 5321869 | Steel mounting plate; offers secure, flat-surface installation for M12 sensors in confined or custom machine frames. |
| Mounting Bracket | BEF-WN-M12 | 5308447 | Steel bracket for angled or flexible installation; supports precise alignment and easy maintenance access. |
| Clamping Block (No Fixed Stop) | BEF-KH-M12 | 2051479 | Versatile clamping block for M12 sensors without fixed stop; provides adjustable positioning for fine-tuning the sensing point. |
