$ 67.62
Discover the SICK IME18-08BPPZWDSS21 sensor for precise metal detection, IP67 protection, and long-lasting reliability in industrial automation.

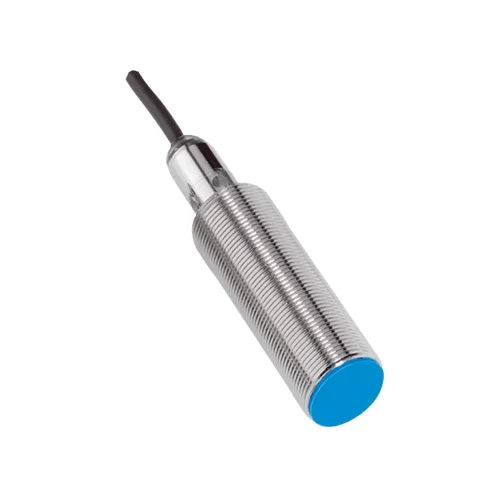

The SICK IME18-08BPPZWDSS21 inductive proximity sensor is a compact and rugged M18 model designed for accurate metal object detection in industrial systems. It features an 8 mm sensing distance, a flush installation design, and a durable nickel-plated brass housing that withstands vibration, moisture, and dust. With IP67 protection and a PNP complementary output, it integrates easily into various DC automation circuits. Its reliability and quick response make it ideal for production lines where precision and uptime are critical, offering consistent detection across changing environments.
Engineered for industrial automation, the IME18-08BPPZWDSS21 ensures dependable operation in assembly, packaging, and robotic systems. Its fast 1,000 Hz switching frequency enables precise detection of moving parts, while short-circuit and power-up protection enhance system safety. The PVC cable and wide temperature range from –25 °C to +75 °C make it suitable for both indoor and outdoor applications. Thanks to its flush mounting design and compact build, installation is straightforward, minimizing downtime. This sensor delivers long service life and reliable feedback, helping optimize process control and reduce maintenance costs.
Why SICK IME18-08BPPZWDSS21?
Because it delivers precision metal detection with industrial toughness. The SICK IME18-08BPPZWDSS21 combines German engineering, fast response, and long cable reach in one compact sensor. Built to thrive where vibration, oil, and dust challenge ordinary sensors, it ensures accurate, maintenance-free performance that keeps production lines running smoothly and efficiently.
What Problem Does It Solve?
It eliminates false triggers and downtime in harsh automation environments. The IME18-08BPPZWDSS21 tackles inconsistent detection caused by temperature shifts, metal variety, and electromagnetic noise. With stable sensing, IP67 protection, and repeatable accuracy, it ensures every metal object is detected exactly when needed—solving reliability issues that disrupt productivity and quality control.
| Feature | Details | Benefit |
|---|---|---|
| Sensor Type | Inductive Proximity Sensor | Enables non-contact metal detection, reducing wear and maintenance. |
| Thread Size | M18 x 1 (Flush Mount) | Compact, space-saving installation in standard mounting holes. |
| Sensing Range (Sn) | 8 mm | Accurate detection distance suitable for general industrial applications. |
| Safe Sensing Range (Sa) | 6.48 mm | Ensures stable and reliable operation even with minor misalignments. |
| Switching Output | PNP, Complementary | Allows flexible connection to control systems with both NO/NC outputs. |
| Supply Voltage | 10 V DC to 30 V DC | Broad compatibility with industrial power supplies. |
| Switching Frequency | 1,000 Hz | Detects fast-moving parts with precision timing. |
| Connection Type | 4-wire PVC cable, 15 m length | Long cable reach supports flexible mounting options. |
| Enclosure Rating | IP67 | Resistant to dust, oil, and water for demanding environments. |
| Housing Material | Nickel-plated brass | Provides corrosion resistance and long mechanical durability. |
| Sensing Face Material | PA66 Plastic | Maintains accuracy and durability under repeated operation. |
| Operating Temperature | –25 °C to +75 °C | Suitable for a wide range of indoor and outdoor applications. |
| Protection Features | Short-circuit and power-up pulse protection | Ensures sensor and system safety against electrical faults. |
| Vibration & Shock Resistance | 30 g, 11 ms | Reliable performance in high-vibration industrial machinery. |
| Compliance & Certification | CE, UKCA, cULus, RoHS | Meets global industrial safety and environmental standards. |
Download SICK IME18-08BPPZWDSS21 (1067897) Datasheet
| Commercial Data | Details |
|---|---|
| EAN Number | 4047084302633 |
| Weight | 405 g |
| Country of Origin | Hungary |
1. Precision Part Detection in CNC Machining
In precision machining environments, detecting a metal component before cutting is essential to avoid tool damage and wasted cycles. The SICK IME18-08BPPZWDSS21 ensures the spindle only engages when the workpiece is in the correct position. With its 8 mm sensing range and vibration resistance, it performs accurately even when surrounded by metal chips and coolant. This stable operation improves process consistency, prevents tool collisions, and extends machine uptime in high-speed CNC lines.
2. Fastener Presence Check in Automated Assembly
On assembly systems where bolts, screws, or clips must be verified, this inductive sensor provides instant confirmation that each metallic fastener is correctly placed. Its flush design allows installation close to robotic tools, while the robust brass housing resists oil and dust. The complementary PNP outputs enable flexible signal wiring to PLCs. This ensures immediate feedback when a fastener is missing or misplaced, minimizing rework and guaranteeing product integrity.
3. Sheet Verification in High-Speed Metal Pressing
In sheet-metal forming operations, accurate placement of each metal blank is crucial to avoid die damage. The IME18-08BPPZWDSS21 verifies sheet presence before each press stroke using non-contact detection. Its IP67 sealing prevents damage from lubricant and metal debris, while the quick 1 kHz response rate suits rapid production cycles. This precision sensing helps prevent double feeds, reduces machine downtime, and maintains consistent production quality in harsh stamping environments.
4. Metal Component Tracking on Conveyor Lines
In automated packaging or part-transfer conveyors, maintaining detection accuracy for metallic parts ensures smooth flow control. The IME18-08BPPZWDSS21 provides stable detection even in dusty or humid surroundings. Its 15-meter cable allows remote mounting from control panels, and its durable materials resist long-term wear. By reliably identifying each passing metal item, it enhances line efficiency, prevents system jams, and keeps automated processes running without interruption.
| Category | Part Number | Manufacturer Part Number | Benefit |
|---|---|---|---|
| Mounting Nut (Included) | BEF-MU-M18 | 1067897-MU | Supplied with the sensor for secure and quick installation. |
| Clamping Block (With Fixed Stop) | BEF-KHF-M18 | 2051482 | Provides consistent sensor placement and reliable positioning. |
| Clamping Block (Without Fixed Stop) | BEF-KH-M18 | 2051481 | Allows flexible installation and easy adjustment of sensor position. |
| Mounting Plate | BEF-WG-M18 | 5321870 | Enables flat and rigid sensor mounting for long-term alignment. |
| Mounting Bracket (Standard) | BEF-WN-M18 | 5308446 | Durable and stable bracket for general-purpose installations. |
| Mounting Bracket (Stainless Steel) | BEF-WN-M18N | 5320947 | Offers corrosion resistance for outdoor or food-grade environments. |
