$ 23.00
Discover the SICK IME18-08BPSZC0K inductive proximity sensor, offering 8mm precise metal detection, IP67 protection, and fast 1kHz switching for automation.

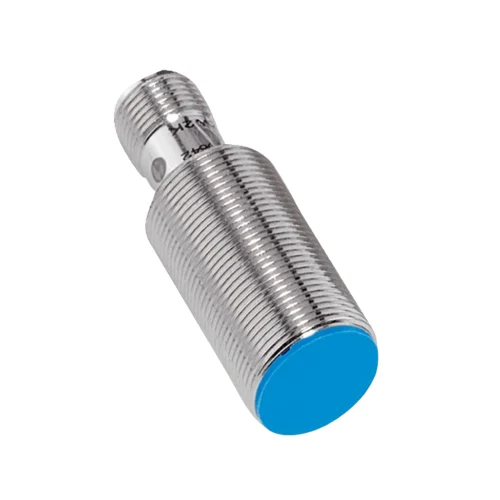

The SICK IME18-08BPSZC0K inductive proximity sensor is engineered for precise metal detection in space-limited industrial setups. Featuring an M18 short-body design with an 8 mm sensing range, it ensures stable and accurate detection across diverse production environments. Built from nickel-plated brass and rated IP67, it withstands shock, vibration, and exposure to dust or moisture. Its 3-wire DC connection and PNP normally open output enable quick setup, reducing installation time. Ideal for modern automation lines, the IME18-08BPSZC0K delivers dependable detection performance and supports uninterrupted machine operation.
Compact, robust, and efficient, the IME18-08BPSZC0K provides reliable sensing in demanding applications such as assembly systems, packaging lines, and conveyor monitoring. Its high 1 kHz switching speed allows rapid response to moving targets, ensuring process accuracy and consistency. The flush-mount design helps save installation space while maintaining strong performance. With built-in protections against short circuits and voltage spikes, it enhances equipment safety and extends lifespan. This sensor offers long-term stability, reducing maintenance effort and downtime—making it a smart choice for manufacturers seeking precision and durability in every production cycle.
Why SICK IME18-08BPSZC0K?
The SICK IME18-08BPSZC0K stands out for its compact strength and unwavering accuracy. Designed for industrial spaces where every millimeter matters, it merges a rugged nickel-plated brass body with fast, reliable sensing. Its 8 mm range and 1 kHz speed make it a trusted choice for engineers seeking consistent metal detection in harsh, high-speed automation setups.
What Problem Does It Solve?
This sensor eliminates the risk of missed or false detections that disrupt production lines. It ensures precise object recognition even in dusty, vibrating, or wet conditions. By offering durable performance and simple integration, the IME18-08BPSZC0K helps manufacturers maintain efficiency, minimize downtime, and achieve smoother, safer automated processes across various machinery systems.
| Feature | Details | Benefit |
|---|---|---|
| Sensing Range (Sn) | 8 mm | Enables accurate metal detection in compact industrial setups. |
| Safe Sensing Range (Sa) | 6.48 mm | Ensures consistent and repeatable detection for reliable performance. |
| Installation Type | Flush-mounted | Allows integration into tight spaces without compromising accuracy. |
| Thread Size / Housing Type | M18 x 1, Short-body | Compact design ideal for machines with limited mounting space. |
| Switching Frequency | 1,000 Hz | Detects fast-moving metal targets with high precision. |
| Output Type | PNP, Normally Open (NO) | Compatible with most automation controllers for flexible wiring. |
| Connection Type | M12, 4-pin male connector | Simplifies installation and replacement in industrial environments. |
| Supply Voltage Range | 10–30 V DC | Works reliably within common automation voltage ranges. |
| Enclosure Rating | IP67 | Fully protected against dust and temporary water immersion. |
| Housing Material | Brass, nickel-plated | Provides excellent resistance to corrosion and mechanical wear. |
| Sensing Face Material | Plastic (PA66) | Durable and resistant to harsh industrial conditions. |
| Operating Temperature Range | –25 °C to +75 °C | Suitable for use in both hot and cold factory environments. |
| Hysteresis | 5% – 15% | Maintains detection stability and minimizes false triggering. |
| Reproducibility | ≤ 2% | Guarantees precise and repeatable sensing performance. |
| Protection Features | Short-circuit and power-up pulse protection | Extends service life and protects automation systems. |
| Certifications | CE, UKCA, cULus, China-RoHS | Meets international quality and safety standards. |
Download SICK IME18-08BPSZC0K (1040965) Datasheet
| Commercial Data | Details |
|---|---|
| EAN Number | 4047084257308 |
| Weight | 53 g |
| Country of Origin | Malaysia |
In robotic welding systems for vehicle frames, precise part positioning is critical before each weld cycle. The IME18-08BPSZC0K detects the exact placement of metal panels using its 8 mm sensing range and rapid 1 kHz response rate. Its compact M18 housing allows it to fit in narrow jig setups, while the flush-mount design resists signal interference from nearby metal surfaces. By confirming correct part alignment before welding begins, it helps avoid poor weld quality, ensures consistent production flow, and reduces costly rework in automated assembly lines.
High-speed bottling systems rely on accurate detection of metal closures to maintain quality and efficiency. The IME18-08BPSZC0K is mounted beside the conveyor to verify every passing metal cap. Its IP67-rated brass housing withstands splashes, cleaning cycles, and vibration from conveyor drives. The high switching frequency ensures reliable detection even on fast-moving lines. When integrated with inspection systems, it immediately identifies missing or skewed caps, preventing production halts and ensuring packaging consistency in beverage or cosmetic manufacturing lines.
CNC tool changers demand sensors that verify the correct positioning of metallic tool holders before machining begins. The IME18-08BPSZC0K performs non-contact detection of each tool, ensuring the holder is fully seated and ready for operation. Its durable nickel-plated brass housing resists coolant exposure, chips, and vibrations from the machining environment. With excellent repeatability and short-circuit protection, it provides long-term reliability, minimizes tool breakage, and supports safer, uninterrupted machining operations across high-precision production facilities.
In logistics systems using shuttle carriers to move metal trays, the IME18-08BPSZC0K ensures each tray is properly positioned before loading or retrieval. Its 8 mm sensing distance accommodates small misalignments, maintaining smooth and safe movement of goods. The PNP output allows easy communication with PLC systems, while its rugged IP67 enclosure keeps performance stable in dusty or humid warehouse environments. This reliable position sensing reduces misfeeds, prevents mechanical collisions, and optimizes cycle times in automated storage and retrieval systems.
| Category | Model / Name | Part Number | Benefit / Application |
|---|---|---|---|
| Mounting System | BEF-KHF-M18 | 2051482 | Provides secure mounting with fixed stop for stable positioning in automation systems. |
| Mounting System | BEF-KH-M18 | 2051481 | Ideal for flexible setups requiring adjustable sensor alignment. |
| Mounting Plate | BEF-WG-M18 | 5321870 | Simplifies installation on flat surfaces and ensures firm sensor placement. |
| Mounting Bracket | BEF-WN-M18 | 5308446 | Provides durable support for sensors in machinery and conveyor systems. |
| Mounting Bracket (Stainless Steel) | BEF-WN-M18N | 5320947 | Suitable for environments exposed to moisture, chemicals, or frequent cleaning. |
| Connector (Straight) | DOS-1204-G | 6007302 | Simple plug connection for compact sensor wiring. |
| Connector (Angled) | DOS-1204-W | 6007303 | Facilitates sensor wiring in limited spaces or tight installations. |
| Sensor Cable (PVC, 5 m) | DOL-1204-G05MNI | 6052615 | Flexible connection for hygienic or general automation zones. |
| Sensor Cable (PP, 5 m) | DOL-1204-G05MRN | 6058476 | Resistant to cleaning chemicals and ideal for drag chain operations. |
| Sensor Cable (PVC, 5 m) | YF2A14-050VB3XLEAX | 2096235 | Suitable for general factory zones and clean environments. |
| Sensor Cable (PUR, 5 m) | YF2A14-050UB3XLEAX | 2095608 | Best for areas with exposure to oils, lubricants, or robotic motion. |
| Angled Sensor Cable (0.6 m) | YG2A14-C60VB3XLEAX | 2145709 | Compact cable for short-distance sensor connections. |
| Angled Sensor Cable (1 m) | YG2A14-010VB3XLEAX | 2145710 | For short connections in confined machine areas. |
| Straight Sensor Cable (0.6 m) | YF2A14-C60VB3XLEAX | 2145707 | Ideal for sensors close to the control box or junction. |
| Straight Sensor Cable (1 m) | YF2A14-010VB3XLEAX | 2145708 | Compact cable for panel or control cabinet integration. |
