$ 79.58
Compact SICK IQ20-07BPSDU2S inductive sensor with 7 mm range, IP67 protection, and fast 150 Hz response for precise metal detection in automation systems.

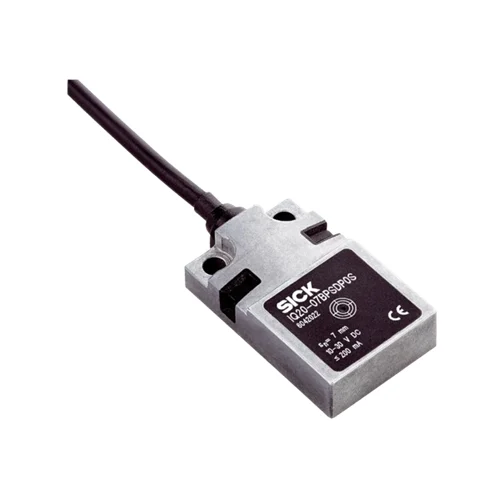

The SICK IQ20-07BPSDU2S Inductive Proximity Sensor is a compact, rectangular sensor built for precise and reliable metal detection in automated systems. With a 7 mm sensing range and IP67-rated enclosure, it performs accurately even in dusty or humid environments. Its flush-mount design and zinc die-cast housing make it ideal for tight spaces or machinery setups requiring stable operation. The DC 3-wire PNP output provides simple integration into control circuits, enabling consistent detection performance across conveyor systems, material handling, and automated assembly lines.
Engineered for industrial dependability, the IQ20-07BPSDU2S delivers consistent detection even in high-vibration or fast-moving production lines. It offers a 150 Hz switching frequency, supporting precise feedback in dynamic environments. The PUR cable and durable housing ensure long service life, while its temperature range from –25 °C to +70 °C makes it suitable for a wide range of manufacturing conditions. This sensor minimizes false triggers, reduces maintenance interruptions, and improves overall process efficiency—making it a dependable choice for OEMs, automation engineers, and factory operators seeking long-term reliability.
Choose the SICK IQ20-07BPSDU2S for its smart blend of compact size, rugged build, and precision. It delivers dependable metal detection even in harsh factory settings, ensuring smooth automation flow. Designed for tight installations, it provides stable performance with minimal setup—turning complex sensing challenges into seamless, plug-and-play reliability.
The IQ20-07BPSDU2S eliminates inconsistent metal detection that causes production delays or machine faults. It tackles issues like vibration, dust, and temperature fluctuations that affect standard sensors. By providing consistent, non-contact detection in demanding conditions, it ensures machinery operates safely, efficiently, and without unexpected downtime.
| Feature | Details | Benefit |
|---|---|---|
| Sensing Range (Sn) | 7 mm | Provides reliable detection distance suitable for compact installations. |
| Safe Sensing Range (Sa) | 5.67 mm | Ensures stable and repeatable operation within safety margins. |
| Installation Type | Flush Mount | Ideal for space-saving setups with minimal protrusion. |
| Housing Dimensions (W × H × D) | 20 × 32 × 8 mm | Compact rectangular design fits tight machine spaces. |
| Switching Frequency | 150 Hz | Enables high-speed object detection on fast-moving production lines. |
| Output Type / Function | PNP, Normally Open (NO) | Simplifies integration with control systems and PLCs. |
| Electrical Connection | 3-wire, 2 m PUR Cable | Flexible and durable cable for easy installation and reliability. |
| Supply Voltage | 10–30 V DC | Compatible with standard industrial power supplies. |
| Enclosure Rating | IP67 | Fully protected against dust and water immersion for harsh environments. |
| Material (Housing / Sensing Face) | Zinc Die-cast / PA12 Plastic | Combines strength and chemical resistance for industrial durability. |
| Ambient Temperature Range | –25 °C to +70 °C | Performs reliably across diverse environmental conditions. |
| Vibration / Shock Resistance | 10–55 Hz, 30 g / 11 ms | Withstands mechanical stress in dynamic machinery. |
| MTTFD (Reliability Index) | 1,080 years | Indicates exceptional operational lifespan and reliability. |
| Certifications | cULus, CE, China-RoHS | Meets global standards for safety and quality. |
Download SICK IQ20-07BPSDU2S (6045180) Datasheet
| Commercial Data | Details |
|---|---|
| Weight | 59 g |
| Country of Origin | China |
In robotic assembly systems, detecting small metallic parts during pick-and-place operations is vital. The IQ20-07BPSDU2S can be mounted directly onto gripper jaws to verify part presence before transfer. Its compact 20 × 32 × 8 mm housing and 7 mm sensing range allow installation in tight spaces, while the 150 Hz switching frequency ensures real-time detection in fast-moving robotic arms. Withstanding constant vibration and shock, it maintains precision and minimizes production interruptions caused by missed parts or false signals.
In CNC machining environments, accurate tool seating detection prevents damage and ensures machining precision. The IQ20-07BPSDU2S verifies if a metallic tool holder is correctly positioned, even under exposure to coolant and metal chips. Its IP67 protection and flush-mount design allow it to function dependably in oily, confined spaces. The robust zinc die-cast housing resists wear from vibration and high-speed rotation, improving process safety and reducing costly downtime from tool misalignment.
In sheet metal stamping or forming lines, positioning sensors are critical for preventing die damage. The IQ20-07BPSDU2S detects the exact location of metal sheets before each press stroke. With fast response time and strong vibration resistance, it ensures proper alignment even in heavy-duty cycles. Its non-contact operation avoids sensor wear and contamination, maintaining consistent accuracy while reducing maintenance intervals. This improves both production safety and equipment lifespan.
In industrial logistics, accurate metal item sorting boosts system efficiency. The IQ20-07BPSDU2S identifies metallic objects on conveyors by detecting their presence or orientation. The high-frequency 150 Hz switching rate enables seamless sorting at high speeds, while PUR-cable durability ensures reliable signal transmission in dusty or oily surroundings. Its IP67-rated construction withstands continuous operation, supporting 24/7 production demands in packaging, automotive, or metal handling environments.
