Discover the SICK MZ2Q-FTZPS-KR0 cylinder sensor with dual PNP outputs, teach-in setup, and IP67 design for precise piston detection in T-slot cylinders.

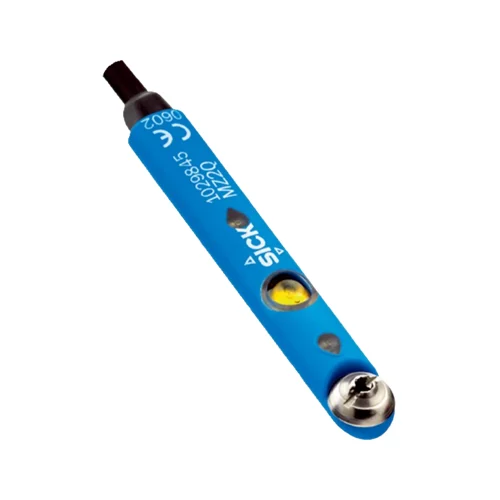

The SICK MZ2Q-FTZPS-KR0 Cylinder Sensor is an advanced dual-point magnetic sensor engineered for T-slot pneumatic cylinders. It provides accurate piston detection across a 0 to 50 mm range, helping machines achieve precise motion control. Built with a compact 40 mm housing, it fits easily in limited spaces while maintaining stability under demanding conditions. Its IP67-rated enclosure and durable plastic housing ensure long-term reliability. With two programmable PNP outputs, this sensor streamlines installation and control processes, making it ideal for equipment requiring dependable and flexible position feedback.
The MZ2Q-FTZPS-KR0 combines precision, adaptability, and simplicity for automation environments. Two independent teachable outputs allow users to set switching points without additional sensors, reducing wiring and hardware costs. Built-in LEDs provide easy visual confirmation of operation and teach-in settings. Its robust PUR cable and M8 connector maintain stable performance even in vibration or oily conditions. The sensor’s exceptional repeatability ensures consistent piston position feedback, improving process accuracy in robotics, packaging, and pneumatic handling systems. Designed for efficient setup and long service life, it supports higher uptime and operational productivity across industrial lines.
Why SICK MZ2Q-FTZPS-KR0?
Choose the SICK MZ2Q-FTZPS-KR0 for its intelligent dual-switching design that replaces two separate sensors with one precise unit. Its compact T-slot fit, rugged IP67 housing, and teach-in setup make it perfect for modern automation lines needing reliability, space efficiency, and effortless configuration—all while maintaining pinpoint accuracy.
What Problem Does It Solve?
The MZ2Q-FTZPS-KR0 eliminates alignment issues and cluttered wiring in cylinder sensing. It provides two programmable outputs for different piston positions, cutting sensor count, simplifying maintenance, and improving control precision. Ideal for high-speed pneumatic and robotic systems, it solves the challenge of monitoring multiple stroke points in tight, dynamic environments.
| Feature | Details | Benefit |
|---|---|---|
| Sensor Type | Magnetic cylinder sensor for T-slot | Ensures accurate piston position detection in pneumatic cylinders |
| Detection Range | 0 to 50 mm | Allows flexible monitoring over full cylinder stroke |
| Output Type | 2 × PNP, Normally Open (NO) | Enables dual switching points for precise position control |
| Teach-In Function | Integrated teach-in control panel | Quick setup of switching points without external tools |
| Housing Length | 40 mm compact design | Easy installation in confined machine spaces |
| Protection Rating | IP67 (EN 60529) | Reliable operation in dusty and wet industrial environments |
| Operating Voltage | 12–30 V DC | Wide voltage range for compatibility with automation systems |
| Cable & Connector | PUR cable, 0.5 m with M8 4-pin connector | Secure and flexible connection for harsh conditions |
| Power Consumption | Typical 25 mA (without load) | Energy-efficient operation with minimal power draw |
| Reproducibility | ≤ 0.1 mT | High repeatability ensures consistent performance in fast cycles |
| Short-Circuit / Reverse Polarity Protection | Yes | Protects device and system from electrical faults |
| Ambient Temperature | –20 °C to +75 °C | Designed for wide environmental adaptability |
| Material | Durable plastic housing | Lightweight and corrosion-resistant for long service life |
| Status Indicators | Dual LEDs | Provides instant visual feedback for operation and diagnostics |
| Shock & Vibration Resistance | 30 g / 11 ms, 10–55 Hz, 1 mm | Stable performance in high-vibration machinery |
| Connection Type | Axial cable outlet | Neat cable management and easy integration into compact systems |
| Safety & Compliance | cULus, CE, UKCA, RoHS certified | Meets international safety and quality standards |
Download SICK MZ2Q-FTZPS-KR0 (1041322) Datasheet
| Commercial Data | Details |
|---|---|
| EAN Code | 4047084259074 |
| Weight | 27 g |
| Country of Origin | Hungary |
In automated robotic gripper systems, precise detection of both open and closed positions is vital for accurate part handling. The MZ2Q-FTZPS-KR0 allows this by providing two switching points within a single compact sensor, eliminating the need for separate units. Mounted directly in the T-slot of the pneumatic cylinder, it ensures reliable position feedback even in fast-moving operations. The dual PNP outputs streamline wiring, reduce installation space, and improve machine efficiency while maintaining high accuracy under constant motion.
In production environments where pneumatic clamps hold workpieces during machining or welding, confirming both clamped and released states is critical. The MZ2Q-FTZPS-KR0 solves this by enabling two teachable switch points—one for each cylinder position. This ensures processes only start when the clamp is securely engaged, reducing risk of misalignment or damaged parts. Its IP67 protection and vibration resistance make it dependable even in harsh industrial settings, improving reliability and reducing system downtime.
In conveyor systems or automated loading mechanisms, detecting full extension and retraction of a loading plate ensures synchronized operation with other equipment. The MZ2Q-FTZPS-KR0 compact design fits easily into tight spaces, and its teach-in function allows quick adjustment of position limits. Visual LED indicators confirm sensor operation during setup, reducing commissioning time. This results in more stable, precise control of movement for packaging and assembly lines with frequent changeovers.
In material-transfer carriages or linear slides, monitoring both travel limits and mid-positions enhances motion control. The MZ2Q-FTZPS-KR0 simplifies this by combining two detection points into one sensor, minimizing wiring and saving mounting space. Its excellent reproducibility ensures consistent response even under continuous vibration or oil exposure. By providing reliable multi-point sensing, it supports high-speed sorting, assembly, and logistics operations where precision and uptime are essential.
| Category | Part Number | Purpose / Benefit |
|---|---|---|
| Mounting Bracket (Profile Cylinder / Tie-Rod) | 2022702 | Secure mounting on standard cylinder profiles; includes mounting hardware |
| Mounting Bracket (Dovetail Slot) | 2022703 | Enables quick, tool-free installation on dovetail grooves |
| Mounting Bracket (SMC CDQ2 Rail) | 2046440 | Compatible with SMC CDQ2 pneumatic cylinders for precise sensor alignment |
| Mounting Bracket (SMC ECDQ2 Rail) | 2046439 | Provides stable fitting for SMC ECDQ2 types with T-slot |
| Round Cylinder Bracket Ø12 mm | 2077681 | Ensures firm mounting for cylinders with 12 mm piston diameter |
| Round Cylinder Bracket Ø16 mm | 2077680 | For compact cylinder installations requiring precise fit |
| Round Cylinder Bracket Ø20 mm | 2077679 | Designed for round body cylinders of 20 mm piston size |
| Round Cylinder Bracket Ø25 mm | 2077678 | Provides firm positioning for T-slot integration |
| Round Cylinder Bracket Ø32 mm | 2077677 | Suitable for standard pneumatic round cylinders |
| Round Cylinder Bracket Ø40 mm | 2077676 | Reliable for medium-size round cylinders |
| Round Cylinder Bracket Ø50 mm | 2077675 | Strong, lightweight mounting for 50 mm pistons |
| Round Cylinder Bracket Ø63 mm | 2077674 | Robust support for larger-diameter cylinders |
| Universal Round Cylinder Bracket (8–25 mm) | 2077682 | Suitable for harsh environments, wide diameter range |
| Universal Round Cylinder Bracket (8–63 mm) | 2077683 | Offers universal fit and high strength |
| Universal Round Cylinder Bracket (8–130 mm) | 2077684 | Adjustable bracket for large-bore cylinders |
| Female Connector, Straight (M8, 4-Pin) | 6009974 | Connects sensor to control units; straight design for compact routing |
| Female Connector, Angled (M8, 4-Pin) | 6009975 | Ideal for tight spaces where angled cable exit is preferred |
| Male Connector, Straight (M8, 4-Pin) | 6037323 | For control cabinet or system-side connection |
| Sensor/Actuator Cable 2 m (Straight) | 2094791 | Flexible, oil-resistant cable for sensor wiring |
| Sensor/Actuator Cable 5 m (Straight) | 2094792 | Long-reach connection for extended installations |
| Sensor/Actuator Cable 2 m (Angled) | 2095589 | Angled connector for compact routing in enclosures |
| Sensor/Actuator Cable 5 m (Angled) | 2095590 | Extended cable with angled head for machine wiring |
| Sensor/Actuator Cable 0.6 m (Straight) | 2145825 | Short connection cable for integrated assemblies |
| Sensor/Actuator Cable 1 m (Straight) | 2145826 | Compact link cable for space-limited setups |
