Discover the SICK MZT7-03VNS-KW0 magnetic cylinder sensor—compact, reliable, and built for precise piston detection in advanced automation systems.

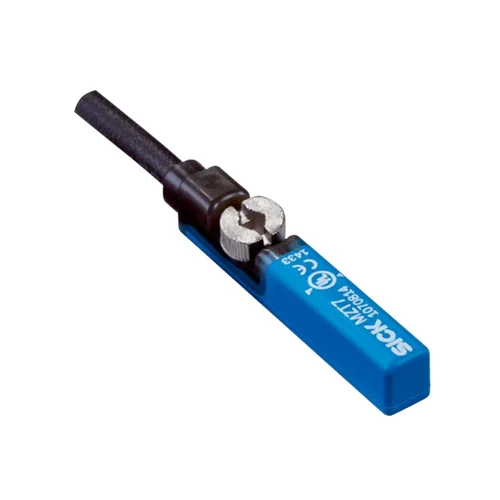

The SICK MZT7-03VNS-KW0 Cylinder Sensor is a compact and durable magnetic sensor built to detect piston positions in T-slot pneumatic cylinders. It supports various cylinder types, including round, profile, and tie-rod models, offering high flexibility in industrial automation. With its 29.5 mm housing and solid-state NPN output, it delivers consistent performance even in harsh environments. Operating from –30 °C to +70 °C and protected with IP65/IP67 ratings, it ensures reliability in continuous use. Designed for precision and long service life, it provides stable sensing feedback vital for process control, assembly, and motion systems.
Engineered for demanding industrial environments, the SICK MZT7-03VNS-KW0 offers a fast 1 kHz switching frequency that supports high-speed cylinder movements. Its rugged construction, combined with short-circuit and polarity protection, prevents electrical failures and enhances equipment uptime. The integrated LED indicator simplifies sensor alignment and maintenance, reducing setup errors. With a flexible 2 m axial cable and easy mounting design, it integrates seamlessly into existing pneumatic systems. This sensor provides manufacturers with consistent detection accuracy, improved machine efficiency, and dependable performance over extended operating cycles.
Why SICK MZT7-03VNS-KW0?
Choose the SICK MZT7-03VNS-KW0 for its compact precision and unwavering reliability. It’s engineered to deliver fast, accurate piston detection in diverse cylinder types, even under vibration or temperature extremes. With its durable build, intelligent design, and effortless installation, it transforms everyday motion control into a seamless, maintenance-free experience.
What Problem Does It Solve?
The MZT7-03VNS-KW0 eliminates inconsistent cylinder position sensing that often leads to machine errors, downtime, and inefficiency. By providing rapid magnetic detection with high repeatability, it ensures every piston stroke is precisely monitored—enhancing safety, synchronization, and productivity across automated machinery and assembly systems.
| Feature | Details | Benefit |
|---|---|---|
| Sensor Type | Magnetic cylinder sensor (T-slot) | Ensures precise piston position detection in pneumatic cylinders. |
| Output Type | NPN, Normally Open (NO) | Ideal for direct PLC integration and fast switching applications. |
| Switching Frequency | 1,000 Hz | Supports rapid motion processes with high repeatability. |
| Supply Voltage | 10–30 V DC (3-wire) | Compatible with most industrial power standards. |
| Housing Length | 29.5 mm | Compact design fits easily into tight machine spaces. |
| Connection Type | 3-wire PVC cable, axial outlet, 2 m length | Flexible installation with durable cable for long service life. |
| Material | Plastic housing, PVC cable | Lightweight yet durable for demanding environments. |
| Operating Temperature | –30 °C to +70 °C | Reliable operation in both cold and high-temperature conditions. |
| Protection Class | IP65 / IP67 | Dust-tight and water-resistant, suitable for harsh industrial use. |
| Response Sensitivity | 3 mT (typical) | Stable detection with excellent magnetic responsiveness. |
| Reproducibility | ≤ 0.1 mT | Delivers consistent sensing results in every cycle. |
| Vibration / Shock Resistance | 30 g, 11 ms / 10–55 Hz, 1 mm | Designed to perform reliably in high-vibration machinery. |
| Status Indicator | Integrated LED | Quick visual feedback for operational status and alignment. |
| Certifications | CE, UKCA, cULus, China-RoHS | Compliant with international quality and safety standards. |
| MTTFD (Service Life) | 1,300 years (calculated) | Extremely long operational reliability for continuous use. |
Download SICK MZT7-03VNS-KW0 (1070840) Datasheet
| Commercial Data | Details |
|---|---|
| EAN Number | 4047084378515 |
| Weight | 33 g |
| Country of Origin | Hungary |
In automated packaging lines, pneumatic cylinders control actions like flap folding, product pushing, and sealing. The SICK MZT7-03VNS-KW0 ensures accurate piston detection even during rapid motion cycles. Its compact form fits tightly within machine frames, while the high 1 kHz switching frequency allows consistent operation at high speed. The sensor’s non-contact magnetic detection minimizes wear and prevents mechanical faults. By providing stable feedback under vibration, it helps keep packaging machines synchronized, reducing downtime and product jams.
During automated assembly processes, confirming the exact open or closed position of a pneumatic gripper is crucial. The MZT7-03VNS-KW0 offers reliable magnetic sensing without direct contact, ensuring accuracy even when mounted in tight or vibrating locations. Its rugged IP65/67 housing resists dust and oil exposure. The integrated LED indicator provides quick visual confirmation of operation, reducing setup errors. This enhances production quality by ensuring each assembly cycle completes correctly and consistently.
Hygienic and precise motion control is vital in food and beverage packaging. The MZT7-03VNS-KW0 operates reliably in washdown areas and fluctuating temperatures thanks to its robust housing and stable sensing field. Its non-contact operation prevents contamination and extends sensor life. Mounted on small pneumatic cylinders, it ensures every sealing or filling stroke is detected with precision. This improves machine uptime, product consistency, and operational safety in clean manufacturing environments.
In automotive assembly, pneumatic cylinders are widely used to position parts, operate clamps, and trigger welding actions. The MZT7-03VNS-KW0 provides exact piston detection to ensure every motion completes before the next process begins. Its fast response and high repeatability guarantee accurate timing, even in high-vibration environments. The sensor’s compact build makes it easy to retrofit on T-slot or tie-rod cylinders, providing long-term reliability in demanding production lines where precision is critical.
| Category | Model Name | Part Number | Benefit |
|---|---|---|---|
| Cylinder Sensor (Same Series) | MZT7-03VPS-KW0 | 1070838 | Provides sourcing-type signal with identical form factor. |
| Cylinder Sensor (Same Series) | MZT7-03VNS-KUB | 1070835 | Extended cable for larger automation setups. |
| Cylinder Sensor (Same Series) | MZT7-03VPS-KWB | 1070842 | Suitable for extended-distance connections and outdoor lines. |
| Cylinder Sensor (Same Series) | MZT7-2V2PS-KW0 | 1092259 | Enables dual signal sensing for enhanced automation logic. |
| Mounting Bracket (Round Cylinder) | BEF-KHZ-RT1-25 | 2077682 | Durable and corrosion-resistant for compact cylinders. |
| Mounting Bracket (Round Cylinder) | BEF-KHZ-RT1-63 | 2077683 | Secure fit for medium-sized pneumatic cylinders. |
| Mounting Bracket (Round Cylinder) | BEF-KHZ-RT1-130 | 2077684 | Universal bracket for large automation cylinders. |
| Mounting Bracket (Profile/Tie-Rod Cylinder) | BEF-KHZ-PT1 | 2022702 | Simplifies installation with included mounting hardware. |
| Mounting Bracket (SMC Rail Type) | BEF-KHZ-TT1 | 2046439 | Lightweight, easy to install in tight actuator assemblies. |
| Mounting Bracket (SMC Rail Type) | BEF-KHZ-TT2 | 2046440 | Compact and durable for high-speed cylinder applications. |
| Mounting Bracket (Dovetail Slot Cylinder) | BEF-KHZ-ST1 | 2022703 | Expands compatibility across diverse cylinder profiles. |
| Protective Adapter | BEF-SG-MRZT | 2077201 | Protects sensor from impact and mechanical wear. |
