$ 1,138.27
Discover the SICK TiM310-1030000S02 2D LiDAR sensor—compact, precise, and ideal for indoor automation, robotics, and area monitoring applications.

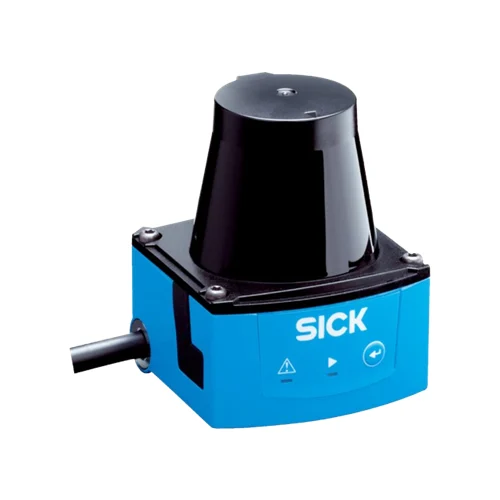

The SICK TiM310-1030000S02 2D LiDAR Sensor is a compact, high-performance laser scanner engineered for indoor detection and area monitoring. Using advanced HDDM+ distance measurement technology, it delivers precise object detection across a 270° field of view with a scanning range of up to 4 meters. Its infrared Class 1 laser ensures safe operation while maintaining high accuracy. Encased in a durable IP65-rated housing, the sensor withstands challenging environments. Designed for industrial automation, robotics navigation, and safety applications, it combines reliability, small form factor, and energy efficiency to simplify integration into various systems.
Developed for modern automation systems, the SICK TiM310-1030000S02 provides consistent and detailed detection for mobile platforms, conveyors, and equipment in motion. Its wide 270° coverage ensures full situational awareness, while configurable detection fields allow users to customize protection zones to match dynamic work areas. The HDDM+ processing delivers stable and repeatable measurements even with reflective or dark surfaces. Its lightweight design and low power draw make it ideal for compact installations. With a long operational lifespan and easy setup via digital interfaces, this LiDAR sensor enhances workplace safety, optimizes process flow, and boosts system reliability in industrial environments.
Why SICK TiM310-1030000S02?
Because it transforms ordinary indoor automation into intelligent precision control. The SICK TiM310-1030000S02 delivers exceptional reliability, scanning a full 270° field with pinpoint accuracy. Its compact size hides powerful sensing capability, enabling robots and machines to “see” their surroundings clearly, react faster, and move smarter — all while maintaining effortless installation and long-term stability.
What problem does it solve?
It eliminates blind spots and inefficiencies in automated environments. The TiM310-1030000S02 provides continuous, real-time detection that prevents collisions, misalignment, and production downtime. From navigating mobile robots to securing conveyor zones, it ensures every motion is precise, every process is safe, and every system operates with confidence and consistency.
| Feature | Details | Benefit |
|---|---|---|
| Measurement Principle | HDDM+ (High-Definition Distance Measurement) | Provides high accuracy and stability even in reflective or low-contrast conditions. |
| Detection Range | 0.05 m to 4 m | Perfect for short- to mid-range indoor applications. |
| Scanning Angle | 270° horizontal | Enables wide-area coverage for maximum situational awareness. |
| Angular Resolution | 1° | Offers detailed mapping and precise object contour detection. |
| Scanning Frequency | 15 Hz | Ensures smooth real-time detection with minimal latency. |
| Light Source / Wavelength | Infrared laser, 850 nm (Class 1) | Safe and reliable detection with consistent performance. |
| Integrated Field Evaluation | 16 field triples (48 configurable fields) | Customizable zones for safety and navigation flexibility. |
| Interfaces | Micro USB (service interface), 15-pin D-Sub HD connector | Simple connectivity for configuration and integration. |
| Power Supply | 9 V DC to 28 V DC | Supports a wide range of industrial power systems. |
| Power Consumption | Typical 4 W (16 W max) | Low energy usage reduces overall system costs. |
| Outputs / Inputs | 4 inputs, 3 outputs (plus device-ready signal) | Allows easy signal control and automation feedback. |
| Enclosure Rating | IP65 | Dust- and water-resistant for reliable indoor operation. |
| Housing Material / Color | Light blue (RAL 5012) | Compact and durable design that fits any industrial setup. |
| Operating Temperature | –10 °C to +50 °C | Performs reliably in diverse indoor environments. |
| Shock / Vibration Resistance | Up to 50 g shock, 5 g vibration | Withstands demanding mechanical conditions. |
| Weight | Approx. 150 g (without cables) | Lightweight for easy installation on mobile platforms. |
| Dimensions (L × W × H) | 60 × 60 × 79 mm | Compact design ideal for space-limited installations. |
| MTBF / MTTFd | >100 years | Ensures long-term dependability and reduced maintenance. |
| Protection Class | Class III (IEC 61140) | Enhanced electrical safety for industrial systems. |
| Compliance Standards | EN 61000, EN 60529, IEC 60825 | Meets international safety and EMC standards. |
Download SICK TiM310-1030000S02 1062221 Datasheet
| Commercial Data | Details |
|---|---|
| EAN Number | 4047084289262 |
| Weight | 438 g |
| Country of Origin | Malaysia |
In busy warehouse environments where automated guided vehicles and mobile robots share lanes with workers, the SICK TiM310-1030000S02 plays a vital role in preventing collisions. Its 270° scanning range ensures full coverage around the vehicle, detecting nearby obstacles even at close distances. The HDDM+ measurement technology allows reliable detection of reflective pallets or dark packaging materials, ensuring smooth navigation and reduced risk of accidents. This enables warehouses to increase efficiency while maintaining a high level of safety for both machines and personnel.
In manufacturing or logistics lines, maintaining uninterrupted material flow is crucial. The TiM310 can be configured with multiple detection fields to monitor entry, exit, and clearance zones along conveyors. With 1° angular resolution and 15 Hz scanning frequency, it accurately identifies misplaced items or human interference before they cause blockages. Its IP65 enclosure ensures consistent operation despite dust or vibration, reducing downtime and improving system reliability. This allows smooth automation where safety and precision are equally important.
Compact and energy-efficient, the TiM310-1030000S02 is ideal for integration on autonomous mobile robots and AGVs used in production areas. It continuously scans the environment to detect objects, machinery, or people, adapting its protective zones based on vehicle speed. The wide 270° view and short 0.05 m minimum detection range ensure that even small obstacles are detected in time. This capability helps factories achieve higher mobility, flexibility, and safety without relying on large physical barriers or complex setup processes.
Beyond industrial use, the TiM310 supports smart building applications such as corridor monitoring, elevator lobby control, and indoor robot navigation. Its high ambient light immunity (up to 80,000 lx) allows dependable operation under bright conditions, while its compact form factor enables discreet installation. Facilities can use it to detect human movement, restrict unauthorized access, or guide service robots safely within defined spaces. This makes the sensor an efficient choice for modern infrastructure requiring intelligent and responsive spatial awareness.
| Category | Model / Name | Part Number | Compatibility / Benefit |
|---|---|---|---|
| Mounting System | Mounting Kit with Shock Absorber | 2086074 | Designed for TiM3xx, TiM5xx, and TiM7xx series sensors. Provides stable alignment and reliable shock protection during operation. |
