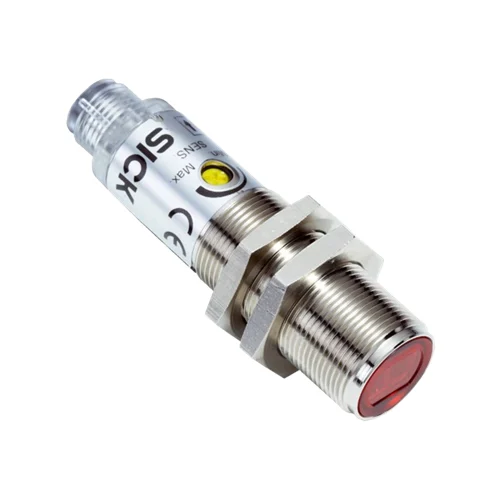

Why SICK VL180-2F32331?
Choose the SICK VL180-2F32331 for its blend of precision, speed, and endurance. This compact photoelectric sensor stands out with a 7 m detection range, dual-lens optical design, and rugged IP67 metal housing, delivering unwavering performance in fast-moving industrial lines where reliability, accuracy, and minimal maintenance truly matter.
What problem does it solve?
The VL180-2F32331 solves the challenge of reliable object detection in harsh or reflective environments. It eliminates false triggers caused by shiny, dusty, or transparent materials, ensuring consistent sensing in packaging, assembly, and conveyor applications—where traditional sensors struggle to distinguish complex surfaces under variable lighting or motion conditions.
Key Features & Specifications – SICK VL180-2F32331: 6043458
| Feature | Details | Benefit |
|---|---|---|
| Functional Principle | Photoelectric retro-reflective sensor (dual-lens system) | Ensures stable and accurate detection even at close reflector distances. |
| Sensing Range | 0.05 m – 7 m (typical), 0.05 m – 6 m (operational) | Offers flexible installation for short to medium-distance detection. |
| Light Source | Visible red LED, 645 nm wavelength | Provides easy visual alignment and consistent optical output. |
| Response Time | ≤ 0.5 ms | Enables high-speed detection in fast production or conveyor systems. |
| Switching Frequency | 1,000 Hz | Supports rapid object detection with minimal latency. |
| Output Type | PNP, Light-on switching | Compatible with most industrial control systems. |
| Adjustment | Potentiometer, 270° sensitivity control | Simple and precise on-site calibration for different materials. |
| Polarization Filter | Integrated | Reliable detection of shiny or reflective surfaces without false triggers. |
| Housing Design | M18 × 70.2 mm, axial optical axis | Compact and space-saving for easy integration in machine layouts. |
| Housing Material | Nickel-plated brass and PC (polycarbonate) | Delivers strong mechanical protection and resistance to corrosion. |
| Optics Material | PMMA (plastic) | Provides optical clarity and durability under industrial stress. |
| Protection Rating | IP67 | Withstands dust and water exposure for reliable operation in harsh environments. |
| Operating Temperature | –25 °C to +55 °C | Suitable for both indoor and outdoor industrial applications. |
| Power Supply | 10 V DC – 30 V DC | Flexible connection to standard industrial power systems. |
| Connection Type | M12, 4-pin male connector | Quick and secure installation with standard cabling. |
| Certifications | CE, cULus, UKCA, China-RoHS | Globally recognized quality and compliance standards. |
| MTTFD | 1,883.8 years | Extremely long operational lifetime for reduced maintenance. |
Download SICK VL180-2F32331 (6043458) Datasheet
Commercial Information – SICK VL180-2F32331: 6043458
| Item | Details |
|---|---|
| Weight | 98 g |
| Country of Origin | China |
The Applications of SICK VL180-2F32331
1. Transparent Bottle Detection on Filling Lines
In beverage production, clear plastic bottles filled with transparent liquids often confuse conventional sensors. The VL180-2F32331 solves this by using its red-light LED and built-in polarization filter to clearly differentiate the bottle surface from the background. Its 0.5 ms response time ensures accurate detection at high conveyor speeds, preventing missed counts or misfills. The long 7 m sensing range and adjustable sensitivity make setup simple, even where equipment vibration or reflector misalignment is common.
2. Shiny Metal Component Presence in Automotive Assembly
Automotive assembly lines demand sensors that can handle reflections from polished metal parts. The VL180-2F32331 eliminates false triggers through its dual-lens system and polarization filter. Its IP67 metal housing resists heat, oil mist, and vibration near robotic welding stations. By confirming part presence with precise optical feedback, it ensures components are in place before assembly continues—reducing costly production errors and increasing line reliability.
3. Case Filling Verification in Packaging Machines
In packaging lines, detecting whether a box is properly filled can be difficult when surfaces vary in texture or gloss. The VL180-2F32331 provides consistent detection thanks to its 270° sensitivity adjustment and 1 kHz switching frequency. Operators can fine-tune performance for different box materials or product shapes without changing hardware. Its fast optical response helps verify filled and empty cartons instantly, preventing sealing errors and improving overall packaging efficiency.
4. Pallet and Tote Positioning in Warehouse Automation
In logistics and warehouse systems, accurate positioning of pallets or totes is essential for smooth operations. The VL180-2F32331’s long detection range allows sensors to be mounted safely away from moving equipment, avoiding physical damage. Its bright LED indicators offer quick visual feedback for setup or maintenance checks. Resistant to dust and impact, this sensor ensures dependable item detection in high-traffic environments, enabling automated guided vehicles and conveyors to run with precision and minimal downtime.
