$ 217.81
Discover the SICK WF50-40B410 Fork Sensor for ultra-fast, precise label and edge detection. Durable, compact, and built for reliable industrial automation.

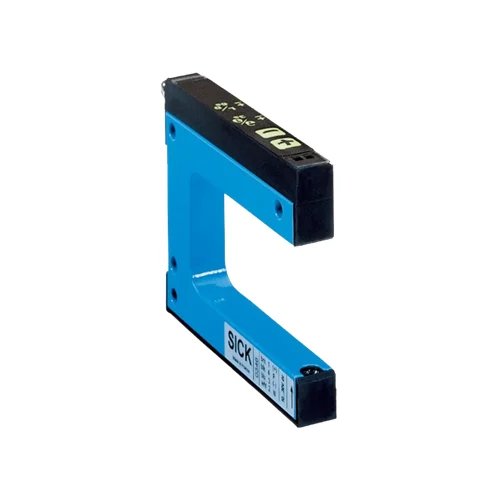

The SICK WF50-40B410 Fork Sensor is a high-performance optical detection sensor built for fast and accurate detection of labels, edges, and fine objects. Featuring a 50 mm fork width and infrared LED light source, it delivers stable sensing performance even in difficult environments. With its 0.2 mm minimum detectable object size and ≤ 100 µs response time, this compact sensor ensures dependable operation on automated machinery. Encased in a durable aluminum body with IP65 protection, it withstands dust, vibration, and temperature changes, making it ideal for industrial applications requiring precise and consistent object detection.
The WF50-40B410 offers high-speed 10 kHz switching, allowing precise timing in label applicators, packaging machines, and assembly lines. Its easy-to-use plus/minus sensitivity buttons simplify setup and fine-tuning on site, while PNP/NPN switchable outputs provide flexibility with control systems. Compact dimensions of 10 × 80 × 57 mm allow it to fit into narrow spaces without performance loss. Designed for long-term reliability with an expected service life of up to 97 years MTTFd, this fork sensor reduces maintenance needs, minimizes downtime, and helps manufacturers achieve better alignment, accuracy, and production efficiency.
Why SICK WF50-40B410?
The SICK WF50-40B410 stands out for its exceptional speed, precision, and stability in detecting even the smallest labels or edges. Its compact aluminum design, intuitive adjustment buttons, and adaptable outputs make it a trusted solution for automation engineers who demand consistent performance in high-speed, space-limited production environments.
What Problem Does It Solve?
The WF50-40B410 eliminates missed detections and alignment errors in labeling, packaging, and assembly systems. It solves challenges where tiny or transparent materials are hard to detect, ensuring every label, tag, or edge is recognized accurately. This results in smoother workflows, reduced waste, and higher operational efficiency across automated production lines.
| Feature | Details | Benefit |
|---|---|---|
| Functional Principle | Optical detection, infrared LED light source | Provides accurate detection of transparent or small objects. |
| Fork Width / Depth | 50 mm / 42 mm | Ideal balance between sensing area and compact design for versatility. |
| Minimum Detectable Object | 0.2 mm | Detects even the thinnest labels or edges with high accuracy. |
| Response Time | ≤ 100 µs | Enables high-speed operations in fast-moving production lines. |
| Switching Frequency | 10 kHz | Ensures rapid response for precise label and part detection. |
| Adjustment Method | Plus/Minus button (Sensitivity, Light/Dark mode, Key lock) | Simple setup and fine-tuning without additional tools. |
| Output Type | PNP/NPN selectable | Flexible integration with various PLC or control systems. |
| Operating Voltage | 10–30 V DC | Compatible with standard industrial power supplies. |
| Enclosure Rating | IP65 | Protected against dust and low-pressure water jets, ensuring durability. |
| Housing Material | Aluminum | Provides lightweight strength and long operational lifespan. |
| Connection Type | M8, 4-pin male connector | Allows secure and quick electrical connection. |
| Operating Temperature | –20 °C to +60 °C | Reliable function across wide temperature ranges. |
| MTTFD (Reliability) | 97 years | Long operational life with minimal maintenance. |
| Weight | Approx. 36–160 g (depending on fork width) | Easy installation and suitable for compact machinery. |
| Certifications | CE, cULus, UKCA, China-RoHS, ACMA | Meets international safety and quality standards. |
Download SICK WF50-40B410 (6028432) Datasheet
| Commercial Data | Details |
|---|---|
| EAN Number | 4047084112270 |
| Weight | 68 g |
| Country of Origin | France |
In modern labeling systems, maintaining accurate detection of fast-moving, transparent labels is a major challenge. The WF50-40B410 solves this with its ultra-fast response time and fine 0.2 mm detection capability. The integrated fork design eliminates alignment errors between emitter and receiver, reducing setup effort. Its stable infrared light ensures consistent performance under bright ambient conditions, preventing missed detections and ensuring every label is applied precisely on high-speed packaging conveyors.
During film or foil processing, accurate edge tracking is critical for maintaining product alignment. The WF50-40B410 provides stable detection even on clear or glossy films thanks to its infrared beam and precise optical alignment. Its 50 mm fork width accommodates a variety of web materials while offering instantaneous feedback at high speeds. This improves cutting and lamination precision, reduces material waste, and ensures smooth operation in automated web-handling systems.
Automated assembly lines often require reliable detection of very small objects such as electronic leads or metal pins. The WF50-40B410 delivers this precision with its 0.2 mm detection capability and 10 kHz switching frequency. Its compact size allows easy integration into tight spaces, while the IP65-rated aluminum body withstands industrial vibration and dust. This ensures accurate part counting, presence verification, and process control in micro-assembly and electronics production.
In print-finishing or paper converting lines, the WF50-40B410 is ideal for identifying perforations, punched holes, or slots in moving sheets. Its high sensitivity and quick response prevent false readings, even at high throughput speeds. The adjustable sensitivity buttons allow easy tuning for materials of different colors or reflectivity. By maintaining precise detection without mechanical adjustments, it ensures smoother cutting, folding, and stacking operations, enhancing overall production quality and reliability.
| Category | Model Name | Manufacturer Part Number | Compatibility / Benefit |
|---|---|---|---|
| Fork Sensor (Main Unit) | WF50-40B410 | 6028432 | Core sensing unit for precise label, edge, and small-object detection in automation systems. |
| Connection Cable | STE-0804-G | 6037323 | Provides a secure and stable electrical connection between the sensor and control system. |
| Sensor/Actuator Cable | YF8U14-050VA3XLEAX | 2095889 | Ideal for connecting the WF50-40B410 in clean or chemically exposed industrial zones. |
