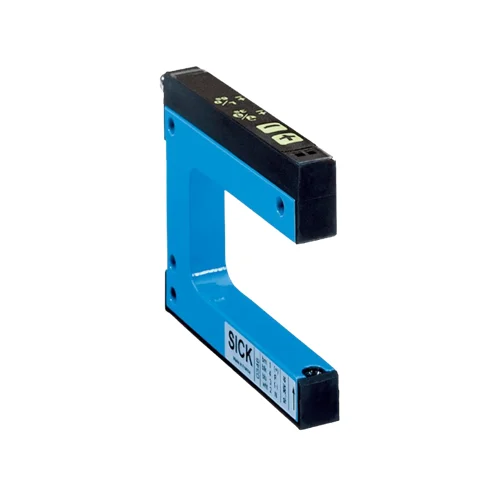

SICK WF80-40B410 Fork Sensor – High-Speed Infrared Detection
The SICK WF80-40B410 Fork Sensor is a compact and precise optical sensor engineered for reliable detection of very small targets, labels, or print marks in automation systems. Equipped with an infrared LED light source and a wide 80 mm fork opening, it maintains accurate performance even when handling glossy or transparent materials. The rugged aluminum housing with IP65 protection ensures long-lasting operation in industrial environments. With a detection capability down to 0.2 mm and a response time of 100 microseconds or less, it delivers dependable, high-speed detection for labeling, packaging, and motion control applications.
The SICK WF80-40B410 combines precision sensing with fast response to enhance production efficiency and reduce errors. Operators can conveniently adjust settings through simple “+/-” buttons, allowing quick adaptation to different materials or conditions. The high 10 kHz switching frequency makes it ideal for fast-moving processes like label verification, product counting, and registration mark detection. Its dual PNP/NPN output design provides easy system integration, while the robust metal body ensures vibration resistance and long service life. Designed for dependable operation, this fork sensor helps manufacturers achieve consistent, maintenance-free performance in automated production lines.
Why SICK WF80-40B410?
Because precision matters where speed can’t fail. The SICK WF80-40B410 delivers razor-sharp detection of even 0.2 mm targets at lightning-fast speeds. Its robust aluminum body, infrared sensing technology, and intuitive controls make it a trusted choice for engineers demanding consistent, high-performance sensing in challenging industrial environments.
What Problem Does It Solve?
In fast-moving production lines, false triggers and missed labels can disrupt entire operations. The WF80-40B410 eliminates these issues with its rapid 100 µs response and advanced light/dark switching. It ensures accurate detection of small or transparent objects, solving the toughest challenges in packaging, labeling, and precision assembly.
Key Features & Specifications – SICK WF80-40B410 : Article Number 6028433
| Feature | Details | Benefit |
|---|---|---|
| Functional Principle | Optical detection, infrared LED | Enables accurate label and small-object detection, even on reflective or transparent surfaces. |
| Fork Width / Depth | 80 mm / 42 mm | Provides large detection window for various label sizes and applications. |
| Minimum Detectable Object (MDO) | 0.2 mm | Detects ultra-small labels or print marks with exceptional accuracy. |
| Response Time | ≤ 100 µs | Ensures immediate detection for high-speed labeling or packaging systems. |
| Switching Frequency | 10 kHz | Supports fast-moving conveyor or labeling processes without errors. |
| Adjustment Method | Plus/minus buttons (sensitivity, light/dark switching, key lock) | Simplifies setup and calibration without external tools. |
| Output Function | PNP/NPN selectable, light/dark switching | Offers flexible integration into different control systems. |
| Supply Voltage | 10–30 V DC | Wide voltage range compatible with most automation equipment. |
| Current Consumption | 40 mA typical | Energy-efficient performance with minimal power draw. |
| Output Current | Max. 100 mA | Supports reliable signal output for PLC or I/O connections. |
| Enclosure Rating | IP65 | Dust-tight and water-resistant for harsh industrial conditions. |
| Housing Material | Aluminum | Provides lightweight durability and vibration resistance. |
| Connection Type | M8, 4-pin male connector | Standardized interface for easy wiring and quick installation. |
| Operating Temperature Range | –20°C to +60°C | Suitable for a wide range of indoor and semi-outdoor environments. |
| Certifications | CE, UKCA, cULus, China-RoHS | Globally recognized compliance for safety and reliability. |
Download SICK WF80-40B410 (6028433) Datasheet
Commercial Information – SICK WF80-40B410 : Article Number 6028433
| Commercial Data | Details |
|---|---|
| EAN Number (GTIN) | 4047084112287 |
| Weight | 78 g |
| Country of Origin | France |
