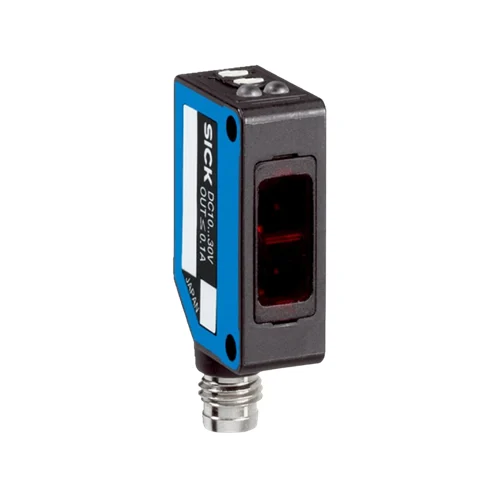

Why SICK WL100L-F1131S02?
Because precision meets speed — the SICK WL100L-F1131S02 uses a focused red laser beam and dual-lens technology to detect even the smallest objects at lightning-fast speeds. It’s engineered for tight spaces, built tough for industrial use, and fine-tuned for accuracy that keeps automated systems running flawlessly.
What Problem Does It Solve?
The WL100L-F1131S02 eliminates unreliable detection in fast-moving or reflective applications. It solves issues of miscounts, false triggers, and missed items in high-speed production lines. By delivering consistent laser-based accuracy, it ensures every product, package, or component is detected — improving efficiency, quality control, and system uptime.
Key Features & Specifications – SICK WL100L-F1131S02 : Article Number 6042891
| Feature | Details | Benefit |
|---|---|---|
| Functional Principle | Photoelectric retro-reflective with dual-lens system | Provides stable detection even for small or shiny objects. |
| Light Source | Visible red laser, 650 nm (Class 1) | Delivers pinpoint accuracy and safe operation. |
| Sensing Range | 0.08 m – 10 m (max 12 m with reflector) | Wide detection range for flexible installation options. |
| Response Time | < 0.25 ms | Enables reliable detection of fast-moving items. |
| Switching Output | PNP, Light/Dark switching selectable | Adaptable to diverse automation system logics. |
| Supply Voltage | 10 V DC – 30 V DC | Compatible with standard industrial power supplies. |
| Switching Frequency | Up to 2 kHz | Ideal for high-speed production or sorting lines. |
| Adjustment | 270° Potentiometer and Light/Dark selector | Simplifies setup and fine-tuning on site. |
| Housing Material | ABS / PC / POM | Durable construction ensures long service life. |
| Optics Material | PMMA | Maintains optical clarity and laser precision. |
| Enclosure Rating | IP65 | Protected against dust and water spray for industrial use. |
| Operating Temperature | –10 °C to +50 °C | Performs reliably in variable environments. |
| Weight | 50 g | Compact and lightweight for easy mounting. |
| Included Accessories | BEF-W100-A Mounting Bracket, P250F Reflector | Ready-to-install package for quick integration. |
| Certifications | CE, UKCA, cRUus, Laser Safety (IEC 60825-1) | Complies with international safety and quality standards. |
| Mean Time to Dangerous Failure (MTTFD) | 438 years | Extremely long lifetime ensures dependable operation. |
| Connection Type | Cable with M12 male connector, 4-pin, 200 mm | Simple plug-and-play connectivity for automation setups. |
| Typical Applications | Object detection, counting, packaging, robotics | Improves production accuracy and automation efficiency. |
Download WL100L-F1131S02 (Article No. 6042891) Datasheet
Commercial Information – SICK WL100L-F1131S02 : Article Number 6042891
| Commercial Data | Details |
|---|---|
| Weight | 75 g |
| Country of Origin | Japan |
