$ 165.83
Discover the SICK WL100L-F2231 laser photoelectric sensor for precise, fast detection of small or moving objects. Compact, reliable, and IP65-rated.

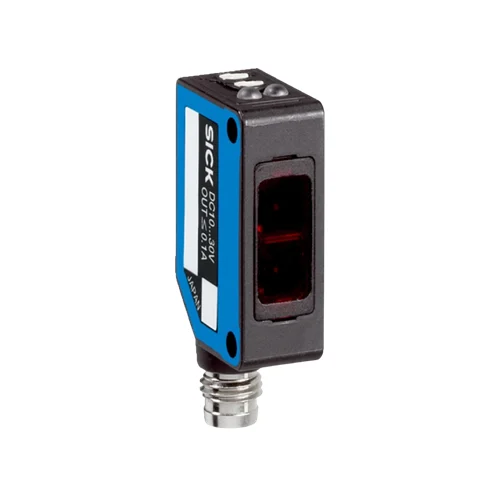

The SICK WL100L-F2231 Laser Photoelectric Sensor is a precision retro-reflective sensor built for detecting small or rapidly moving objects with high accuracy. Equipped with a visible red laser (650 nm) and dual-lens optical design, it maintains consistent detection performance up to 12 meters even in tight spaces or reflective environments. Its lightweight 10 g rectangular housing and IP65 protection ensure reliable operation in industrial settings. With a fast 0.25 ms response time, it excels in applications that demand both speed and precise positioning, making it a strong choice for automated production systems.
Designed for fast-paced automation and precision assembly, the WL100L-F2231 provides dependable detection under variable lighting and surface conditions. The adjustable potentiometer allows users to fine-tune sensitivity for different materials, while the light/dark switch enables versatile operation modes. Its polarizing filter eliminates false readings from reflective surfaces, improving accuracy on metallic or glossy targets. Constructed from durable ABS/PC housing with long-life laser technology, it delivers outstanding stability and minimal maintenance needs—helping reduce downtime and ensuring continuous operation in packaging, electronics, and logistics environments.
Why SICK WL100L-F2231?
The SICK WL100L-F2231 stands out for its laser precision and ultra-fast response, bringing next-level accuracy to compact automation systems. Its dual-lens laser design detects even tiny, fast-moving parts with confidence, offering industrial engineers a smart, plug-and-play solution that combines speed, reliability, and consistent performance in one remarkably small sensor.
What Problem Does It Solve?
The WL100L-F2231 eliminates detection errors caused by glossy surfaces, vibrations, or limited installation space. It solves the challenge of detecting small or high-speed objects that standard sensors often miss. With stable laser alignment, high switching frequency, and intelligent filtering, it ensures flawless object recognition—even in demanding, high-throughput production lines.
| Feature | Details | Benefit |
|---|---|---|
| Functional Principle | Retro-reflective photoelectric sensor with dual-lens system | Ensures accurate detection even at close range to the reflector |
| Light Source | Class 1 visible red laser, 650 nm wavelength | Provides precise alignment and reliable object recognition |
| Sensing Range | 0.08 m to 12 m (typical 10 m with reflector P250F) | Long detection distance suitable for flexible installation |
| Response Time | < 0.25 ms | Enables high-speed object detection and real-time process control |
| Switching Frequency | Up to 2,000 Hz | Ideal for fast-moving objects on production lines |
| Switching Output | PNP, light/dark selectable via rotary switch | Adaptable to various control logic configurations |
| Adjustment | Potentiometer, 270° rotation | Easy on-site sensitivity and range tuning |
| Supply Voltage | 10 V DC to 30 V DC | Compatible with standard industrial power supplies |
| Current Consumption | 30 mA (typical, no load) | Low power draw for energy-efficient systems |
| Enclosure Rating | IP65 | Resistant to dust and water jets for industrial reliability |
| Housing Material | Plastic, ABS/PC | Lightweight yet durable construction for long service life |
| Optics Material | Plastic, PMMA | Clear optical performance with robust protection |
| Operating Temperature | –10 °C to +50 °C | Performs reliably across diverse environments |
| Laser Safety | Class 1 (IEC 60825-1 certified) | Safe for human operation with no protective gear required |
| MTTFD | 438 years | Exceptional longevity minimizes maintenance downtime |
Download SICK WL100L-F2231 (6030710) Datasheet
| Commercial Data | Details |
|---|---|
| EAN Number | 4047084162589 |
| Weight | 68 g |
| Country of Origin | Japan |
| Category | Product Name / Description | Manufacturer Part Number | Part Number | Purpose / Benefit |
|---|---|---|---|---|
| Mounting Bracket | Mounting bracket for wall or surface installation, made from stainless steel with included hardware | BEF-W100-A | 5311520 | Enables secure and stable mounting of the WL100L-F2231 sensor in various orientations |
| Universal Clamp Plate | Plate N08 for universal clamp bracket; zinc-plated steel with included mounting hardware | BEF-KHS-N08 | 2051607 | Allows flexible positioning and quick re-adjustment of the sensor on machinery or automation lines |
| Reflector (Standard) | Fine triple reflector, screw connection, suitable for laser sensors | P250F | 5308843 | Provides optimal reflection for the WL100L-F2231, ensuring accurate and stable detection up to 12 m |
| Reflector (Alternative) | Universal mounting bracket for reflectors, steel zinc-coated | BEF-WN-REFX | 2064574 | Designed to hold reflectors like P250F, ensuring reliable alignment and long-term stability |
| Connection Cable (5 m) | Sensor/actuator cable, M8 4-pin straight connector, PVC 5 m | YF8U14-050VA3XLEAX | 2095889 | Provides power and signal connectivity between the sensor and control system |
| Terminal Connector | M8 male connector, 4-pin, unshielded screw-type terminal | STE-0804-G | 6037323 | Simplifies wiring connection to control panels or PLCs without additional adapters |
