$ 138.69
High-performance SICK WLA16P-34161100A00 sensor offers 10 m range, IO-Link, and BluePilot alignment for precise, reliable object detection.

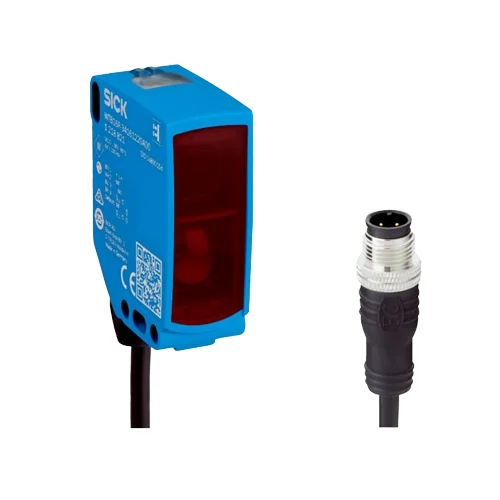

The SICK WLA16P-34161100A00 is a photoelectric retro-reflective sensor engineered for precise and stable detection across demanding environments. Using visible red PinPoint LED light and coaxial optics, it provides reliable sensing up to 10 m, even with transparent or glossy targets. Its compact VISTAL® housing, intuitive BluePilot LED alignment aid, and IO-Link interface make installation fast and parameterization straightforward. Built to IP69 protection standards, it withstands water jets, vibration, and temperature extremes, making it ideal for factories that require consistent performance and long-term dependability in automation and inspection systems.
The WLA16P-34161100A00 enhances production efficiency through its fast 500 µs response time and Smart Task logic functions, allowing localized control without extra hardware. Its high operating reserve maintains accuracy even when optical surfaces are dusty or misaligned. The sensor’s rugged materials and ECOLAB-certified resistance make it suitable for wash-down zones and chemical environments. Through IO-Link communication, users gain easy access to diagnostics, predictive maintenance, and quick device replacement. This sensor offers dependable performance for applications such as automated packaging, food and beverage lines, conveyor inspection, and warehouse logistics, where precision and uptime are critical.
Why SICK WLA16P-34161100A00?
Because it merges intelligent sensing with industrial toughness. The WLA16P-34161100A00 combines PinPoint LED accuracy, BluePilot visual alignment, and IO-Link intelligence in one compact unit—giving engineers a sensor that’s easy to install, self-monitoring, and built to thrive where others fail. It’s not just detection—it’s precision made practical.
What problem does it solve?
It eliminates false triggers and maintenance headaches in reflective or transparent object detection. Designed for high-speed automation lines, it cuts downtime caused by misalignment, contamination, and inconsistent reads. With real-time feedback via IO-Link, it turns troubleshooting into proactive maintenance—keeping machines running smoothly and productivity uninterrupted.
| Feature | Details | Benefit |
|---|---|---|
| Functional Principle | Photoelectric retro-reflective sensor with coaxial optics | Enables precise detection of shiny, transparent, or film-wrapped objects |
| Light Source | PinPoint visible red LED (635 nm) | Delivers a bright, focused beam for easy alignment and accurate sensing |
| Sensing Range | 0 m – 10 m (recommended up to 7 m with reflector PL80A) | Ensures long-distance detection flexibility for various applications |
| IO-Link Interface | Version 1.1, COM2 (38.4 kBaud), 16-bit process data | Enables smart communication, easy setup, and remote parameter adjustment |
| Response Time | ≤ 500 µs | Ideal for high-speed automation and fast-moving targets |
| Switching Frequency | Up to 1,000 Hz | Provides rapid detection cycles for demanding production lines |
| Output Type | Push-pull (PNP/NPN), complementary 2 outputs | Flexible integration with existing PLCs and control systems |
| Smart Task Functions | AND / OR logic, hysteresis, delay timers, impulse mode | Simplifies automation logic without external devices |
| Alignment Aid | BluePilot blue LED indicator | Simplifies sensor setup and maintains optimal alignment visually |
| Housing Material | VISTAL® reinforced plastic with PMMA lens | Offers exceptional strength, chemical resistance, and longevity |
| Protection Rating | IP66 / IP67 / IP69 – ECOLAB certified | Perfect for wash-down or harsh industrial environments |
| Operating Temperature | –40 °C to +60 °C | Suitable for cold storage, outdoor, and heavy-duty environments |
| Supply Voltage | 10 V DC – 30 V DC | Compatible with a wide range of industrial power supplies |
| Mechanical Dimensions | 20 mm × 55.7 mm × 42 mm | Compact rectangular body fits tight mounting spaces |
| Certifications | CE, UKCA, UL, China RoHS, ECOLAB approved | Ensures global compliance and quality assurance |
| Mean Time to Failure (MTTFd) | 690 years | Demonstrates outstanding durability and reliability |
Download SICK WLA16P-34161100A00 (1221729) Datasheet
| Item | Details |
|---|---|
| EAN Number | 4047084454172 |
| Weight | 102 g |
| Country of Origin | Germany |
In high-speed packaging systems where clear shrink-wrap or transparent film is used, traditional sensors struggle to detect the film’s edge due to low reflectivity. The WLA16P-34161100A00 solves this by using coaxial PinPoint LED optics that precisely detect even thin transparent layers. Its BluePilot alignment LED allows quick setup and consistent positioning. The result is a more reliable wrapping process with fewer false signals, reduced film waste, and improved packaging consistency on automated production lines.
In bottling lines handling glass or PET bottles, detection must remain stable despite condensation or splashes. The WLA16P-34161100A00 maintains reliable sensing at distances up to 10 meters, even through water droplets or steam. Its IP69-rated housing and ECOLAB-certified resistance allow it to endure regular washdowns and cleaning cycles. With a response time under 500 µs, it detects fast-moving bottles precisely, helping maintain steady flow rates and preventing line stoppages in beverage production.
Automated warehouses depend on accurate pallet and crate detection to avoid jams and misplacements. The WLA16P-34161100A00 supports Smart Task logic such as AND/OR and delay functions, allowing on-site decision-making without needing PLC reprogramming. Its IO-Link interface reports sensor health and contamination status, preventing unplanned downtime. Even in dusty or low-light environments, its high operating reserve ensures dependable pallet recognition, improving logistics efficiency and workflow reliability.
On compact assembly machines, detecting small or reflective parts is often challenging. The WLA16P-34161100A00 uses a fine point-shaped light spot and fast 1 kHz switching frequency to detect items of various materials and finishes. Its compact form fits easily into tight spaces, while VISTAL® housing ensures durability under vibration and mechanical stress. By providing accurate detection even at high speeds, it prevents feeding errors, reduces downtime, and increases throughput in automated assembly processes.
| Category | Model Name | Part Number | Benefits / Description |
|---|---|---|---|
| Mounting Bracket (Adjustable Type) | BEF-WN-MULTI2 | 2093945 | Universal mounting bracket with articulated arm; allows flexible sensor positioning; made of zinc-coated steel for durability. |
| Mounting Plate (Clamp Type) | BEF-KHS-N02 | 2051608 | Mounting plate with universal clamp; compatible with W16 series sensors; ideal for fixed installation on conveyor systems. |
| Large Stainless Steel Mounting Bracket | BEF-WG-W12 | 2013942 | Robust stainless-steel bracket designed for environments requiring corrosion resistance and mechanical strength. |
| Adapter Mounting Plate | BEF-AP-W16 | 2095677 | Plastic adapter for mounting W16 sensors into existing W14-2/W18-3 or L25/L28 installations—ideal for retrofit applications. |
| Reflector (Standard Type) | PL80A | 1003865 | Recommended reflector for retro-reflective operation; 84 mm × 84 mm; optimal for up to 7 m range and standard performance. |
| Universal Reflector Mounting Bracket | BEF-WN-REFX | 2064574 | Zinc-coated steel reflector mount compatible with PL20, PL30A, PL40A, PL80A models; provides stable reflector positioning. |
| Stainless Steel Mounting Plate (Hygienic Type) | BEF-KHS-N11N | 2071081 | Stainless-steel mounting plate (grade 1.4571/1.4408) suitable for hygienic and food-grade applications. |
| Sensor Cable (PVC Type) | YF2A14-050VB3XLEAX | 2096235 | M12 female connector to flying leads; 5 m PVC cable; ideal for standard environments and general-purpose automation zones. |
| Sensor Cable (PUR Type) | YF2A14-050UB3XLEAX | 2095608 | M12 female connector to flying leads; 5 m PUR halogen-free cable; resistant to oil, lubricants, and continuous flexing (drag chain). |
