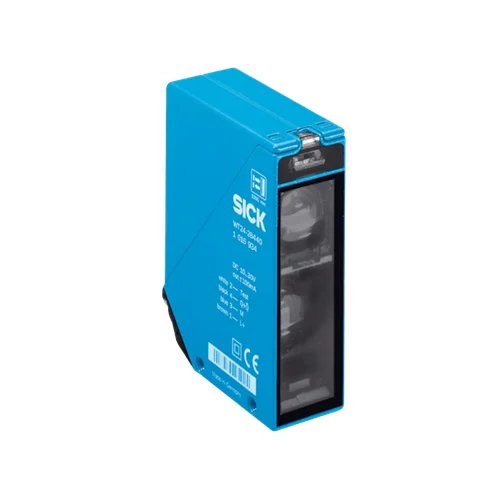

SICK WT24-2B250 Photoelectric Sensor with Background Suppression
The SICK WT24-2B250 Photoelectric Sensor is a compact and durable detection solution designed for precise object sensing in automated production systems. Using background suppression technology, it reliably distinguishes targets from surrounding surfaces within a 100 mm to 1,200 mm range. Its visible red LED light and easy adjustment via potentiometer make setup straightforward, while the metal zinc housing (IP67) ensures long-term durability even in demanding factory environments. Compact dimensions and selectable PNP/NPN outputs provide flexibility for a variety of machine configurations, making it ideal for packaging, logistics, and assembly line applications.
Engineered for stable performance, the WT24-2B250 offers rapid response times up to 500 microseconds and a switching frequency of 1 kHz, allowing it to detect fast-moving parts with precision. Its built-in front lens heating prevents fogging and maintains accuracy in cold or humid conditions. The light/dark selection switch enables quick configuration to match system requirements without additional tools. With an exceptionally long service life and high resistance to electrical interference, this sensor minimizes downtime and ensures dependable operation in automation environments, reducing maintenance effort while improving production consistency.
Why SICK WT24-2B250?
Choose the SICK WT24-2B250 for its exceptional precision, speed, and adaptability in industrial automation. Designed with background suppression and red-light LED technology, it delivers reliable detection even in complex environments. Its rugged metal housing and smart configurability make it a trusted performer for factories demanding accuracy, longevity, and consistent operation.
What problem does it solve?
The WT24-2B250 eliminates false triggers caused by background reflections, uneven surfaces, or variable lighting—common challenges in automated lines. It ensures stable object detection at varying distances and materials, maintaining production flow without interruption. This sensor simplifies setup, enhances accuracy, and reduces downtime, enabling seamless integration into modern manufacturing systems.
Key Features & Specifications – SICK WT24-2B250: 1017883
| Feature | Details | Benefit |
|---|---|---|
| Functional Principle | Photoelectric proximity sensor with background suppression | Ensures accurate detection even in complex lighting or reflective environments |
| Sensing Range | 100 mm – 1,200 mm (adjustable via potentiometer) | Flexible distance detection for varied industrial applications |
| Light Source | Visible red LED | Easy alignment and reliable optical performance |
| Response Time | ≤ 500 µs | Enables high-speed detection of fast-moving objects |
| Switching Frequency | 1,000 Hz | Ideal for rapid automation and conveyor systems |
| Output Type | Selectable NPN or PNP | Simplifies integration into different control systems |
| Switching Mode | Light/dark switching selectable | Adapts to diverse operating conditions for stable performance |
| Front Screen Heating | Integrated heater for optical surface | Prevents condensation and maintains consistent detection in cold or humid environments |
| Housing Material | Zinc die-cast metal | Provides durability and mechanical stability in harsh industrial settings |
| Optics Material | PMMA plastic | Ensures optical clarity and longevity |
| Protection Class | IP67 | Dust-tight and waterproof for long-term reliability |
| Power Supply | 10 V DC – 30 V DC | Wide voltage tolerance for flexible use across systems |
| Connection Type | Terminal connection with M16 gland | Secure and easy wiring for industrial installations |
| Adjustment Controls | Potentiometer and selector switches | Simplifies fine-tuning of sensing range and operation modes |
| Operating Temperature | –40°C to +60°C | Performs reliably in extreme environmental conditions |
| MTTFD (Reliability) | 611 years | Exceptional lifespan reduces maintenance and replacement costs |
| Certifications | CE, cULus, UKCA, China-RoHS | Compliance with global industrial standards for quality and safety |
Download SICK WT24-2B250 (1017883) Datasheet
Commercial Data – SICK WT24-2B250: 1017883
| Parameter | Value |
|---|---|
| EAN Number | 4047084122156 |
| Weight | 385 g |
| Country of Origin | Hungary |
The Applications of SICK WT24-2B250 Photoelectric Sensor
1. Precision Detection in Metal Sheet Processing
In sheet-metal fabrication lines, the WT24-2B250 ensures accurate detection of metal sheets despite shiny or uneven surfaces. Its background suppression eliminates false readings from reflective machinery or lighting. With a sensing range up to 1,200 mm, the sensor can reliably identify edges and gaps for positioning or cutting control. The IP67 zinc die-cast housing resists metal dust and oil spray, keeping the system stable under heavy vibration and heat from surrounding equipment.
2. Automated Packaging and Conveyor Systems
In automated packaging lines, the WT24-2B250 detects products of different shapes, materials, and colors on high-speed conveyors. Its light/dark mode selection helps differentiate objects from the moving belt, ensuring every item is counted or verified before sealing. The integrated lens heater prevents condensation in humid environments, maintaining precision where temperature changes are frequent, such as in chilled food or beverage packaging operations.
3. Positioning Control in Metal Coil Handling
During coil transport and unwinding operations, accurate alignment is crucial. The WT24-2B250 provides consistent detection of coil ends or edges even when surrounded by reflective steel. Its fast 500 µs response time captures rapid motion, while the robust metal housing withstands vibration and heavy mechanical stress. This allows smoother transitions between processing stages and minimizes misalignment, improving overall production efficiency.
4. Pallet and Object Detection in Automated Warehouses
In warehouse automation and AGV (Automated Guided Vehicle) systems, the WT24-2B250 is ideal for sensing pallet positions or confirming product presence on storage racks. The adjustable sensing range ignores fixed backgrounds while focusing on moving goods, preventing false triggers from reflective packaging. Its 1 kHz switching frequency supports real-time control, enabling reliable logistics tracking and optimizing warehouse throughput.
Related Products & Accessories – SICK WT24-2B250: 1017883
| Category | Product Name | Part Number | Description | Compatibility / Benefit |
|---|---|---|---|---|
| Mounting Bracket | BEF-WG-W24 | 4026324 | Stainless steel mounting bracket designed for W24 series sensors | Provides firm and secure installation in industrial environments |
