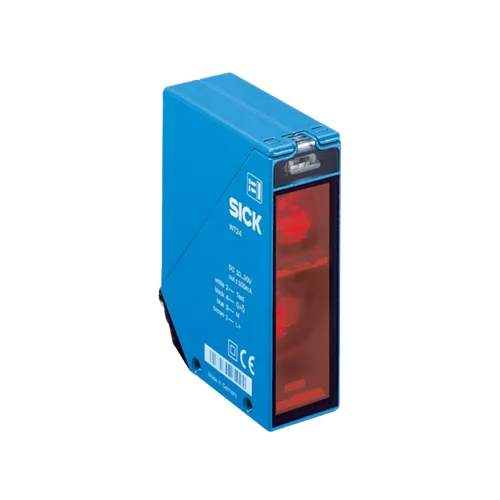

SICK WT24-2R210 Photoelectric Sensor with Background Suppression

SICK WT24-2R210 Photoelectric Sensor – High-Precision Detection with Background Suppression

The SICK WT24-2R210 Photoelectric Sensor is designed for dependable object detection using advanced infrared LED sensing and background suppression technology. Built within a sturdy zinc die-cast housing and rated IP67, it performs reliably even in harsh factory environments. The unit can detect targets from 100 mm to 2,500 mm, maintaining consistent accuracy regardless of object color or surface reflectivity. Its broad 20 – 250 V AC/DC supply range and fast 10 ms response time make it ideal for packaging, logistics, and manufacturing systems where stability and speed are essential to prevent production downtime.

The WT24-2R210 offers both precision and versatility for industrial automation. It uses an easily adjustable potentiometer for fine-tuning the detection range and provides a change-over relay output for flexible light or dark switching. The metal enclosure withstands vibration and mechanical stress, ensuring long-term operational reliability from –40 °C to +60 °C. A clear LED indicator provides instant visual feedback of signal strength, simplifying setup and maintenance. This sensor excels in detecting diverse materials on conveyors or robotic systems, minimizing false triggers and ensuring continuous, fault-free production control.

Why SICK WT24-2R210?
Choose the SICK WT24-2R210 for its precision and endurance. With intelligent background suppression, rugged metal housing, and fast response, it delivers reliable detection even in dusty or reflective environments. It’s a sensor built to think — maintaining accuracy where ordinary sensors fail, ensuring your automation line never misses a beat.

What Problem Does It Solve?
The WT24-2R210 eliminates false triggers and detection instability caused by reflections, color variations, or ambient light. It solves the common challenge of inconsistent sensing in dynamic industrial setups, ensuring smooth flow control, accurate part detection, and uninterrupted production — all while reducing maintenance time and costly process interruptions.

Key Features & Specifications – SICK WT24-2R210: Article Number 1016932

Feature	Details	Benefit
Sensing Technology	Photoelectric proximity sensor with background suppression	Ensures precise detection even on reflective or uneven surfaces
Sensing Range	100 mm to 2,500 mm	Covers both close-range and long-range detection for flexible applications
Light Source	Infrared LED (long service life up to 100,000 hours)	Stable performance with reduced maintenance and long operational life
Response Time	≤ 10 ms	Enables high-speed detection for fast-moving production lines
Switching Output	Relay output with change-over contact	Supports both light and dark switching modes for versatile integration
Operating Voltage	20 V AC/DC to 250 V AC/DC	Wide voltage range suitable for various automation systems
Power Consumption	< 2 VA	Low energy usage reduces overall operational cost
Housing Material	Zinc die-cast metal with PMMA optics	Delivers superior durability and resistance to vibration or impact
Protection Rating	IP67	Ensures reliable operation in dusty, humid, or wet environments
Connection Type	Terminal connection with M16 gland	Easy installation and secure wiring for industrial environments
Operating Temperature	–40 °C to +60 °C	Performs consistently in extreme temperature conditions
Switching Frequency	10 Hz	Stable signal transmission suitable for continuous operation
Adjustable Settings	Potentiometer for sensing range, Light/Dark selector	Simple configuration for different applications and environments
Certification	CE, UKCA, cULus, CCC, RoHS	Meets global standards for safety and environmental compliance
Mean Time to Failure (MTTFD)	509 years	Exceptional reliability and long service life

Download SICK WT24-2R210 (1016932) Datasheet

Commercial & Technical Data – SICK WT24-2R210: Article Number 1016932

Commercial Data	Details
EAN Number	4047084101076
Country of Origin	Hungary
Weight	403 g

The Applications of SICK WT24-2R210 Photoelectric Sensor

1. High-Speed Conveyor Bottle Detection

On automated bottling lines, precise detection of fast-moving containers is critical. The WT24-2R210 reliably identifies bottles of varying colors and materials using infrared background suppression, preventing false readings from conveyor reflections. Its rapid 10 ms response time allows it to keep pace with production speeds, while the 2.5 m detection range gives installation flexibility. Even in humid or glossy environments, it ensures stable performance, reducing line stoppages and improving quality control.

2. Pallet Height and Load Verification in Warehouses

In logistics centers, uneven or incomplete pallet loads can disrupt packaging or cause damage. The WT24-2R210 checks stacked boxes before wrapping by sensing the top layer precisely, regardless of color or material. Its robust zinc die-cast body withstands dust and vibration, while IP67 protection ensures reliable use around forklifts and conveyors. By eliminating missed or double detections, it enhances packaging accuracy and streamlines warehouse throughput.

3. Reflective Part Detection in Robotic Assembly

Robotic systems handling polished or metallic components often face errors due to glare or inconsistent surfaces. The WT24-2R210 resolves this challenge through infrared LED detection with background suppression, identifying shiny parts without interference. Operators can fine-tune sensitivity using the built-in potentiometer, ensuring consistent pickup points. Its fast response and rugged construction guarantee stable operation, minimizing downtime and maintaining precise robotic alignment during continuous shifts.

4. Transparent Film Positioning in Packaging Machines

In plastic film sealing or bag-forming machines, clear materials can confuse standard sensors. The WT24-2R210 detects transparent films by isolating the sensing zone and filtering out reflections from metal backgrounds. This maintains accurate feed control and prevents film misalignment or tearing. Mounted safely at a distance, it uses infrared light for consistent results even under high-temperature or reflective surfaces, improving process efficiency and reducing material waste.
