$ 177.10
Discover the SICK WTB16I-24161120A00 photoelectric sensor with IO-Link, precise background suppression, and durable IP69 housing for reliable detection.

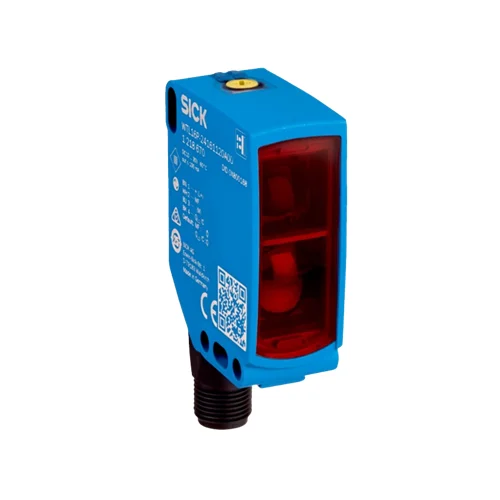

The SICK WTB16I-24161120A00 from the W16 family is a high-precision photoelectric proximity sensor designed to detect objects accurately even in complex industrial settings. Using infrared LED light with background suppression, it ensures dependable sensing from 10 mm up to 1,500 mm, unaffected by color or surface reflection. Its BluePilot Teach-Turn system allows quick setup and fine-tuning without tools. Engineered in a compact, durable housing, the sensor delivers consistent results in automation, packaging, and robotics applications, providing stability, reduced errors, and superior detection reliability for production environments.
Built for demanding industrial use, the WTB16I-24161120A00 combines rugged design and intelligent technology for maximum uptime. The VISTAL® housing and IP69 protection make it resistant to impact, vibration, and chemical cleaning, ensuring long service life. With IO-Link connectivity, users can monitor sensor health, optimize parameters, and enable predictive maintenance. Its fast 500 µs response and 1 kHz switching frequency allow precise detection on high-speed conveyors. The complementary push-pull PNP/NPN outputs add wiring flexibility, while the compact design simplifies integration into tight spaces—enhancing automation accuracy and operational efficiency across multiple industries.
Why SICK WTB16I-24161120A00?
Because it delivers unmatched precision and flexibility in one compact device. The SICK WTB16I-24161120A00 intelligently distinguishes objects from complex backgrounds using advanced suppression technology and a powerful infrared beam. Its quick BluePilot adjustment and IO-Link integration make setup effortless, ensuring consistent detection even in fast, reflective, or variable production environments.
What Problem Does It Solve?
It eliminates unreliable detection caused by background interference, color variation, or vibration. In industries where accuracy and speed are vital, this sensor ensures stable object recognition and reduces false triggers. By simplifying installation and enabling real-time monitoring, it prevents downtime, enhances quality control, and supports smart, connected automation systems.
| Feature | Details | Benefit |
|---|---|---|
| Functional Principle | Photoelectric proximity sensor with background suppression | Ensures precise detection without interference from reflective or colored backgrounds. |
| Sensing Range | 10 mm to 1,500 mm (recommended 100–600 mm) | Wide, adjustable range supports flexible use across multiple applications. |
| Light Source | Infrared LED, 850 nm wavelength | Provides consistent detection even in dusty or low-contrast environments. |
| Teach-Turn Adjustment | BluePilot system | Enables quick, tool-free setup and accurate range tuning. |
| Output Type | 2 x Push-pull (PNP/NPN), complementary | Offers wiring flexibility and easy integration into control systems. |
| Switching Frequency | Up to 1,000 Hz | Detects fast-moving objects with reliable repeatability. |
| Response Time | ≤ 500 µs | Supports high-speed automation processes. |
| Communication Interface | IO-Link V1.1 | Allows remote configuration, monitoring, and diagnostics for smart factory operations. |
| Housing Material | VISTAL® reinforced plastic | Provides high strength and chemical resistance for demanding industrial use. |
| Protection Class | IP66 / IP67 / IP69 (ISO 20653) | Designed to withstand vibration, shock, and washdown conditions. |
| Ambient Temperature Range | –40 °C to +60 °C | Operates reliably in extreme temperature environments. |
| Vibration & Shock Resistance | 10 Hz–2,000 Hz / 50 g | Maintains stability under dynamic or harsh mechanical conditions. |
| Electrical Supply Voltage | 10–30 V DC | Compatible with standard industrial power systems. |
| Display Indicators | Blue, Green, Yellow LEDs | Simplifies diagnostics with clear visual feedback. |
| Certifications | CE, cULus, ECOLAB, IO-Link Certified | Meets global safety and performance standards for quality assurance. |
Download SICK WTB16I-24161120A00 (1218669) Datasheet
| Commercial Data | Details |
|---|---|
| EAN Number | 4047084419294 |
| Weight | 71.9 g |
| Country of Origin | Germany |
In modern packaging plants, glossy or dark-colored film pouches often confuse conventional sensors. The WTB16I-24161120A00 excels here with its infrared LED and background suppression, detecting even low-reflective materials at high conveyor speeds. The fast 1 kHz switching frequency captures every passing item accurately, while its BluePilot adjustment simplifies sensor setup when product types or packaging materials change—reducing downtime and ensuring precise detection on mixed or reflective packaging lines.
In injection molding environments, robotic systems must recognize small plastic parts emerging from molds. The WTB16I sensor ensures precise part detection even when parts share the same color as their background. Its robust VISTAL® housing withstands vibration, heat, and cleaning agents, while IO-Link communication enables live monitoring for predictive maintenance. This combination minimizes false triggers, boosts handling accuracy, and keeps robotic operations running efficiently in demanding industrial conditions.
Sorting bottles or containers of varying colors and finishes can be challenging due to reflections and transparency differences. The WTB16I-24161120A00 overcomes these issues with its focused infrared light spot and adaptive background suppression, ensuring accurate detection of both clear and opaque containers. The sensor’s high response speed supports continuous sorting, while its compact body fits easily into automated systems—enhancing accuracy, reducing sorting errors, and maintaining consistent flow in logistics and recycling facilities.
Food production lines require reliable sensors that resist cleaning chemicals and water jets. The WTB16I’s IP69-rated enclosure and chemical-resistant design make it ideal for tray detection before filling operations. Its infrared beam reliably detects trays even on shiny wet surfaces, while the Teach-Turn setup allows fast reconfiguration for different tray sizes. This ensures smooth filling sequences, reduces stoppages, and maintains hygiene compliance in demanding washdown environments.
| Category | Model / Accessory Name | Part Number | Benefit / Usage |
|---|---|---|---|
| Mounting Bracket (Adjustable) | BEF-WN-MULTI2 | 2093945 | Enables flexible positioning of the WTB16I sensor for precise alignment and stable installation. |
| Universal Clamp Plate (Type N02) | BEF-KHS-N02 | 2051608 | Provides sturdy mounting and adaptability for various installation surfaces. |
| Large Mounting Bracket | BEF-WG-W12 | 2013942 | Ideal for heavy-duty environments, ensuring vibration-resistant sensor mounting. |
| Adapter for Legacy Mounting | BEF-AP-W16 | 2095677 | Simplifies sensor upgrades without modifying existing equipment. |
| Universal Clamp Plate (Type N11N) | BEF-KHS-N11N | 2071081 | Designed for durable use in hygienic or corrosive applications. |
| Sensor Cable (PVC) | YF2A14-050VB3XLEAX | 2096235 | General-purpose connection cable suitable for clean environments. |
| Sensor Cable (PUR) | YF2A14-050UB3XLEAX | 2095608 | Flexible, halogen-free cable for robotics and drag-chain use; resists oils and lubricants. |
