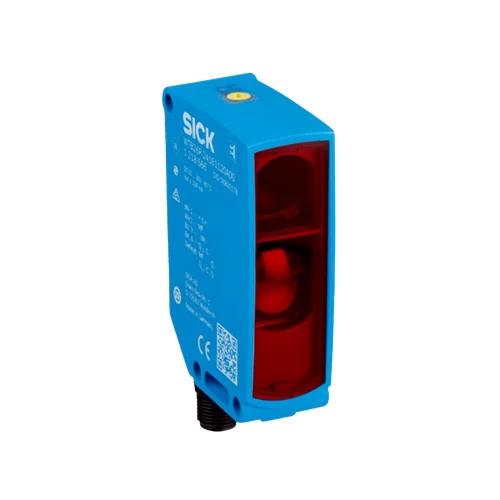

SICK WTB26I-24161420A00 Photoelectric Sensor

SICK WTB26I-24161420A00 Photoelectric Sensor with Background Suppression

The SICK WTB26I-24161420A00 Photoelectric Sensor delivers precise object detection for industrial automation environments. It operates using infrared LED technology with reliable background suppression, ensuring consistent performance even when working near reflective surfaces or irregular backgrounds. With a maximum sensing range of 3,000 mm and the BluePilot Teach-Turn adjustment feature, setup is quick and accurate. The sensor’s rugged VISTAL® housing and IP69 protection make it suitable for demanding applications involving frequent washdowns, vibration, or harsh conditions, such as packaging, assembly, and conveyor-based material handling systems.

Designed for performance and simplicity, the WTB26I-24161420A00 integrates IO-Link communication for smart configuration, monitoring, and real-time diagnostics. It features dual PNP/NPN push-pull outputs for easy adaptation to various control systems and supports built-in logic functions like AND, OR, and delay timers to reduce reliance on external controllers. The BluePilot LED guidance system simplifies alignment and reduces setup time, ensuring optimal accuracy in production lines. Its robust build and intelligent signal processing deliver stable detection of objects with different shapes, colors, and materials—maximizing uptime and productivity in modern automated facilities.

Why SICK WTB26I-24161420A00?
Because it blends intelligent sensing, easy setup, and rugged durability into one compact device. The WTB26I-24161420A00 stands out for its BluePilot alignment system, smart IO-Link connectivity, and 3,000 mm precision range—making it the go-to sensor for engineers who demand performance, flexibility, and reliability in every industrial environment.

What problem does it solve?
It eliminates false detections, unstable readings, and lengthy sensor adjustments common in fast-moving production lines. By using advanced background suppression and adaptive optical design, it ensures consistent detection of shiny, dark, or irregular objects—solving the challenge of precision sensing in harsh, high-speed industrial conditions where accuracy truly matters.

Key Features & Specifications – SICK WTB26I-24161420A00 (Part No. 1222711)

Download SICK WTB26I-24161420A00 (1222711) Datasheet

Commercial Data – SICK WTB26I-24161420A00 (Part No. 1222711)

The Applications

1. Automated Storage & Retrieval Systems

In large warehouse environments, objects such as cartons or bins move rapidly across conveyors or lift systems. The WTB26I-24161420A00 excels in this scenario due to its 3,000 mm sensing range and precise background suppression, ensuring the sensor focuses only on the target item and not the rack or background. Its infrared LED beam remains stable even when scanning dark, glossy, or metallic packages. By using IO-Link connectivity, operators gain instant feedback and easy integration with warehouse control systems, improving flow efficiency and reducing false triggers during continuous operation.

2. High-Speed Packaging Line Inspection

On fast-moving packaging machines, reflective films and bright surfaces can cause false readings. The BluePilot Teach-Turn adjustment on the WTB26I-24161420A00 allows technicians to fine-tune detection distance within seconds, ensuring accurate presence verification even for transparent or shiny materials. With a switching frequency up to 200 Hz, the sensor keeps up with high throughput lines. Built-in logic functions such as delay timers and window detection simplify control tasks without extra devices, enhancing precision and reducing setup time across multiple packaging stations.

3. Robotic Assembly and Gripper Feedback

In automated assembly cells, robot grippers must detect small or irregular components before handling them. The WTB26I-24161420A00 provides stable detection regardless of material or finish, whether matte plastic or polished metal. Its dual PNP/NPN outputs and compact VISTAL® housing make it easy to mount on moving parts without adding weight. With IO-Link diagnostics, operators can monitor detection quality and alignment in real time, helping robots operate faster with fewer mis-picks or alignment errors—essential in precision-driven industries like automotive and electronics.

4. Pallet and Container Detection for Mobile Platforms

Automated guided vehicles and robotic shuttles rely on accurate object recognition while operating in varying light conditions. The IP69-rated WTB26I-24161420A00 is built for such demanding tasks, enduring vibration, dust, and frequent cleaning. Its infrared optical system maintains consistent readings outdoors or in dimly lit areas. The sensor easily detects pallets and containers even when surfaces are uneven or wet. Through real-time IO-Link data, maintenance teams can track sensor health and adjust performance remotely, ensuring uninterrupted logistics flow and minimal downtime.
