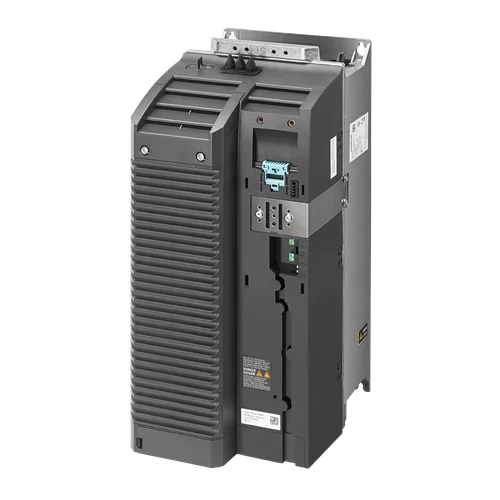

Siemens SINAMICS PM240-2 37kW Power Module

Technical Overview

380-480V 3AC variable frequency drive with 30kW HO / 37kW LO output, integrated Class A filter, and braking chopper. IP20 rated.

Key Features

Dual overload capability: 30kW (High Overload) and 37kW (Low Overload) for versatile application.
Wide input voltage range of 3AC 380-480V for global applicability.
Integrated Class A filter reduces electromagnetic interference (EMI).
Built-in braking chopper enables energy dissipation during deceleration.
IP20 protection for reliable operation in industrial environments.
Compact form factor (472x200x237 mm) for space-saving cabinet installation.
Compatible with various Siemens SINAMICS control units and operator panels.
Operates reliably across a wide ambient temperature range (-20 to +50 °C).

Technical Specification Matrix

Parameter	Value
Input Voltage	3AC 380-480V ±10%
Line Frequency	47-63 Hz
Rated Power (High Overload)	30 kW (40 HP)
Rated Power (Low Overload)	37 kW (50 HP)
Rated Current (High Overload)	60.00 A
Rated Current (Low Overload)	75.00 A
Max. Output Current	120.00 A
Pulse Frequency	4 kHz
Output Frequency (Vector Control)	0-200 Hz
Output Frequency (V/f Control)	0-550 Hz
Overload Capability (LO)	110% for 57s (cycle time 300s), 150% for 3s (cycle time 300s)
Overload Capability (HO)	150% for 57s (cycle time 300s), 200% for 3s (cycle time 300s)
Power Factor λ	0.95
Efficiency η	0.98
Sound Pressure Level (1m)	72 dB
Power Loss	1.02 kW
Filter Class (Integrated)	Class A
Cooling	Internal air cooling
Cooling Air Requirement	0.055 m³/s
Installation Altitude	1,000 m
Ambient Temperature (Operation LO)	-20 to +40 °C
Ambient Temperature (Operation HO)	-20 to +50 °C
Ambient Temperature (Transport/Storage)	-25 to +55 °C
Relative Humidity (Max. operation)	95 % RH, non-condensing
Degree of Protection	IP20 / UL open type
Compliance with standards	UL, cUL, CE, C-Tick (RCM), SEMI F47
Physical Weight (kg)	18.3
Dimensions L x W x H (cm)	49.5 x 35.6 x 30

Industrial Applications

1. Conveyor Systems in Material Handling

This power module is ideal for controlling high-power conveyor belt motors in logistics centers or manufacturing plants, especially where heavy loads require frequent starts/stops and precise speed control.

Problem Solved

The integrated braking chopper efficiently dissipates regenerative energy during rapid deceleration or stopping of heavy conveyor belts, preventing DC bus overvoltage and enhancing system safety. The dual overload capability allows it to handle peak loads during startup or sudden load changes, ensuring smooth and reliable material flow.

Variable Frequency DriveRegenerative BrakingMaterial HandlingConveyor ControlOverload Protection30kW Motor

2. Pump and Fan Control in HVAC Systems for Large Buildings

Suitable for driving large pumps and industrial fans in heating, ventilation, and air conditioning (HVAC) systems of commercial buildings or industrial facilities, where efficient fluid/air movement and energy savings are critical.

Problem Solved

The VFD's ability to vary motor speed precisely (0-550 Hz V/f control) allows for optimized flow/pressure control, leading to significant energy savings compared to direct-on-line starters. The integrated Class A filter ensures electromagnetic compatibility (EMC) in sensitive building environments, reducing interference with other electronic equipment. Its robust design (IP20) is suitable for cabinet installation.

HVACPump ControlFan DrivesEnergy EfficiencyVariable Speed DriveEMC Filtering37kW Motor

3. Packaging Machinery Motor Control

This power module can be employed in sophisticated packaging machines requiring dynamic and precise control of various axes, such as those for filling, sealing, or labeling processes.

Problem Solved

The high overload capability (up to 200% for 3s) allows for rapid acceleration and deceleration cycles common in packaging lines, ensuring high throughput and accuracy. The wide output frequency range (up to 550 Hz for V/f control) supports diverse motor types and operational speeds. Its compact size facilitates integration into complex machine architectures.

Packaging AutomationMotor ControlHigh OverloadDynamic ResponseVariable Frequency DriveMachine Integration
