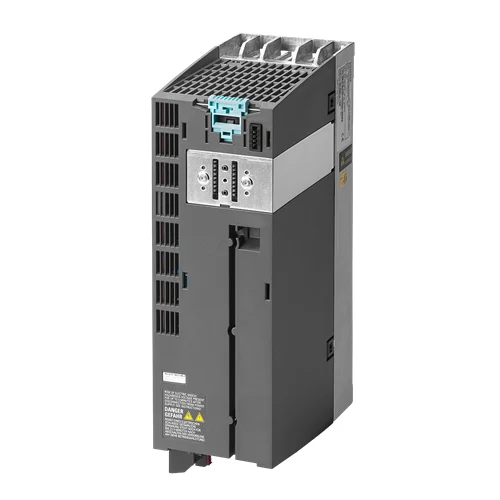

Siemens SINAMICS PM240-2 Power Module 2.2kW_3.0kW

Technical Overview

Modular Power Module for SINAMICS G120, offering 2.2kW (HO)/3.0kW (LO) output, 1/3AC 200-240V input, IP20 protection, and integrated braking chopper.

Key Features

Part of the SINAMICS G120 modular converter system.
Features an integrated braking chopper.
Provides high dynamic performance for precision control.
Modular and compact design allows for flexible integration.
Includes integrated protection and diagnostic functions.
Suitable for safety-oriented applications when combined with a fail-safe Control Unit.
Employs internal air cooling for efficient heat dissipation.
Complies with international standards including UL, cUL, and CE.

Technical Specification Matrix

Parameter	Value
Input Voltage	1/3 AC 200-240 V ±10%
Line Frequency	47-63 Hz
Output Voltage	3 AC 230V IEC / 240V NEC
Rated Power (Low Overload - LO)	3.00 kW (4.00 hp)
Rated Power (High Overload - HO)	2.20 kW (3.00 hp)
Rated Output Current (LO)	13.60 A
Rated Output Current (HO)	10.40 A
Max. Output Current	20.80 A
Pulse Frequency	4 kHz
Output Frequency (Vector Control)	0-200 Hz
Output Frequency (V/f Control)	0-550 Hz
Overload Capability (LO)	110% for 57s (cycle time 300s), 150% for 3s (cycle time 300s)
Overload Capability (HO)	150% for 57s (cycle time 300s), 200% for 3s (cycle time 300s)
Power Factor λ	0.85
Offset Factor cos φ	0.95
Efficiency η	0.96
Sound Pressure Level (1m)	65 dB
Power Loss	0.14 kW
Cooling Method	Internal air cooling
Cooling Air Requirement	0.018 m³/s (0.653 ft³/s)
Installation Altitude	1,000 m (3,280.84 ft)
Operating Temperature (LO)	-10 to +40 °C (14 to 104 °F)
Operating Temperature (HO)	-10 to +50 °C (14 to 122 °F)
Storage/Transport Temperature	-25 to +55 °C (-13 to 131 °F)
Relative Humidity (Max. Operation)	95 % RH, non-condensing
Line Side Connections	Plug-in screw terminals
Degree of Protection	IP20 / UL open type
Integrated Brake Chopper	Yes
Certifications	UL, cUL, CE, C-Tick (RCM), SEMI F47
Physical Weight (kg)	4.7
Dimensions L x W x H (cm)	18.5 x 15.7 x 44
