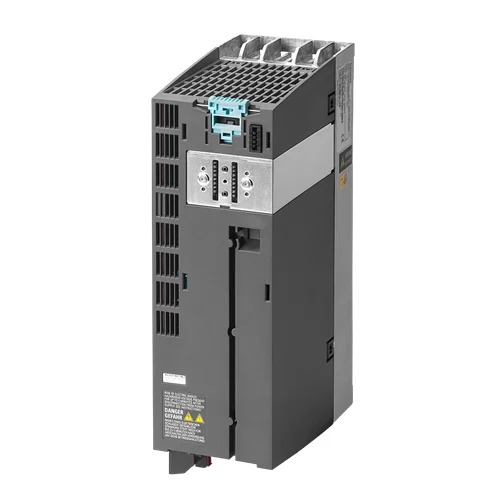

Siemens SINAMICS PM240-2 Power Module 380-480V 2.2kW

Technical Overview

3-phase AC Power Module with 380-480V input, 2.2kW (LO) / 1.5kW (HO) output, integrated Class A filter & braking chopper. IP20 rated for cabinet installation.

Key Features

Part of the modular SINAMICS G120 converter system.
Integrated Class A filter.
Integrated braking chopper for four-quadrant applications.
Suitable for 3-phase AC, 380-480 V ±10% input.
Rated power of 2.2 kW (LO) and 1.5 kW (HO).
Degree of protection IP20 / UL open type.
Internal air cooling.
Designed for installation in control cabinets.
Flexible combination with various Control Units (e.g., CU230-2, CU240x-2, CU250S-2).
Supports vector control (0-200 Hz) and V/f control (0-550 Hz).
Overload capability: 110% for 57s (LO), 150% for 57s (HO) with a cycle time of 300s.

Technical Specification Matrix

Parameter	Value
Number of Phases	3 AC
Mains Voltage	380 ... 480 V ±10%
Line Frequency	47 ... 63 Hz
Rated Current (Low Overload)	7.70 A
Rated Current (High Overload)	6.10 A
Rated Power (Low Overload)	2.20 kW / 3.00 hp
Rated Power (High Overload)	1.50 kW / 2.00 hp
Output Current (Low Overload)	5.90 A
Output Current (High Overload)	4.10 A
Max. Output Current	8.90 A
Pulse Frequency	4 kHz
Output Frequency (Vector Control)	0 ... 200 Hz
Output Frequency (V/f Control)	0 ... 550 Hz
Power Factor λ	0.85
Offset Factor cos φ	0.95
Efficiency η	0.96
Sound Pressure Level (1m)	72 dB
Power Loss	0.10 kW
Integrated Filter Class	Class A
Cooling	Internal air cooling
Installation Altitude	1,000 m (3,280.84 ft)
Ambient Temperature (Operation Low Overload)	-10 ... 40 °C (14 ... 104 °F)
Ambient Temperature (Operation High Overload)	-10 ... 50 °C (14 ... 122 °F)
Relative Humidity (Max. Operation)	95 % RH, condensation not permitted
Degree of Protection	IP20 / UL open type
Line Side Connection Type	Plug-in screw terminals
Conductor Cross-section	1.50 ... 2.50 mm² (AWG 16)
Physical Weight (kg)	1.5
Dimensions L x W x H (cm)	18.5 x 9 x 28

Industrial Applications

1. Conveyor Belt Speed Control in Manufacturing

This power module can precisely control the speed of a 2.2 kW (LO) three-phase AC motor driving a conveyor belt system in a factory. The adjustable output frequency (0-550 Hz V/f control) allows for fine-tuning of material flow, while the IP20 rating requires it to be mounted within an existing control cabinet, which is standard for manufacturing environments. The integrated braking chopper efficiently handles deceleration.

Problem Solved

Enables variable speed control for optimal production rates and energy efficiency, adapting to different product types or stages, and the integrated braking chopper handles deceleration quickly and safely.

Variable Frequency Drive (VFD)Conveyor SystemsMotor Control3-Phase AC2.2 kWIP20Braking ChopperV/f control

2. Pump Control in HVAC Systems for Commercial Buildings

The SINAMICS PM240-2 can manage a 1.5 kW (HO) pump motor, adjusting its speed based on demand in a building's heating, ventilation, and air conditioning (HVAC) system. Its 380-480V input and integrated Class A filter make it suitable for typical commercial power grids, and its IP20 rating is appropriate for installation inside an electrical panel.

Problem Solved

Optimizes energy consumption by only running pumps at the necessary speed to maintain desired flow rates or pressures, reducing wear and tear on mechanical components, and providing precise control for comfort and efficiency.

HVACPump ControlEnergy EfficiencyVariable Speed Pump3-Phase AC1.5 kWIP20Class A Filter

3. Industrial Mixer/Agitator Speed Regulation in Chemical Processing

For small to medium-sized industrial mixers or agitators in chemical processing, this 2.2 kW power module can provide reliable and precise speed regulation for a 3-phase AC motor. The ability to handle high overload conditions (150% for 57s) is crucial for starting viscous mixtures, and its internal air cooling is adequate for controlled process environments when properly integrated into a cabinet.

Problem Solved

Allows for precise control over mixing intensity and duration, which is critical for product quality and consistency in chemical formulations, while the overload capability ensures robust operation even with challenging material properties.

Industrial MixerAgitatorProcess ControlVariable Speed Drive3-Phase AC2.2 kWOverload CapabilityIP20
