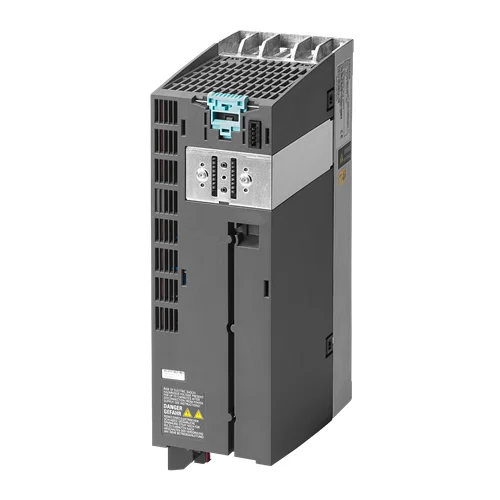

Siemens SINAMICS PM240-2 Power Module 3kW

Technical Overview

3kW 3-phase PM240-2 Power Module with integrated Class A filter and braking chopper. 380-480V input, IP20, FSA frame, for SINAMICS G120 systems.

Key Features

Designed for SINAMICS G120 systems, compatible with control units with firmware V4.6 or higher.
Offers both Low Overload (3kW) and High Overload (2.2kW) capabilities for flexible load profiles.
IP20 protection rating for general industrial environments.
Internal air cooling system.
Space-saving Frame Size A (FSA) design.
Supports 3-phase 380-480V input voltage.

Technical Specification Matrix

Parameter	Value
Input Voltage	3 AC, 380-480 V ±10%
Line Frequency	47-63 Hz
Rated Power (Low Overload - LO)	3.00 kW (4.00 hp)
Rated Current (LO)	7.70 A
Rated Power (High Overload - HO)	2.20 kW (3.00 hp)
Rated Current (HO)	5.90 A
Max. Output Current	11.80 A
Output Voltage	3 AC, 400V IEC, 480V NEC
Pulse Frequency	4 kHz
Output Frequency (Vector Control)	0-200 Hz
Output Frequency (V/f Control)	0-550 Hz
Overload Capability (LO)	110 % for 57 s, 150 % for 3 s (300 s cycle time)
Overload Capability (HO)	150 % for 57 s, 200 % for 3 s (300 s cycle time)
Power Factor λ	0.85
Offset Factor cos φ	0.95
Efficiency η	0.96
Sound Pressure Level (1m)	72 dB
Power Loss	0.12 kW
Filter Class (integrated)	Class A
Cooling	Internal air cooling
Cooling Air Requirement	0.005 m³/s
Installation Altitude	1,000 m
Ambient Temperature (Operation LO)	-10 to 40 °C (14 to 104 °F)
Ambient Temperature (Operation HO)	-10 to 50 °C (14 to 122 °F)
Ambient Temperature (Transport/Storage)	-25 to 55 °C (-13 to 131 °F)
Relative Humidity (Max. Operation)	95 % RH, condensation not permitted
Connections (Line side)	Plug-in screw terminals
Conductor Cross-section (Line side)	1.50 - 2.50 mm² (AWG 16)
Degree of Protection	IP20 / UL open type
Compliance with standards	UL, cUL, CE, C-Tick (RCM), SEMI F47
Physical Weight (kg)	1.5
Dimensions L x W x H (cm)	18.5 x 9 x 28

Industrial Applications

1. High-Speed Conveyor Systems with Frequent Stops/Starts

This power module is ideally suited for controlling motors in conveyor systems that require frequent acceleration and deceleration cycles. The integrated braking chopper efficiently dissipates regenerative energy, preventing component damage and ensuring smooth, controlled stops. The Class A filter minimizes electromagnetic interference, crucial for reliable operation in complex industrial environments.

Problem Solved

Prevents overheating and damage from regenerative energy during frequent braking, while maintaining stable operation and complying with electromagnetic compatibility standards in high-dynamic applications.

Regenerative brakingdynamic controlhigh overloadEMC compliancevariable speedconveyor systems

2. Industrial Pump and Fan Control in General Purpose Applications

The 3kW low overload rating and internal air cooling make this module perfect for continuous duty applications such as industrial pumps and fans. Its IP20 rating ensures protection against solid objects when installed within a control cabinet, while the wide operating temperature range of -10 to 50 °C guarantees reliable performance in typical factory environments.

Problem Solved

Provides precise speed control for pumps and fans, reducing energy consumption and wear, while operating reliably within typical industrial temperature ranges and protecting internal components from dust ingress when cabinet-mounted.

Variable frequency driveenergy efficiencyprocess controlIP20temperature stabilitycontinuous operationpump controlfan control

3. Material Handling Equipment with Precise Positioning

For applications like cranes, hoists, and automated guided vehicles (AGVs) that demand precise torque and speed control for lifting and positioning, this power module excels. Its support for vector control (0-200 Hz) combined with robust overload capabilities and the integrated braking chopper enables accurate, smooth motion and safe, controlled lowering of heavy loads.

Problem Solved

Enables accurate and smooth control of motor speed and torque for lifting and moving heavy materials, with safe and efficient deceleration, reducing mechanical stress and improving operational safety and precision.

Torque controlvector controllifting applicationsbraking chopperprecise positioningmaterial handlinghoistscranes
