Siemens SINAMICS PM240-2 Power Module 4kW_5.5kW 240V

Technical Overview

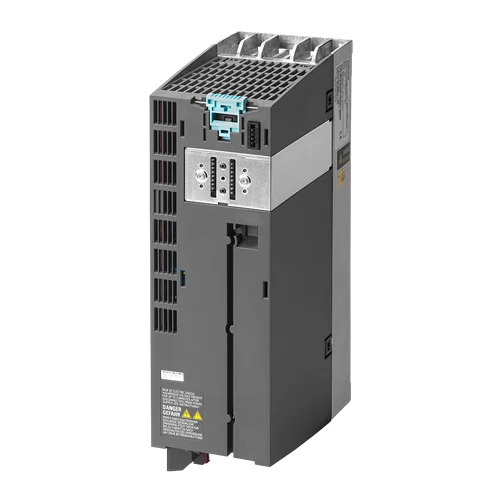

Siemens SINAMICS PM240-2 Power Module for 3AC 200-240V input, delivering 4kW (HO) / 5.5kW (LO) output with built-in braking chopper. IP20, 355x140x165mm.

Key Features

3-phase input voltage of 200-240V (+10% / -10%)
Dual-rating capability: 4.00 kW (High Overload) and 5.50 kW (Low Overload)
Integrated braking chopper for managing regenerative energy
IP20 / UL open type degree of protection
Compact FSC frame size (355 x 140 x 165 mm) for space-efficient installation
Operates in ambient temperatures up to +50°C (HO) or +40°C (LO)
Unfiltered module, suitable where external filtering is preferred or not required
Approved for Control Unit (CU) firmware-version V4.6

Technical Specification Matrix

Parameter	Value
Input Voltage	3AC 200-240V ±10%
Line Frequency	47-63 Hz
Rated Power (Low Overload LO)	5.50 kW / 7.50 hp
Rated Power (High Overload HO)	4.00 kW / 5.00 hp
Rated Output Current (LO)	22.00 A
Rated Output Current (HO)	17.50 A
Max. Output Current	35.00 A
Output Frequency (Vector Control)	0-200 Hz
Output Frequency (V/f Control)	0-550 Hz
Pulse Frequency	4 kHz
Overload Capability (LO)	110% for 57s, 150% for 3s (within 300s cycle)
Overload Capability (HO)	150% for 57s, 200% for 3s (within 300s cycle)
Efficiency η	0.97
Power Loss	0.20 kW
Degree of Protection	IP20 / UL open type
Frame Size	FSC
Operating Temperature (LO)	-10 to 40 °C
Operating Temperature (HO)	-10 to 50 °C
Physical Weight (kg)	4.7
Dimensions L x W x H (cm)	18.5 x 15.7 x 44

Industrial Applications

1. Dynamic Conveyor Systems with Frequent Starts/Stops

This power module is ideal for controlling motors in conveyor systems that require frequent acceleration, deceleration, and precise positioning. The 4kW High Overload rating (200% for 3s, 150% for 57s) ensures robust performance during intermittent heavy loads, while the built-in braking chopper efficiently dissipates regenerative energy, extending motor lifespan and improving system safety.

Problem Solved

Prevents motor and drive damage from high inertia loads and frequent braking cycles, ensuring smooth and controlled material handling.

High OverloadBraking ChopperDynamic ControlConveyor

2. Energy-Efficient HVAC and Pumping Systems

For industrial heating, ventilation, air conditioning (HVAC) systems, and pump applications, this module enables precise variable speed control. The 5.5kW Low Overload rating supports continuous operation with varying fluid or airflow demands, and the 0-550 Hz V/f control output frequency allows for fine-tuning of motor speed, leading to significant energy savings and optimized process control.

Problem Solved

Optimizes energy consumption and operational efficiency by adjusting motor speed to match demand, rather than running at constant full speed.

Low OverloadVariable SpeedEnergy EfficiencyPumpsFans

3. Compact Machine Integration with Custom Filtering Needs

The compact FSC frame size (355 x 140 x 165 mm) makes this power module suitable for integration into control cabinets with limited space, often found in smaller machines or distributed automation setups. Its unfiltered design provides flexibility for engineers to select external filtering solutions tailored to specific electromagnetic compatibility (EMC) requirements of the installation environment.

Problem Solved

Addresses space constraints in industrial cabinets and offers flexibility for application-specific filtering, reducing overall system footprint and cost for specialized environments.

Compact DesignIP20UnfilteredCabinet Integration
