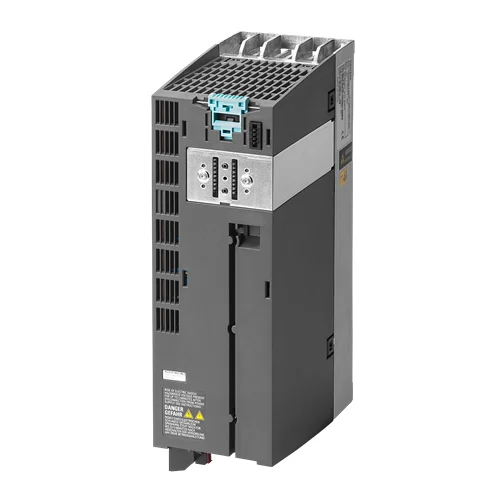

Siemens SINAMICS PM240-2 Power Module 5.5-7.5kW

Technical Overview

3-phase, 200-240V AC power module with integrated braking chopper, 5.5-7.5kW, IP20, for precise variable-speed motor control.

Key Features

Provides precise motor control in industrial automation systems.
Built-in braking chopper for energy efficiency and smooth deceleration.
High and low overload ratings allow flexible application.
Operates without external filter, reducing installation complexity.
Robust design ensures long-term reliability.
Compact & Space-Saving Design, optimized for industrial setups with limited space.
Enhanced Safety: IP20 protection reduces risk in high-performance environments.
Flexible Ambient Operation: Suitable for -10°C to +50°C operating conditions.
Industrial Compatibility: Approved for Siemens CU firmware v4.6, ensuring seamless integration.
Modular design for scalable systems.
Energy-efficient and precise control.

Technical Specification Matrix

Parameter	Value
Input Number of phases	3 AC
Line voltage	200 ... 240 V ±10 %
Line frequency	47 ... 63 Hz
Rated input current (Low Overload)	37.00 A
Rated input current (High Overload)	33.00 A
Output Number of phases	3 AC
Rated output voltage	230V IEC, 240V NEC
Rated output power (Low Overload)	7.50 kW (10.00 hp)
Rated output power (High Overload)	5.50 kW (7.50 hp)
Rated output current (Low Overload)	28.00 A
Rated output current (High Overload)	22.00 A
Max. output current	44.00 A
Pulse frequency	4 kHz
Output frequency for vector control	0 ... 200 Hz
Output frequency for V/f control	0 ... 550 Hz
Overload capability (Low Overload)	110 % for 57 s (cycle time 300 s); 150 % for 3 s (cycle time 300 s)
Overload capability (High Overload)	150 % for 57 s (cycle time 300 s); 200 % for 3 s (cycle time 300 s)
Power factor λ	0.85
Offset factor cos φ	0.95
Efficiency η	0.97
Sound pressure level (1m)	65 dB
Power loss	0.26 kW
Cooling	Internal air cooling
Cooling air requirement	0.018 m³/s (0.653 ft³/s)
Installation altitude	1,000 m (3,280.84 ft)
Ambient operating temperature (Low Overload)	-10 ... 40 °C (14 ... 104 °F)
Ambient operating temperature (High Overload)	-10 ... 50 °C (14 ... 122 °F)
Ambient transport/storage temperature	-25 ... 55 °C (-13 ... 131 °F)
Relative humidity (Max. operation)	95 % RH, non-condensing
Degree of protection	IP20 / UL open type
Physical Weight (kg)	4.8
Dimensions L x W x H (cm)	18.5 x 15.7 x 44

Industrial Applications

1. Conveyor Systems with Frequent Starts/Stops

This power module is ideal for controlling motors in conveyor systems found in manufacturing or logistics. Its precise motor control and integrated braking chopper allow for accurate positioning and smooth deceleration, which is crucial for handling goods on a production line or sorting facility. The high overload capability (up to 200% for 3s) handles peak loads during acceleration, and the integrated braking chopper efficiently dissipates regenerative energy during frequent stops.

Problem Solved

Prevents damage to products from abrupt stops and starts, enables precise material handling, and dissipates regenerative energy during frequent braking cycles, improving system efficiency and safety in demanding conveyor applications.

Variable speed driveBraking chopperMaterial handlingConveyorRegenerative brakingMotor controlHigh overload capability

2. Pump and Fan Applications in HVAC or Water Treatment

The module's high efficiency (η=0.97) and ability to operate reliably within a wide ambient temperature range of -10 to 50 °C make it highly suitable for controlling pumps and fans in industrial HVAC systems or water/wastewater treatment plants. The variable speed control allows precise adjustment of flow or air volume based on demand.

Problem Solved

Optimizes energy consumption by precisely matching pump/fan speed to demand, reduces wear and tear on mechanical components, and ensures stable fluid/air flow in demanding industrial environments while operating efficiently across a broad temperature range.

Variable frequency driveEnergy efficiencyHVACPumpingFan controlProcess controlWide operating temperature

3. Small Machine Tools or Packaging Machinery

With its compact design (140x355x165 mm) and excellent high/low overload capabilities, this power module can efficiently drive motors in small machine tools (e.g., milling, drilling) or packaging machines where space is often limited and intermittent peak loads are common. The IP20 rating ensures safe installation within control cabinets.

Problem Solved

Provides robust and precise motor control for fast, repetitive motions, handles dynamic loads during cutting, forming, or packaging operations, and fits into space-constrained industrial machinery, contributing to higher throughput and product quality in a safely enclosed environment.

Machine automationMotion controlPackaging machineryOverload capacityCompact designIP20 enclosurePrecision control
