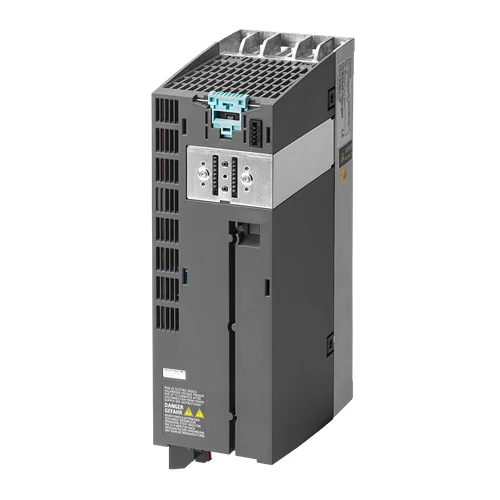

Siemens SINAMICS PM240-2 Power Module 5.5kW

Technical Overview

3AC 380-480V Power Module with 5.5kW (LO) / 4kW (HO) rated power, integrated Class A filter, braking chopper, and IP20 protection.

Key Features

3-phase AC input voltage 380-480 V ±10%
Rated power Low Overload (LO): 5.5 kW (7.5 hp)
Rated power High Overload (HO): 4.0 kW (5.0 hp)
Integrated Class A line filter
Built-in braking chopper
IP20 protection / UL open type
Internal air cooling
Low Overload (LO) capability: 110% for 57s, 150% for 3s within a 300s cycle time
High Overload (HO) capability: 150% for 57s, 200% for 3s within a 300s cycle time
Output frequency for V/f control: 0-550 Hz
Output frequency for vector control: 0-200 Hz

Technical Specification Matrix

Parameter	Value
Number of Phases	3 AC
Line Voltage	380 ... 480 V ±10%
Line Frequency	47 ... 63 Hz
Rated Current (LO)	17.20 A
Rated Current (HO)	15.30 A
Rated Power (LO)	5.50 kW
Rated Power (HO)	4.00 kW
Output Current (LO)	13.20 A
Output Current (HO)	10.20 A
Max. Output Current	20.40 A
Pulse Frequency	4 kHz
Output Frequency (Vector Control)	0 ... 200 Hz
Output Frequency (V/f Control)	0 ... 550 Hz
Degree of Protection	IP20 / UL open type
Efficiency η	0.97
Power Factor λ	0.85
Offset Factor cos φ	0.95
Sound Pressure Level (1m)	72 dB
Power Loss	0.15 kW
Integrated Filter Class	Class A
Cooling	Internal air cooling
Cooling Air Requirement	0.009 m³/s
Installation Altitude	1,000 m
Ambient Temperature (Operation LO)	-10 ... 40 °C
Ambient Temperature (Operation HO)	-10 ... 50 °C
Relative Humidity (Max. Operation)	95 % RH, condensation not permitted
Physical Weight (kg)	3.1
Dimensions L x W x H (cm)	18.5 x 11.4 x 36.5

Industrial Applications

1. Conveyor Belt Systems with Frequent Starts/Stops

This power module is ideal for controlling conveyor belts in manufacturing or logistics, especially those requiring frequent acceleration and deceleration cycles. Its robust overload capabilities (e.g., 150% for 57s, 200% for 3s for HO rated power) handle high starting torques and braking energy associated with moving heavy loads or stopping quickly.

Problem Solved

Prevents motor and drive damage due to high inertial loads and frequent stops, ensuring smooth and reliable material transport. The integrated braking chopper also dissipates excess energy during deceleration, protecting the system.

Motor controlVariable Frequency DriveOverload CapabilityBraking ChopperConveyor SystemsMaterial HandlingStart/Stop CyclesInertia

2. Fan and Pump Control in HVAC/Water Treatment

The module can efficiently control variable speed fans in large HVAC systems or pumps in water/wastewater treatment plants. The 3-phase, 380-480V input and 5.5 kW (LO) / 4 kW (HO) rated power are suitable for medium-sized industrial motors. Its high efficiency (0.97) and internal air cooling make it suitable for continuous operation in plant environments.

Problem Solved

Optimizes energy consumption by precisely matching motor speed to demand, reducing wear on mechanical components, and providing stable flow/pressure control. The Class A filter helps maintain power quality.

Variable Speed DriveHVACPump ControlFan ControlEnergy Efficiency3-Phase MotorWater TreatmentAir CoolingPower Quality

3. Textile Machinery and Extruders

For applications requiring precise speed and torque control, such as textile machines (e.g., spinning, weaving) or plastic extruders. The vector control capabilities (0-200 Hz) allow for fine adjustment of motor speed, which is crucial for product quality and process consistency. The IP20 rating is suitable for installation within control cabinets in typical industrial settings.

Problem Solved

Ensures high precision in manufacturing processes by maintaining constant speed or torque under varying loads, leading to consistent product quality and reduced waste.

Vector ControlTorque ControlSpeed ControlTextile IndustryExtrusionManufacturing ProcessIP20Control Cabinet Integration
